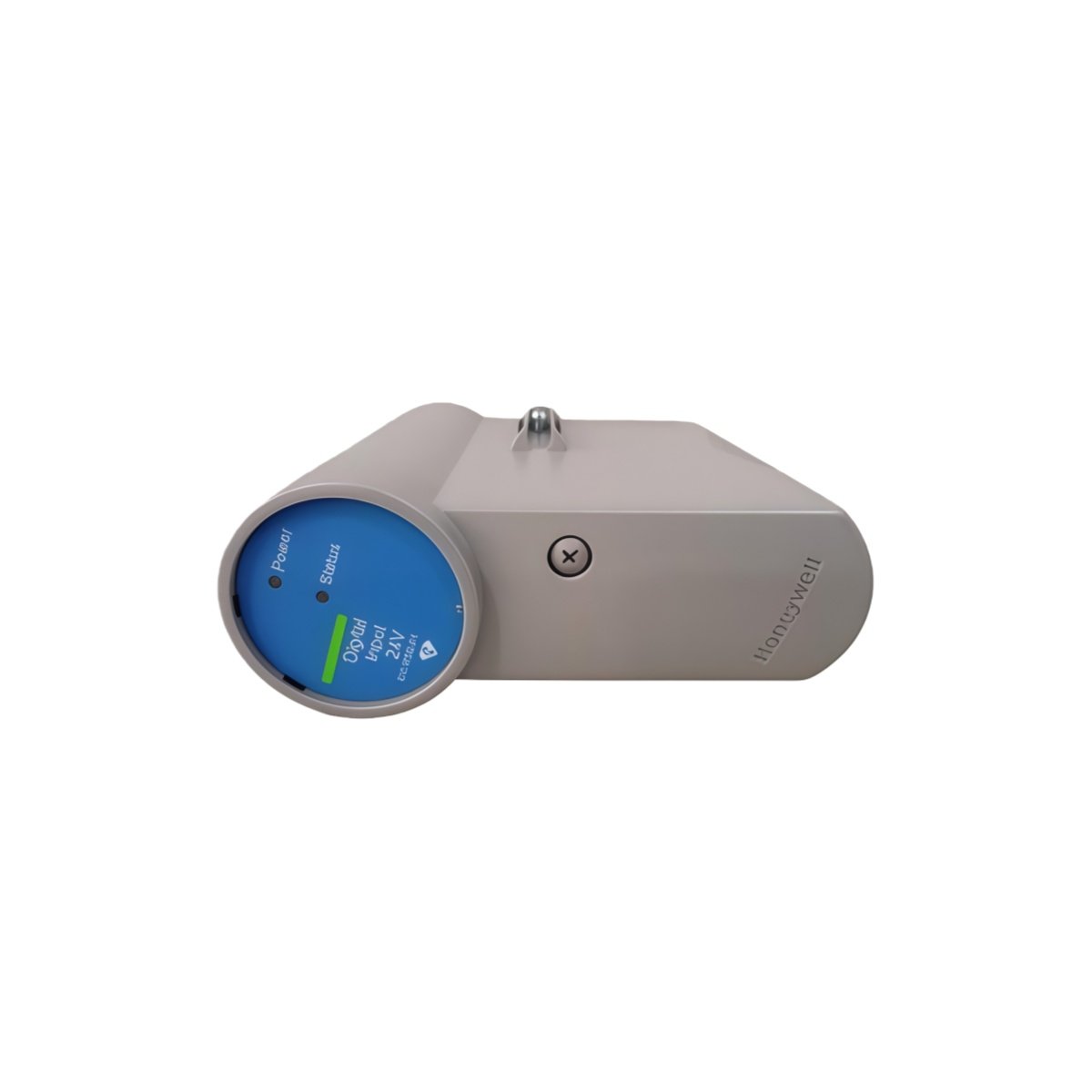

The Honeywell 51405040-175 module provides reliable digital signal acquisition for automation systems. This input module belongs to the popular CC-PDIL01 series from Honeywell. The unit handles 32 separate digital input channels with high efficiency. Each channel accepts a voltage range from 18 to 30 VDC. The module delivers a stable input impedance of 4.2 kΩ. Its guaranteed ON resistance stays below 300 Ω at 15 VDC.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-PDIL01 |
| Part Number | 51405040-175 |
| Input Channels | 32 digital inputs |
| Input Voltage Range | 18 to 30 VDC |
| Input Impedance | 4.2 kΩ |
| Guaranteed ON Resistance | <300 Ω at 15 VDC |
| Isolation Voltage | 3000 V |
| Dimensions | 191 x 188 x 65 mm |
| Weight | 0.4 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Country of Origin | USA |
| Warranty | 12 months |
Robust Isolation and Environmental Tolerance
The Honeywell 51405040-175 features a strong 3000 V isolation voltage. Therefore, this module protects the system from electrical noise and surges. The unit operates reliably from -20°C to +60°C. Furthermore, storage remains safe between -40°C and +85°C. The hardware also tolerates humidity levels from 5% to 95% RH without condensation.
Compact Dimensions and Lightweight Design
The 51405040-175 measures only 191 x 188 x 65 mm. Consequently, this module fits easily into crowded control cabinets. Its weight reaches just 0.4 kg. As a result, this lightweight design simplifies installation and reduces strain on mounting rails.
Proven Quality from the United States
Honeywell manufactures the CC-PDIL01 module in the USA. Accordingly, the build quality and consistency meet high industrial standards. This input module ensures long-term reliability for factory automation applications.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
Reviews
There are no reviews yet.
