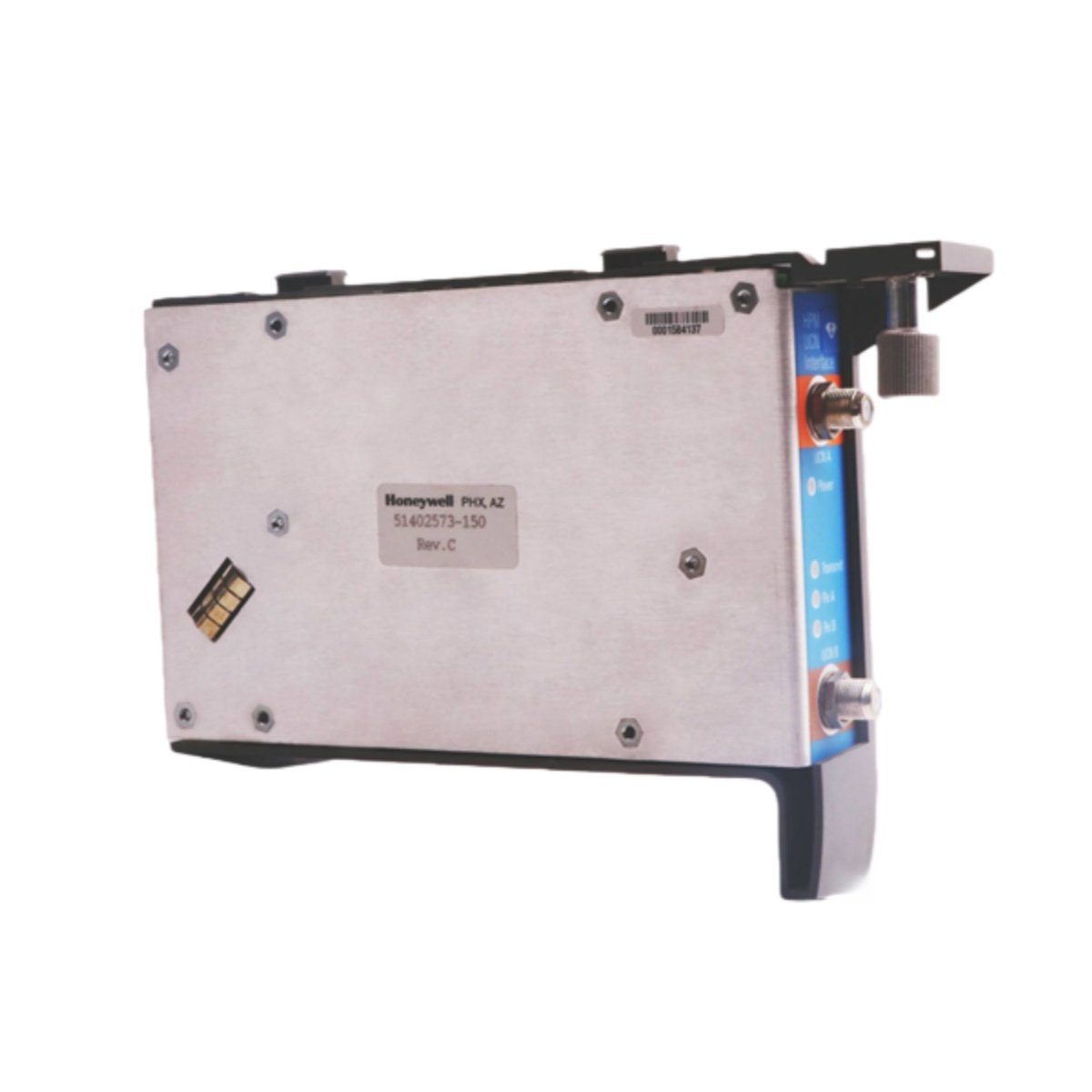

The Honeywell 51402573-150 module bridges the HPM and UCN networks seamlessly. This interface module belongs to the Honeywell HPM series for distributed control systems. The unit enables high-speed data exchange between process controllers and field devices. Consequently, this module plays a vital role in system integration.

Key Technical Specifications

Network Communication Capabilities

The 51402573-150 operates at a 5 Mbps communication speed for fast data transfer. Dual redundant UCN ports provide network fault tolerance for continuous operation. Each network segment supports cable lengths up to 500 meters. The module connects up to 32 nodes on a single UCN segment. Therefore, the Honeywell 51402573-150 suits large distributed control architectures.

Power Requirements and Physical Dimensions

This interface module requires a nominal 24 VDC power supply for reliable operation. Typical power consumption measures 5.5 W for moderate energy use. The unit measures 200 x 175 x 40 mm for standard HPM rack mounting. Total weight reaches 0.55 kg for stable installation. Honeywell manufactures the 51402573-150 in the USA. Accordingly, this module meets strict industrial quality standards.

Isolation and Environmental Specifications

The Honeywell 51402573-150 provides 1500 V isolation for electrical safety. This isolation protects connected equipment from voltage surges. The module operates reliably from 0°C to +60°C in control rooms. Storage temperatures range safely from -40°C to +85°C for warehouse storage. Humidity tolerance spans 5% to 95% RH without condensation.

System Integration Role

The 51402573-150 connects HPM processors to the UCN backbone effectively. This interface enables seamless data flow across the entire control system. Therefore, operators receive real-time process information without delays. The module supports Honeywell TDC 3000 system architectures.
