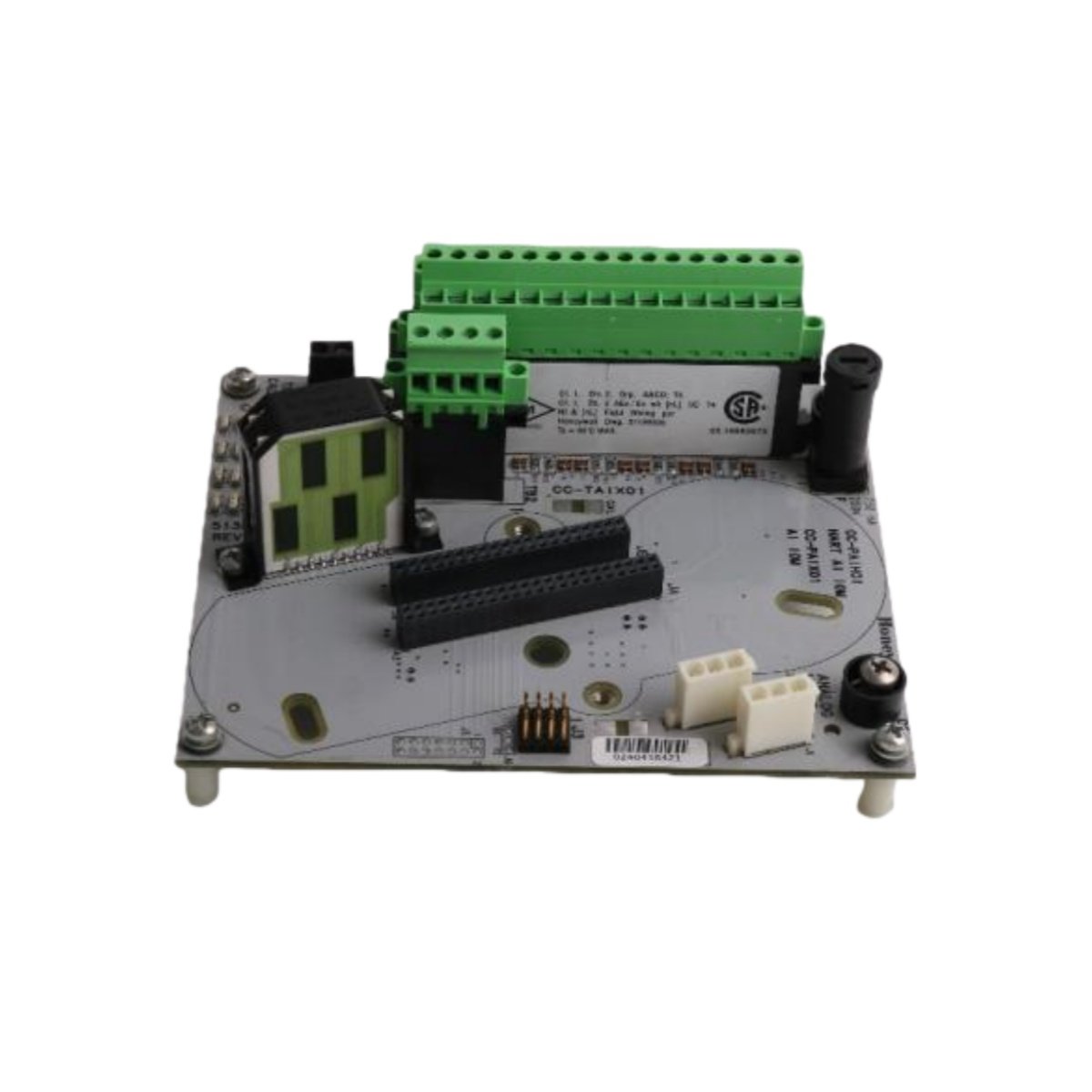

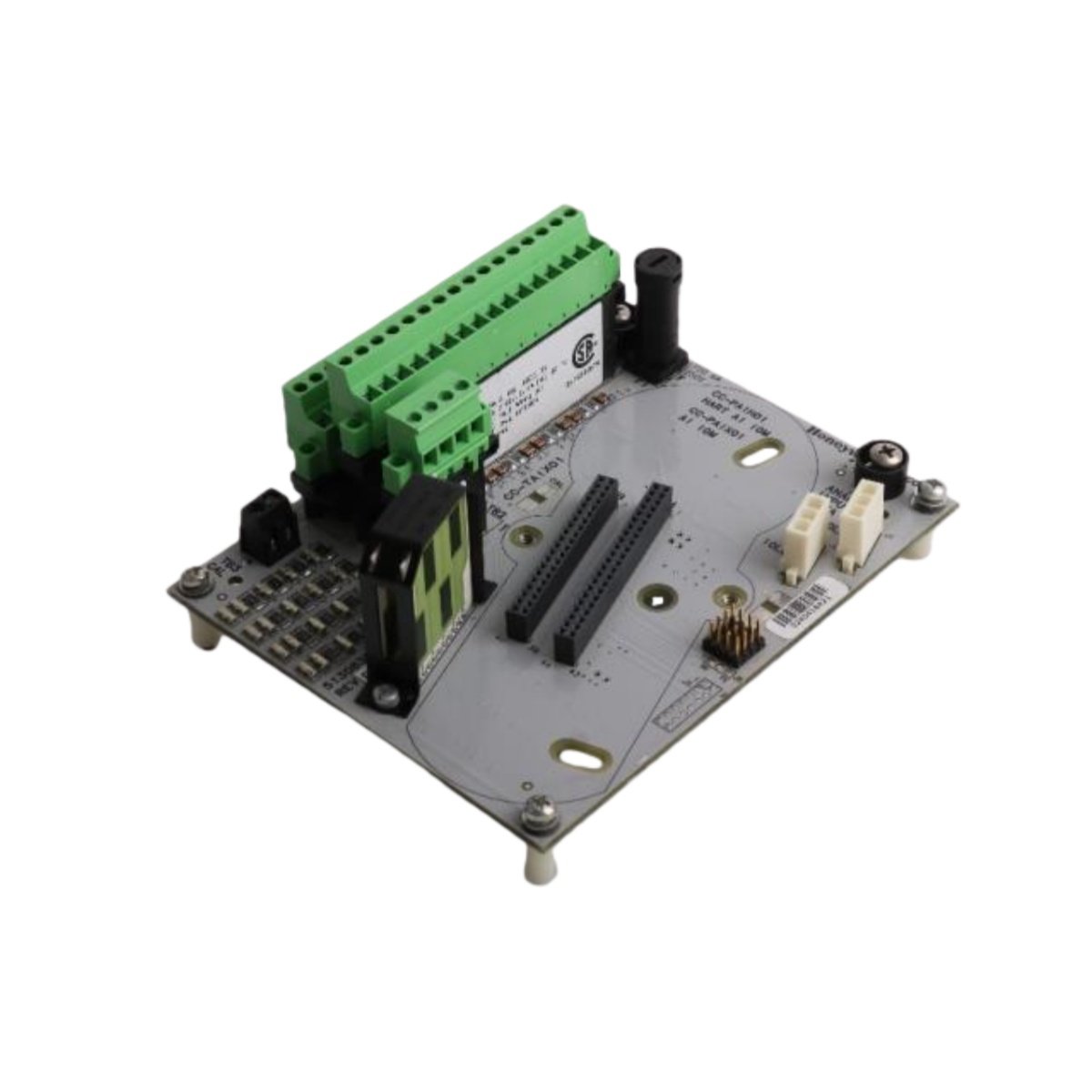

The Honeywell 51308363-175 is a versatile 16-channel analog input module for process control. This advanced module acquires precise signals from a wide array of field sensors and transmitters. Consequently, it delivers critical process data for monitoring and control within Honeywell DCS and safety systems.
Core Signal Acquisition and HART Communication
This module excels at handling both voltage and current signals with high resolution and accuracy. It supports the HART communication protocol for advanced device configuration and diagnostics. Moreover, the 51308363-175 accommodates both 2-wire loop-powered and self-powered transmitter types.
The module provides 12 single-ended and 4 differential input channels for flexible wiring. Therefore, it offers an optimal balance for monitoring multiple process variables in a compact form factor.
Detailed Electrical and Performance Specifications
Designed for reliable operation in control cabinets, this module meets rigorous industrial standards. Below are its comprehensive technical, electrical, and environmental specifications.
Comprehensive Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51308363-175 |
| Product Category | Analog Input Module / Process I/O Card |
| Total Input Channels | 16 |
| Channel Configuration | 12 Single-Ended, 4 Differential |
| Supported Input Ranges | 0-5 V, 1-5 V, 4-20 mA |
| A/D Converter Resolution | 16-bit |
| Hardware Accuracy | ±0.075% of span (at 23.5°C ±2°C) |
| Input Scan Rate | 50 milliseconds (per channel group) |
| Common Mode Voltage Range | -6 V to +5 V peak |
| Common Mode Rejection Ratio | 70 dB (minimum) |
| Supply Voltage | 24 V DC |
| Current Draw | 0.195 A @ 24V DC |
| Power Consumption | 4.68 Watts |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| Module Weight | Approximately 0.3 kg (typical for this form factor) |
| Primary Component Count | 1x 16-bit ADC, 16x signal conditioning amps, 1x HART modem IC |
| Internal Energy Storage | Local decoupling capacitors only (<0.1 Joules) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Rating | 5% to 95% non-condensing |
| Installation Type | Non-redundant (single module) |
| Certifications | Designed to meet cULus, ATEX, IECEx for hazardous areas |
Application and System Context
This module is essential for precise measurement of pressure, temperature, and flow in industries like oil & gas and chemicals. For sourcing related industrial process control or protection devices, platforms like Alibaba list various components. For instance, you can find items such as the RMS-TSG-TZ-C Static Trip unit for electrical system safety.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 30 × 313 × 278 mm |
