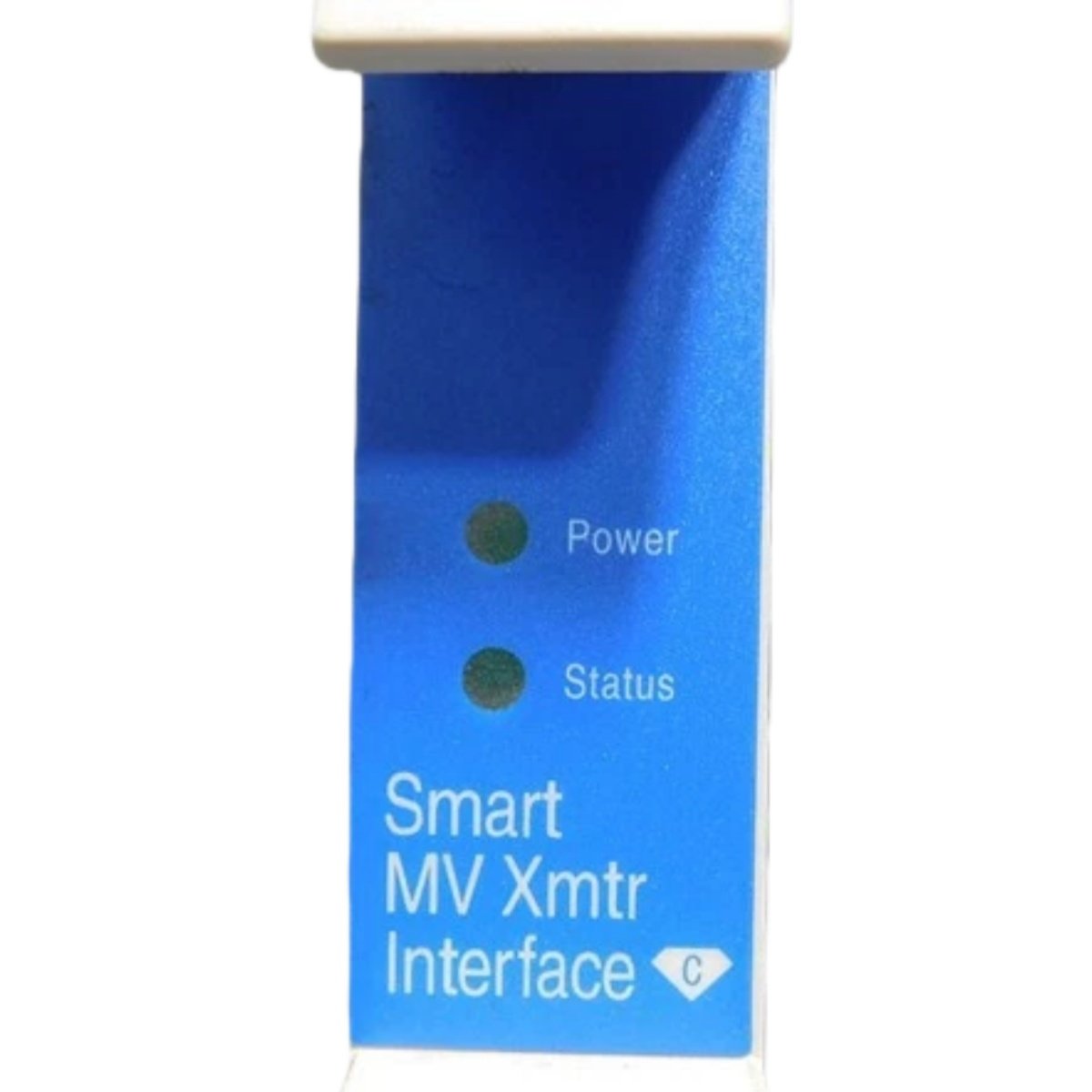

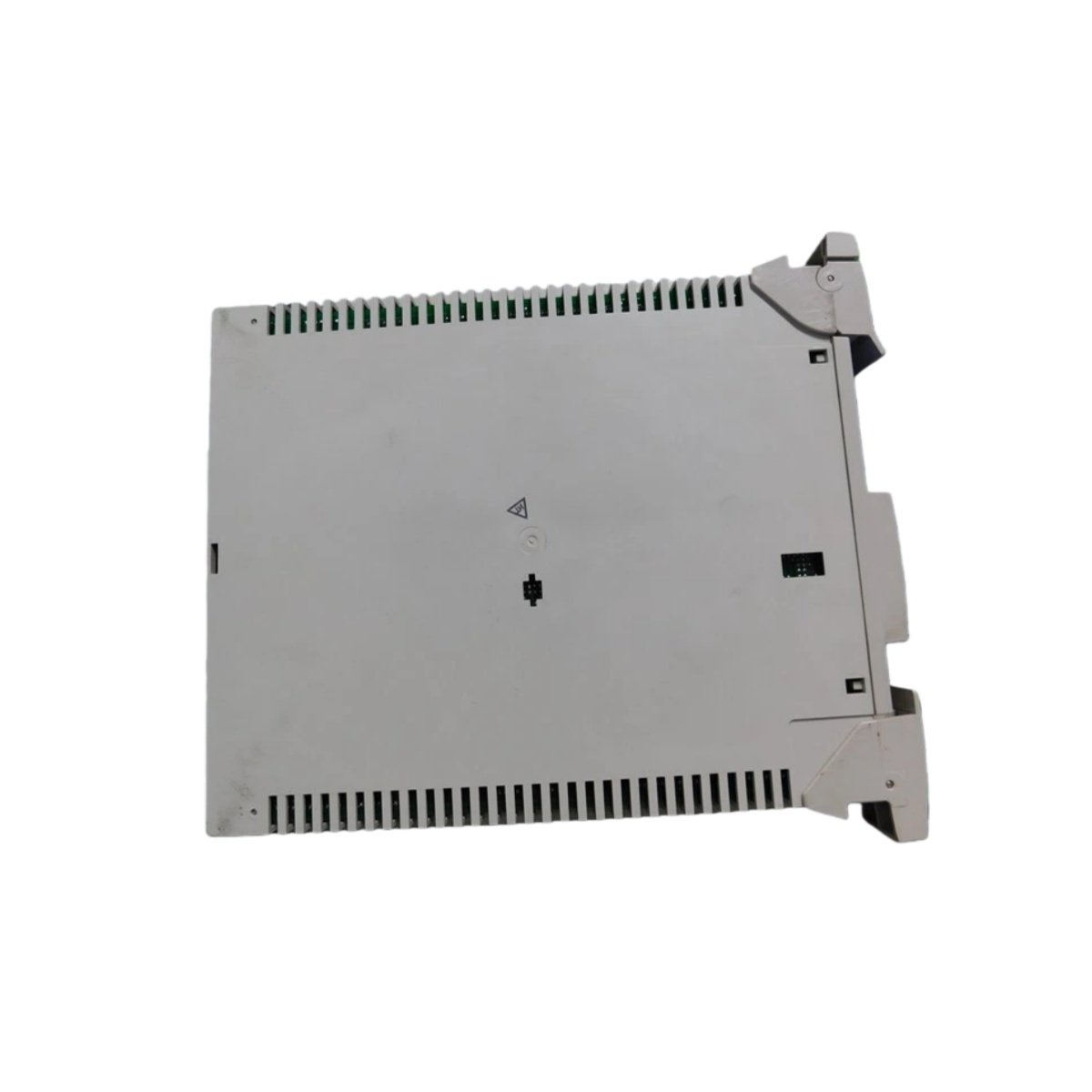

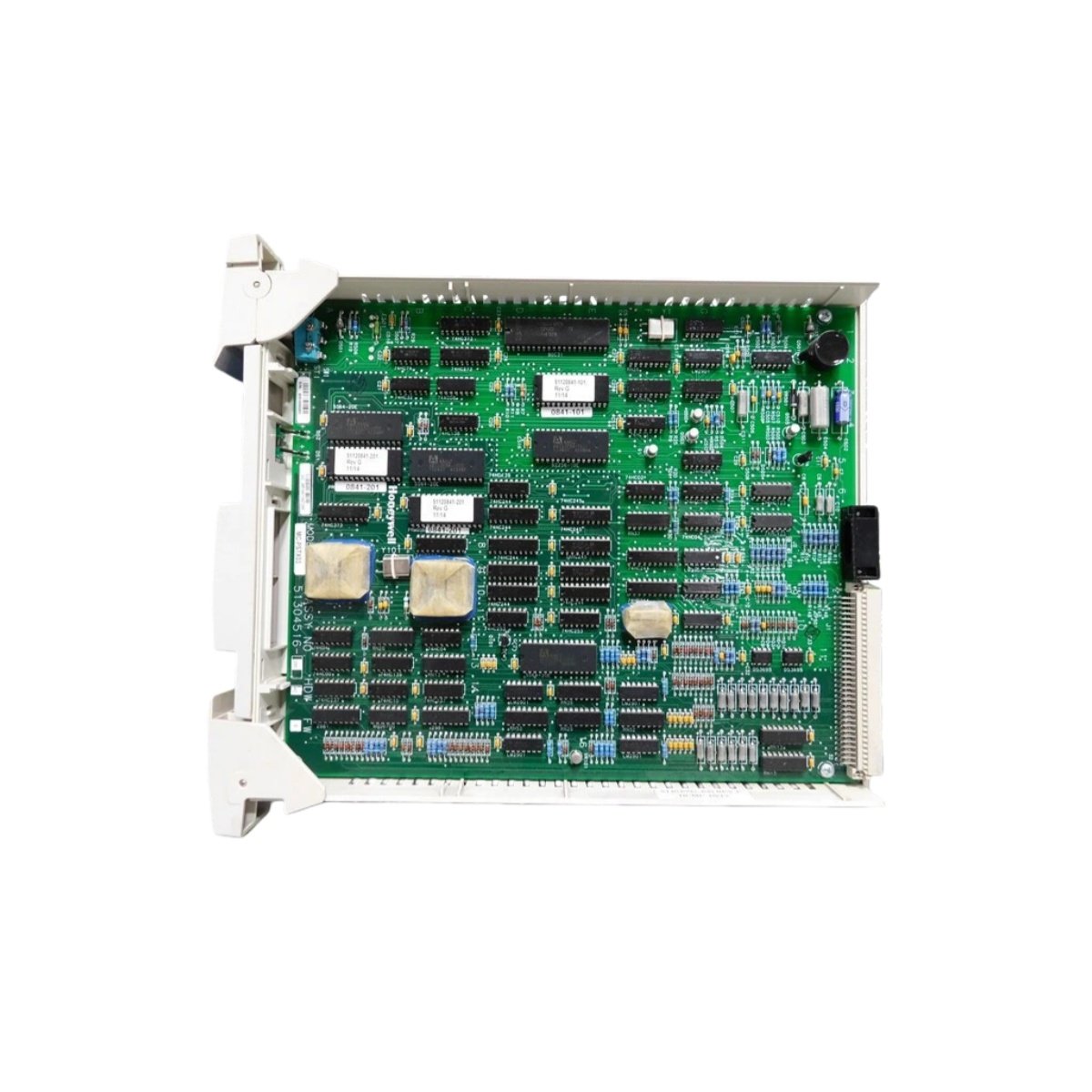

The Honeywell 51304516-250 is a versatile Smart Transmitter Interface Multivariable (STIM) module. This unit creates a critical communication bridge for industrial control networks. Specifically, it connects Honeywell’s Universal Control Network (UCN) with intelligent field transmitters.
This interface module supports multiple industry-standard protocols for broad compatibility. Consequently, it can communicate with Modbus, Profibus, and DeviceNet devices from various manufacturers. Engineers rely on this flexibility to integrate multivariable smart transmitters into diverse PLC systems.
Key Technical Features & Specifications
The Honeywell 51304516-250 is engineered for reliability in demanding settings. Its design incorporates several key features for robust performance.
| Parameter / Feature | Specification |
|---|---|
| Product Type | Smart Transmitter Interface Multivariable (STIM) |
| Primary Function | UCN to Smart Transmitter Protocol Gateway |
| Supported Protocols | Modbus, Profibus, DeviceNet |
| Isolation Protection | 2500 VDC between communication ports |
| Operating Temperature Range | -20°C to +70°C |
| Enclosure Protection | Rugged design against dust, moisture, vibration |
Application and Integration Benefits
The high 2500 VDC electrical isolation protects the module and network from noise. Furthermore, the wide operating temperature range ensures functionality in harsh plant environments. This makes the 51304516-250 suitable for challenging applications in process industries.
The module’s straightforward installation simplifies system expansion and upgrades. Therefore, personnel can configure it efficiently, even with limited networking experience. This Honeywell STIM module is a reliable choice for modernizing control systems with smart field device integration.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 176 × 35.2 × 212 mm |
