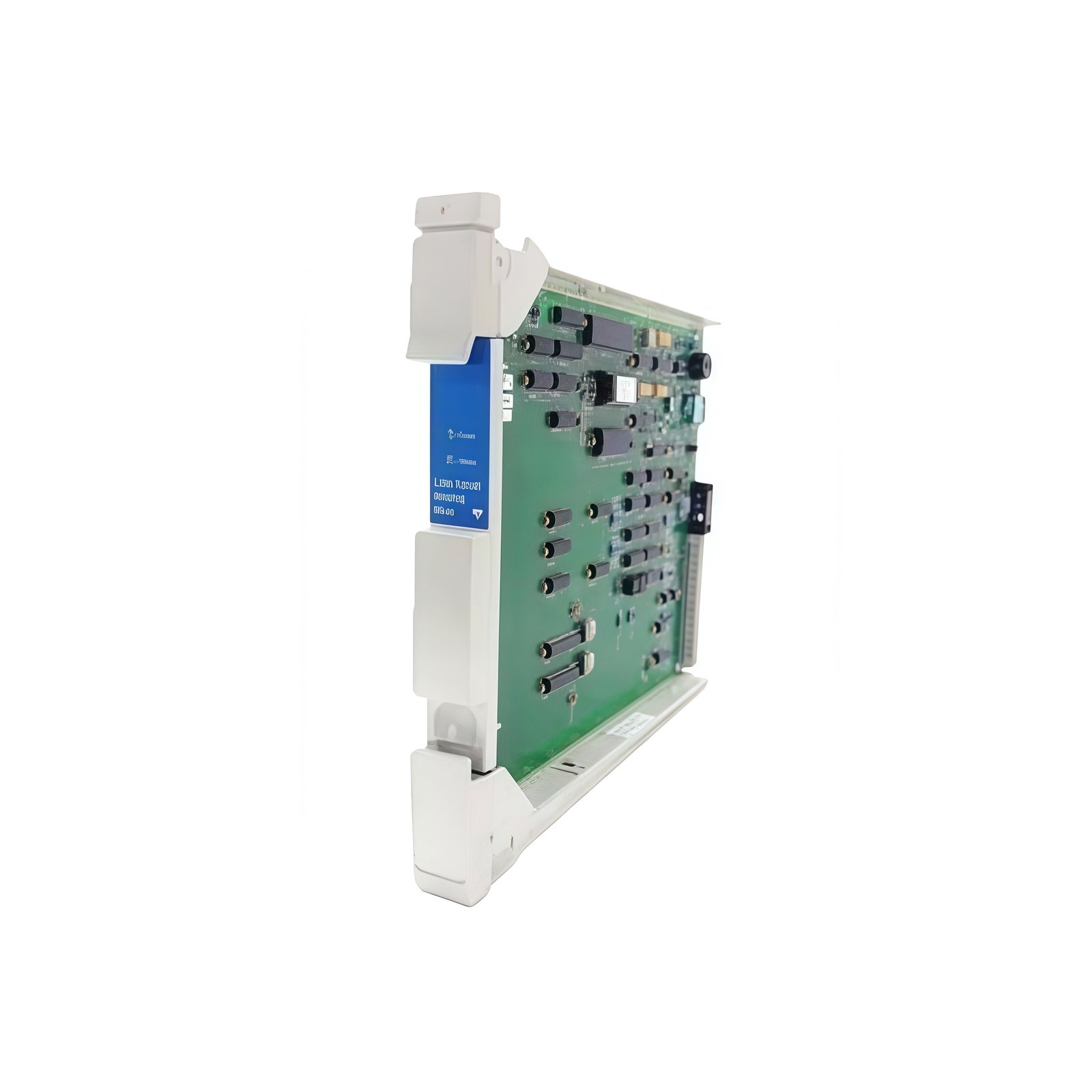

The Honeywell 51304487-150 module delivers robust digital output signals for field devices. This output module belongs to the Honeywell series for industrial control systems. The unit controls actuators, relays, and solenoids with precision switching. Each output channel provides a high current drive capability. Therefore, this module suits demanding automation applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 51304487-150 |
| Product Type | Digital Output Module |
| Output Channels | 16 digital outputs |
| Output Type | Solid-state relay |
| Output Voltage Range | 5 to 30 VDC |
| Output Current per Channel | 0.5 A maximum |
| Total Output Current | 4 A maximum |
| ON-State Resistance | <0.5 Ω |
| OFF-State Leakage | <0.1 mA |
| Isolation Voltage | 1500 V (channel to bus) |
| Response Time | 1 ms typical |
| Dimensions | 190 x 165 x 35 mm |
| Weight | 0.45 kg |
| Power Supply Voltage | 24 VDC ±20% |
| Internal Power Consumption | 3.5 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Country of Origin | USA |
| Warranty | 12 months |
Output Performance and Switching Characteristics
The 51304487-150 provides 16 independent digital output channels for flexible configuration. Each channel delivers up to 0.5 A of continuous output current. The total combined output current reaches 4 A across all channels. Solid-state relay technology ensures silent and maintenance-free operation. The ON-state resistance stays below 0.5 Ω for minimal power loss. OFF-state leakage remains under 0.1 mA to prevent false triggering. Response time reaches just 1 ms for fast actuation control.
Isolation and Power Requirements
This digital output module features 1500 V isolation between channels and the system bus. Consequently, the design protects the control processor from field wiring faults. The Honeywell 51304487-150 requires a 24 VDC power supply with ±20% tolerance. Internal power consumption measures only 3.5 W for energy efficiency. Therefore, the module generates minimal heat during continuous operation.
Physical Dimensions and Environmental Tolerance
The 51304487-150 measures 190 x 165 x 35 mm for standard rack mounting. Total weight reaches 0.45 kg for easy handling and installation. The module operates reliably from -20°C to +60°C in industrial environments. Storage temperatures range safely from -40°C to +85°C. Humidity tolerance spans 5% to 95% RH without condensation. Honeywell manufactures this 51304487-150 module in the USA. Accordingly, users receive consistent quality and long-term reliability for factory automation.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
