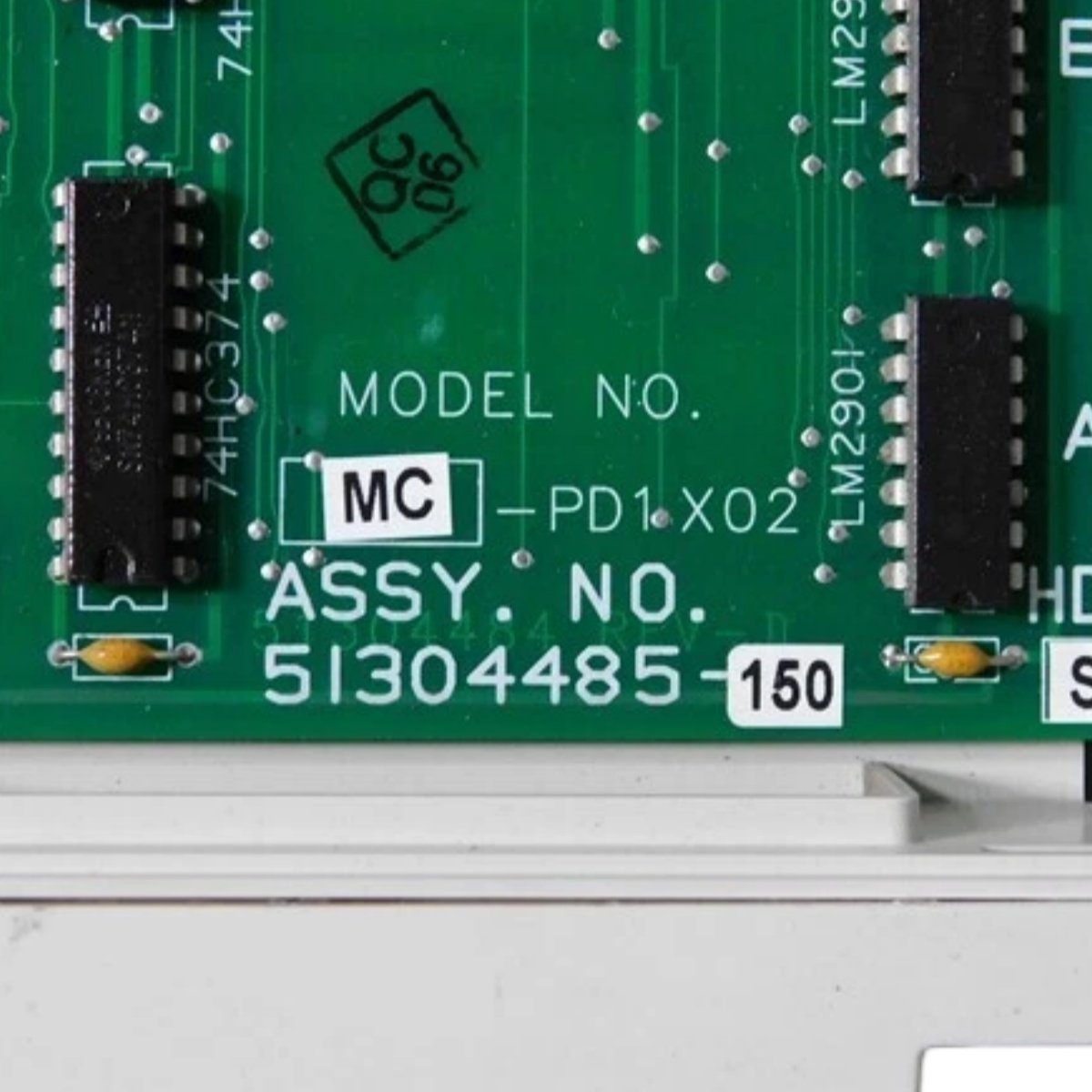

The Honeywell 51304485-150 is a versatile digital input module for process control. This MC-PDIX02 unit reliably captures signals from field switches and sensors. It seamlessly converts these inputs for use within Honeywell Experion PKS and TDC3000 DCS architectures.
Engineered for Industrial Reliability
This module offers 16 discrete input channels for comprehensive device monitoring. It accepts standard 24 VDC signals from both dry contacts and TTL-compatible devices. Consequently, the 51304485-150 provides flexible integration for diverse digital field instrumentation.
Compact and Rugged Physical Design
The module features a robust, space-saving enclosure for panel mounting. It measures 120 mm in width, 80 mm in height, and 50 mm in depth. Moreover, its 0.5 kg weight and wide operating temperature range ensure durability in harsh plant environments.
Detailed Technical Specifications
The table below lists the complete technical and physical parameters for this Honeywell module.
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Honeywell |
| Model Number | 51304485-150 |
| Module Type | MC-PDIX02 Digital Input Module |
| Compatible Systems | Honeywell Experion PKS, TDC3000 DCS |
| Number of Input Channels | 16 |
| Input Voltage | 24 VDC (Typical) |
| Input Signal Type | Dry Contact or TTL-Compatible |
| Dimensions (W x H x D) | 120 mm x 80 mm x 50 mm |
| Weight | 0.5 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Modular Design | Yes, for quick service and replacement |
| Safety Certifications | CE, UL, CSA (Typical for line) |
Key Features for System Integration
The module’s design ensures stable signal acquisition in electrically noisy environments. Its modular construction allows technicians to perform quick replacements during maintenance windows. Furthermore, global safety certifications guarantee compliance for international industrial projects.
This Honeywell component is essential for monitoring pump run statuses, valve positions, and alarm contacts. It forms a critical data link for safety interlocks and sequential control logic. Available in new or refurbished conditions, it offers a reliable solution for system expansion or legacy support.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 120 × 80 × 50 mm |
