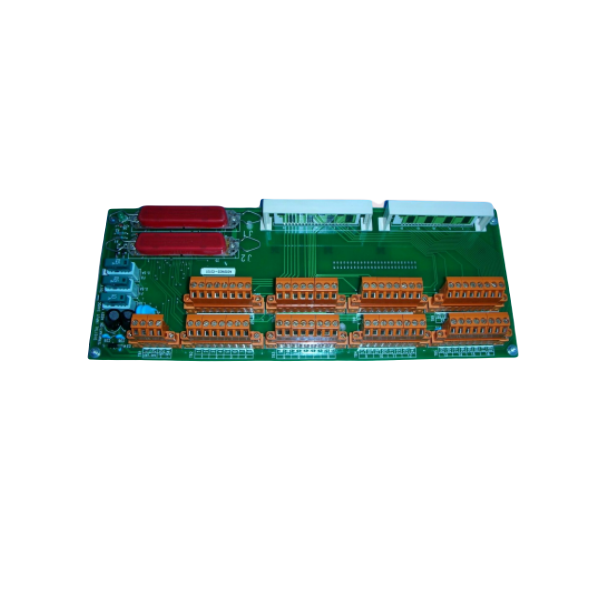

The Honeywell 51204160-125 MU-TDIY22 Digital Input 24 Vdc Processor is designed for efficient and reliable signal processing in industrial automation systems. Its robust features and high-level performance make it ideal for a wide range of applications that require precise input data handling and integration with other industrial components. This digital input processor is engineered to operate in harsh environments, ensuring durability and seamless communication across systems.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | MU-TDIY22 |
| Input Points per IOP/FTA | 32 |
| Galvanic Isolation | 30 Vac, ±42.4 Vdc (max) |
| Input Voltage Range | 15 to 30 Vdc |
| ON Sense Voltage/Current | 13 Vdc (min) or 3 mA (min) |
| OFF Sense Voltage/Current | 5 Vdc (max) or 1.2 mA (max) |
| Input Impedance | 4.2 KΩ |
| Field Resistance for Guaranteed ON | 300 Ω max @ 15 Vdc |
| Field Resistance for Guaranteed OFF | 30 KΩ min @ 30 Vdc |
| Surge Withstand Capability | ANSI/IEEE C37.90.1-1978 |
Details
| Weight | 0.2 kg |
|---|
