Overview

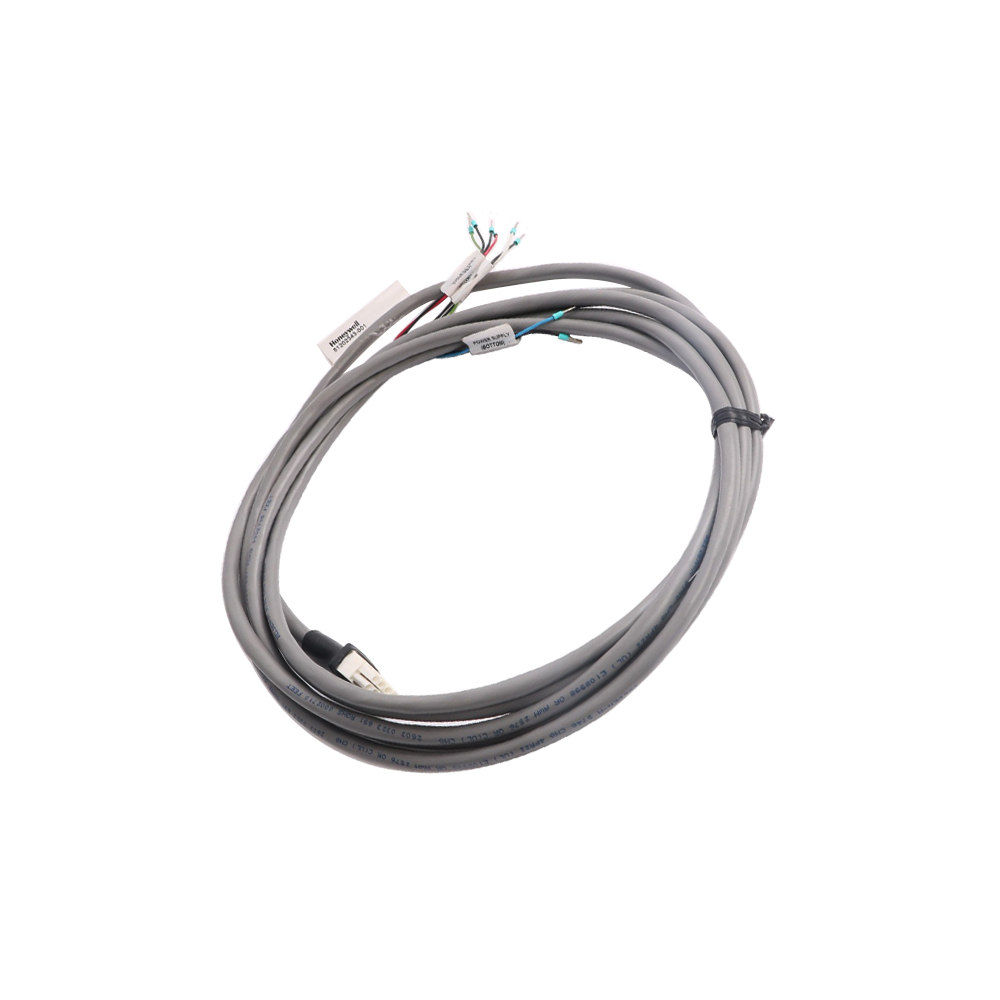

The Honeywell 51202343-001 is a 12-foot alarm cable designed to integrate seamlessly with Honeywell control systems. It enables reliable alarm signal transmission from power supply contacts to digital input (DI) channels on Series C 24V I/O modules. This cable is essential for configuring alarm-triggering mechanisms within Honeywell Experion PKS environments, ensuring process deviations are promptly reported.
Key Features
- Cable Length: 12 feet (3.66 meters)
- Purpose: Connects power supply alarm contacts to 24V DC digital input modules
- System Compatibility: Works with DI 24V I/O modules such as CC-TDIL01 and CC-TDIL11
- Alarm Integration: Supports digital input channels in control strategies for alarm triggering and reporting
- Reliable Connections: Twisted-pair wiring ensures signal integrity for accurate alarm detection
Typical Applications
- Monitoring power supply status in industrial control systems
- Integrating alarm inputs into Experion PKS Series C I/O modules
- Implementing digital alarm reporting in automated control strategies
Installation Guidelines
- Connect the Alarm Cable: Plug the cable end into the alarm terminal on the power supply.
- Wiring Configuration: Attach twisted-pair wires to terminal block 1 on the DI 24V IOTA module. Ensure proper polarity and pin alignment.
- Configure Alarms: Use control module function blocks to assign PVs and FLAGARRAY inputs for alarm logic as per system requirements.
System Requirements
- Series C 24V digital input I/O modules
- Associated IOTAs installed and configured for alarm reporting
- Honeywell 51202343-001 alarm cable for connection
This cable simplifies alarm integration, reduces wiring errors, and ensures reliable digital input communication for industrial automation systems.
