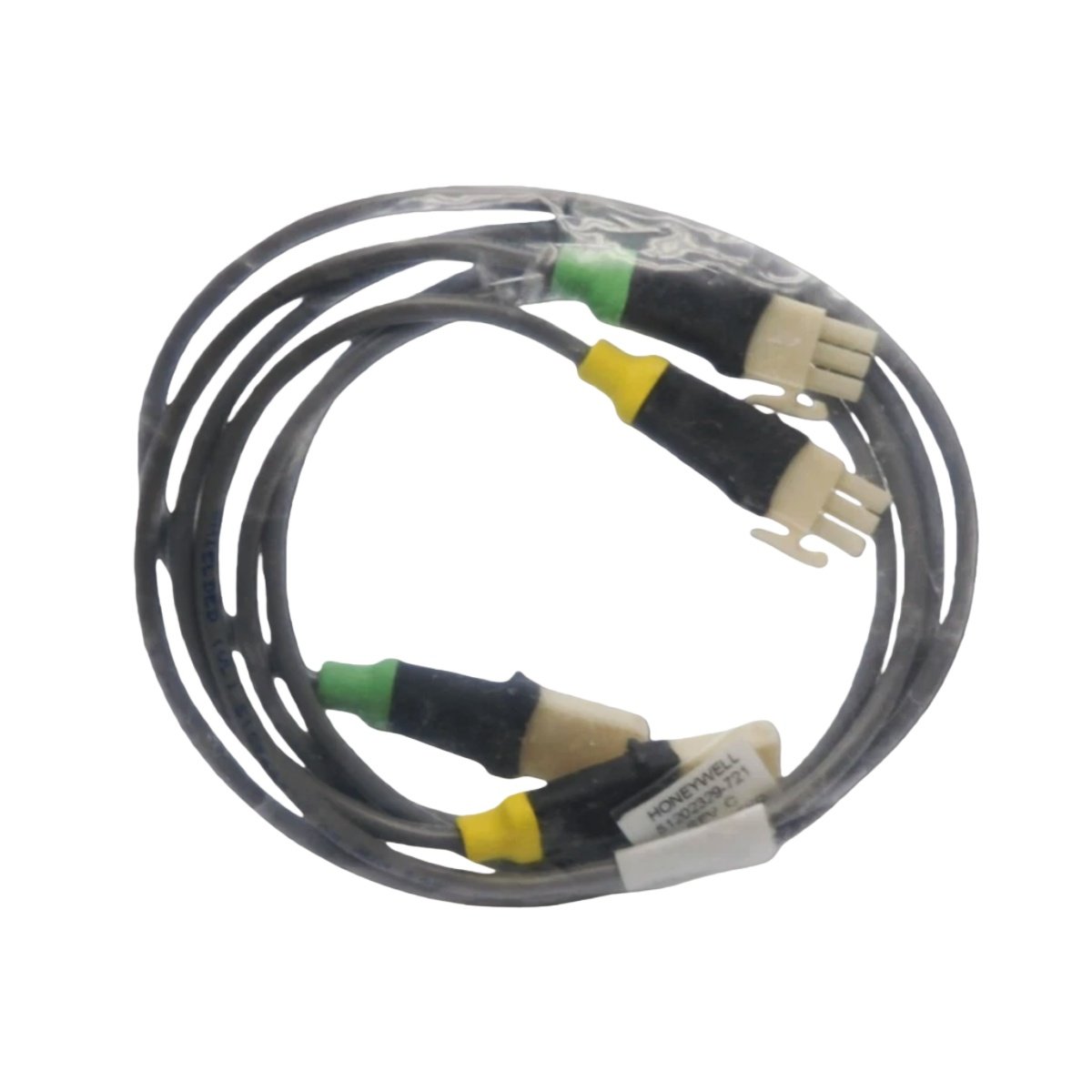

The Honeywell 51202329-722 functions as a shielded I/O Link cable pair designed specifically for Honeywell Experion control systems. Each cable in the pair measures 36 inches in length and features a robust four-conductor shielded design. Consequently, these cables provide reliable and noise-immune connections between I/O modules and field termination assemblies.

Core Technical Specifications

We engineered the Honeywell 51202329-722 for demanding industrial environments where signal integrity and durability are essential for system performance. The table below details its essential physical and electronic parameters:

Precision 36-Inch Length for Cabinet Wiring

Each cable measures exactly 36 inches, providing the ideal length for connecting I/O modules within standard control cabinets. This pre-determined length eliminates the need for cutting and custom-making cables during installation. Therefore, you achieve consistent, professional wiring without excess cable slack.

Shielded Construction for Noise Immunity

The shielded design protects sensitive I/O signals from electromagnetic interference common in industrial environments. This shielding prevents electrical noise from corrupting data transmissions between modules. Consequently, the Honeywell 51202329-722 ensures reliable communication even near motors and drives.

Heavy-Duty 12 AWG Conductors

Four 12 AWG conductors provide ample current-carrying capacity for I/O signals and field power distribution. This heavy gauge minimizes voltage drop over the cable length, ensuring signal integrity. As a result, you can rely on these cables for critical I/O connections requiring low resistance.

300-Volt Rating for Industrial Applications

With a 300-volt rating, these cables safely handle the voltage levels common in industrial control systems. They provide adequate insulation and safety margins for 24V DC and 120V AC I/O circuits. Hence, you can use them confidently in a wide range of Experion system configurations.

Wide Temperature Tolerance for Global Use

The cable pair operates reliably across an extreme temperature range of -40°C to +85°C. This specification makes them suitable for installations in both freezing environments and high-heat locations. Therefore, you can deploy the 51202329-722 in diverse climates without concern.

CE Compliant for International Acceptance

These cables meet CE compliance standards, ensuring they satisfy European safety and performance requirements. This certification facilitates use in projects worldwide where CE marking is mandatory. Consequently, they serve as a globally acceptable wiring solution for Experion systems.

Designed Specifically for Experion Systems

Honeywell engineered these cables as genuine components for Experion control system installations. They mate perfectly with Experion I/O modules and termination assemblies without adapters. As a result, you maintain system integrity by using authentic Honeywell accessories.

Pair Configuration for Complete Connections

The product includes two matched cables, providing a complete set for typical I/O module-to-termination connections. This pair configuration simplifies ordering and ensures you have the right quantity for each installation. Hence, it reduces procurement complexity and potential mismatches.
