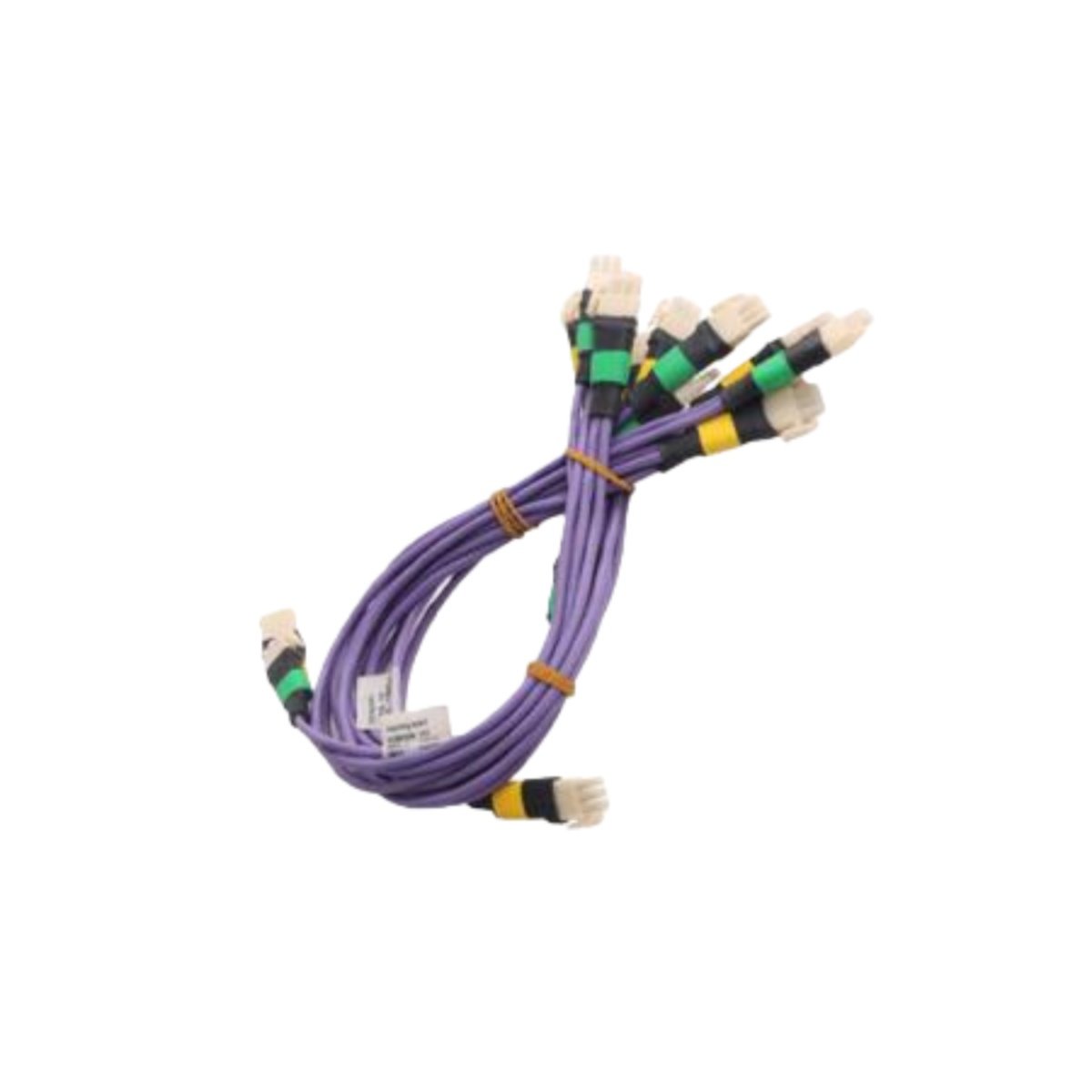

The Honeywell 51202329-616 cable provides a reliable I/O link connection for automation equipment. This violet header cable belongs to the Honeywell I/O accessory family. The cable facilitates secure signal transmission between control modules and field devices. Its distinctive violet color allows quick identification during installation or maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 51202329-616 |
| Product Type | I/O Link Violet Header Cable |
| Cable Color | Violet |
| Connector Type | Header connector (both ends) |
| Length | 1.5 meters (standard) |
| Conductor Material | Tinned copper |
| Insulation Material | PVC |
| Temperature Rating | -20°C to +80°C |
| Voltage Rating | 300 V |
| Current Rating | 2 A per conductor |
| Shielding | Unshielded |
| Number of Conductors | 8 conductors |
| Outer Diameter | 5.8 mm |
| Weight | 0.12 kg |
| Country of Origin | USA |
Physical Characteristics and Construction
The 51202329-616 cable measures 1.5 meters in length for flexible routing options. Tinned copper conductors provide excellent corrosion resistance for long-term reliability. The PVC insulation withstands temperatures from -20°C to +80°C. Eight individual conductors allow multiple signal paths within a single cable assembly. The outer diameter reaches only 5.8 mm for easy bending and cable management. Total weight stays at just 0.12 kg.
Electrical Performance and Application
This violet header cable carries a 300 V voltage rating for industrial safety. Each conductor handles up to 2 A of continuous current. The Honeywell 51202329-616 works specifically with Honeywell I/O header interfaces. Therefore, this cable ensures proper mating and signal integrity. The unshielded design suits typical control cabinet environments without excessive electrical noise.
Durability and Installation Benefits
The violet color simplifies cable tracing during system troubleshooting. Honeywell manufactures this 51202329-616 cable in the USA. Consequently, users receive consistent quality and reliable performance. The header connectors lock securely to prevent accidental disconnection. This accessory supports smooth integration into existing Honeywell control architectures.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
