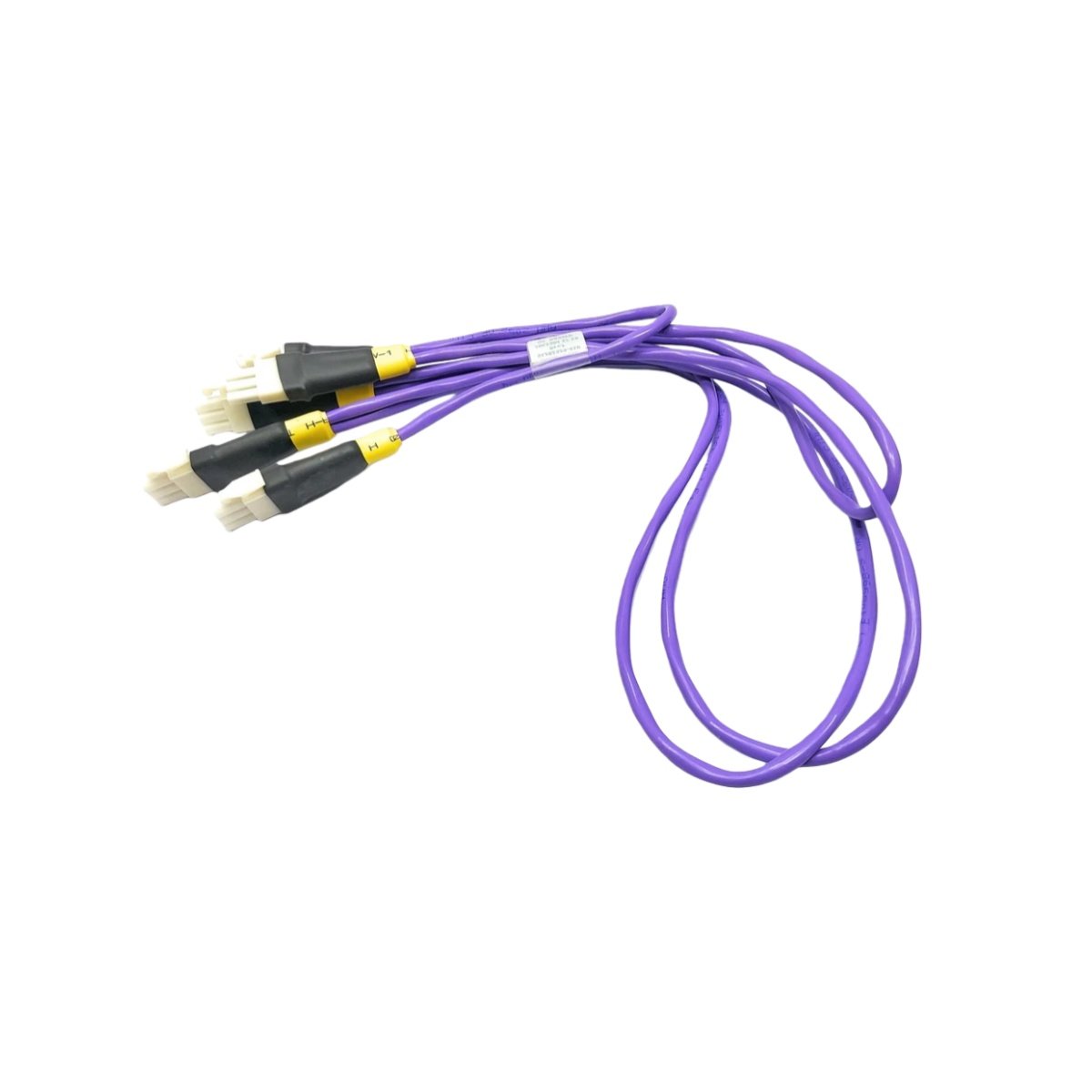

The Honeywell 51202329-412 is a multi-drop I/O Link cable pair for industrial networks. This specialized cable enables seamless communication between a controller and multiple I/O Link devices. Consequently, it efficiently distributes data and power across several connection points in a compact automation layout.
Core Connectivity and Network Design
This cable excels at creating a small, daisy-chained network for sensor and actuator clusters. It features three pre-defined connection drops along its length at precise 12-inch intervals. Moreover, the 51202329-412 supports the standardized I/O Link communication protocol for deterministic data exchange.
The cable’s fixed pitch ensures consistent and predictable spacing between connected devices. Therefore, it simplifies the physical layout planning for control panels and machine sub-assemblies.
Detailed Physical and Electrical Specifications
Engineered for durability in industrial settings, this cable pair meets robust performance standards. Below are its comprehensive technical, dimensional, and material specifications.

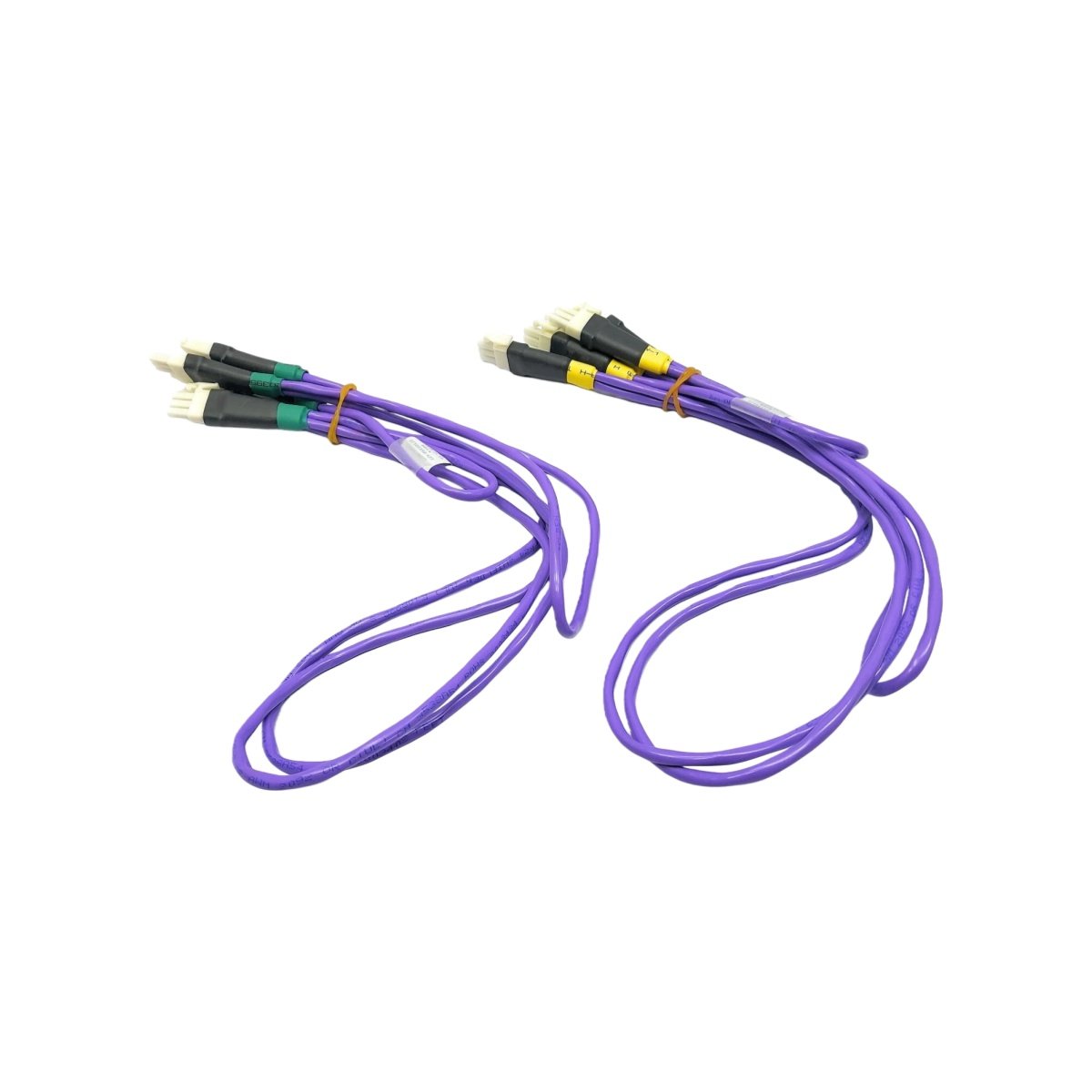

Comprehensive Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51202329-412 |
| Product Category | I/O Link Communication Cable / Multi-Drop Fieldbus Cable |
| Cable Type | Shielded, Multi-conductor |
| Number of Drops/Connection Points | 3 |
| Pitch Between Drops | 12 inches (305 mm) |
| Total Cable Length | 1.5 meters (4.9 feet) |
| Connector Type (Controller End) | Proprietary Honeywell I/O Link plug |
| Drop Connector Type | I/O Link compliant socket or open wire lead (model-specific) |
| Conductor Gauge | 22 AWG (typical for signal & power) |
| Number of Conductors | 4 or 5 (for power, data, and shield) |
| Shielding | Foil & Braid combination for EMI/RFI protection |
| Jacket Material | PVC or PUR (Oil & Abrasion resistant) |
| Cable Outer Diameter | ~7.0 mm |
| Rated Voltage | 30 V DC |
| Rated Current | 2 A per conductor |
| Communication Standard | I/O Link (IEC 61131-9) |
| Data Rate | COM2 (38.4 kbaud) or COM3 (230.4 kbaud) supported |
| Characteristic Impedance | 120 Ω |
| Capacitance (conductor to shield) | < 100 pF/m |
| Cable Pair Weight | 0.35 kg |
| Primary Component Count | 1x controller connector, 3x drop connectors, 1.5m cable |
| Bending Radius | 8x cable diameter (for fixed installation) |
| Operating Temperature | -25°C to +80°C (flexing) |
| Flame Rating | Compliant with UL/CSA FT4 |
| Chemical Resistance | Resistant to common industrial oils and coolants |
