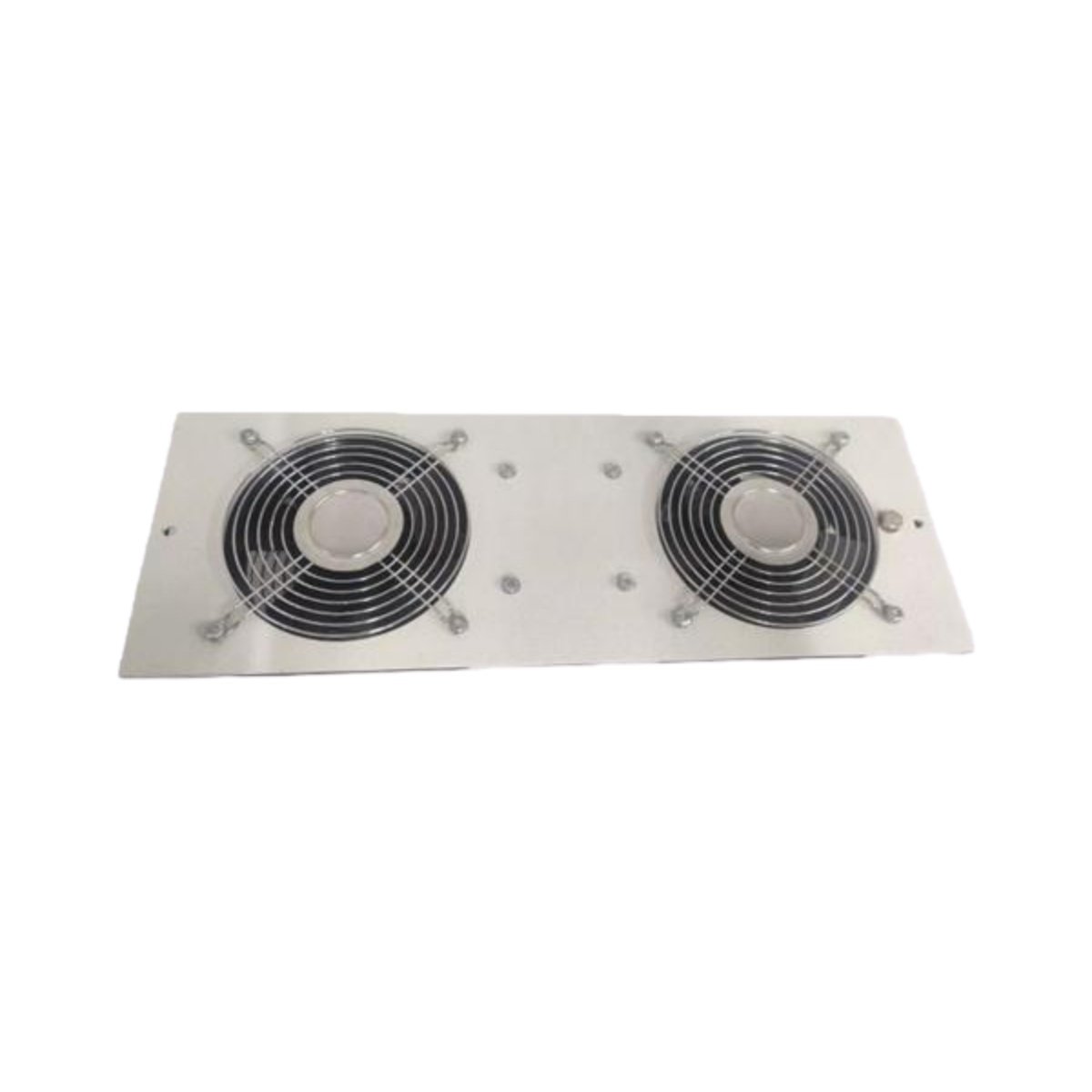

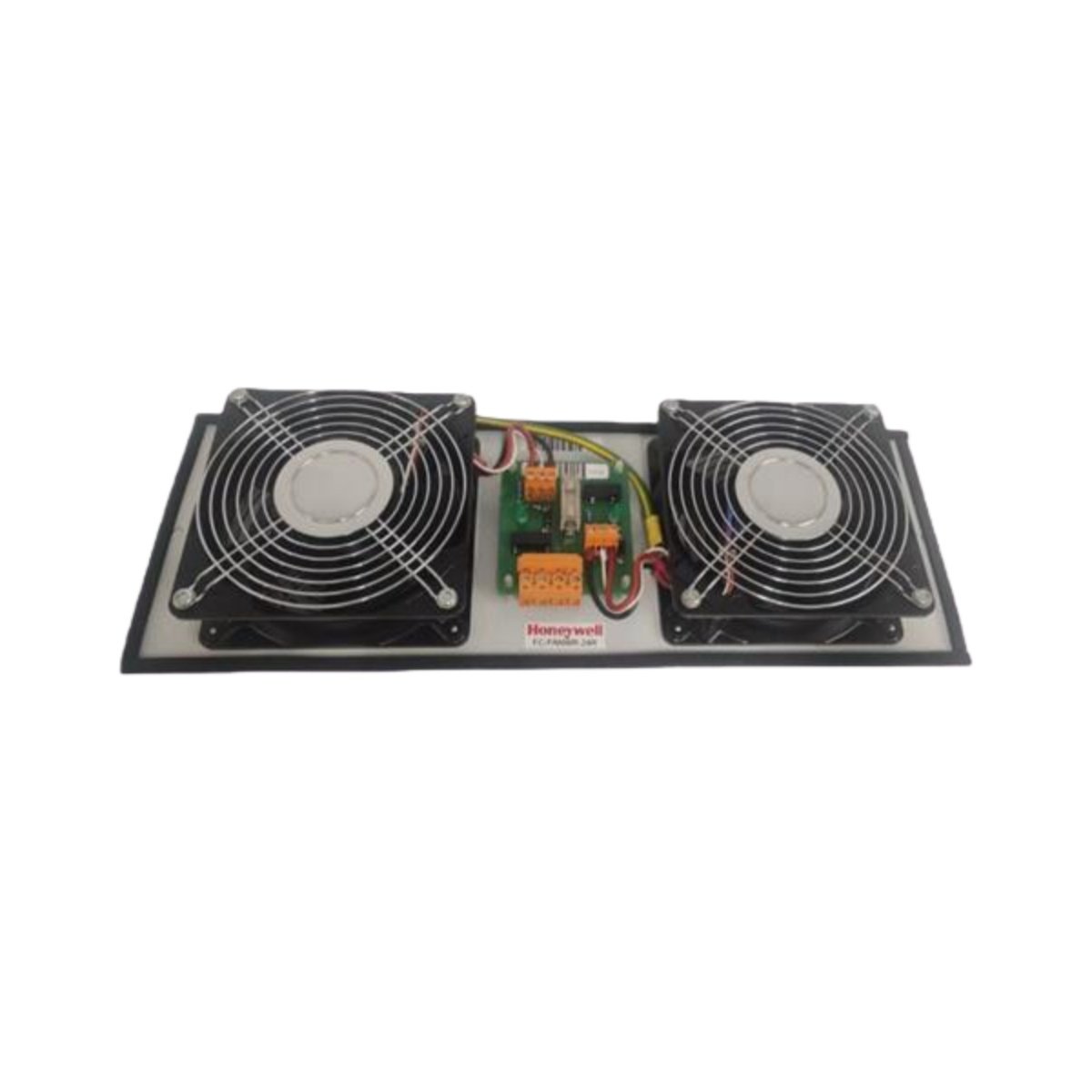

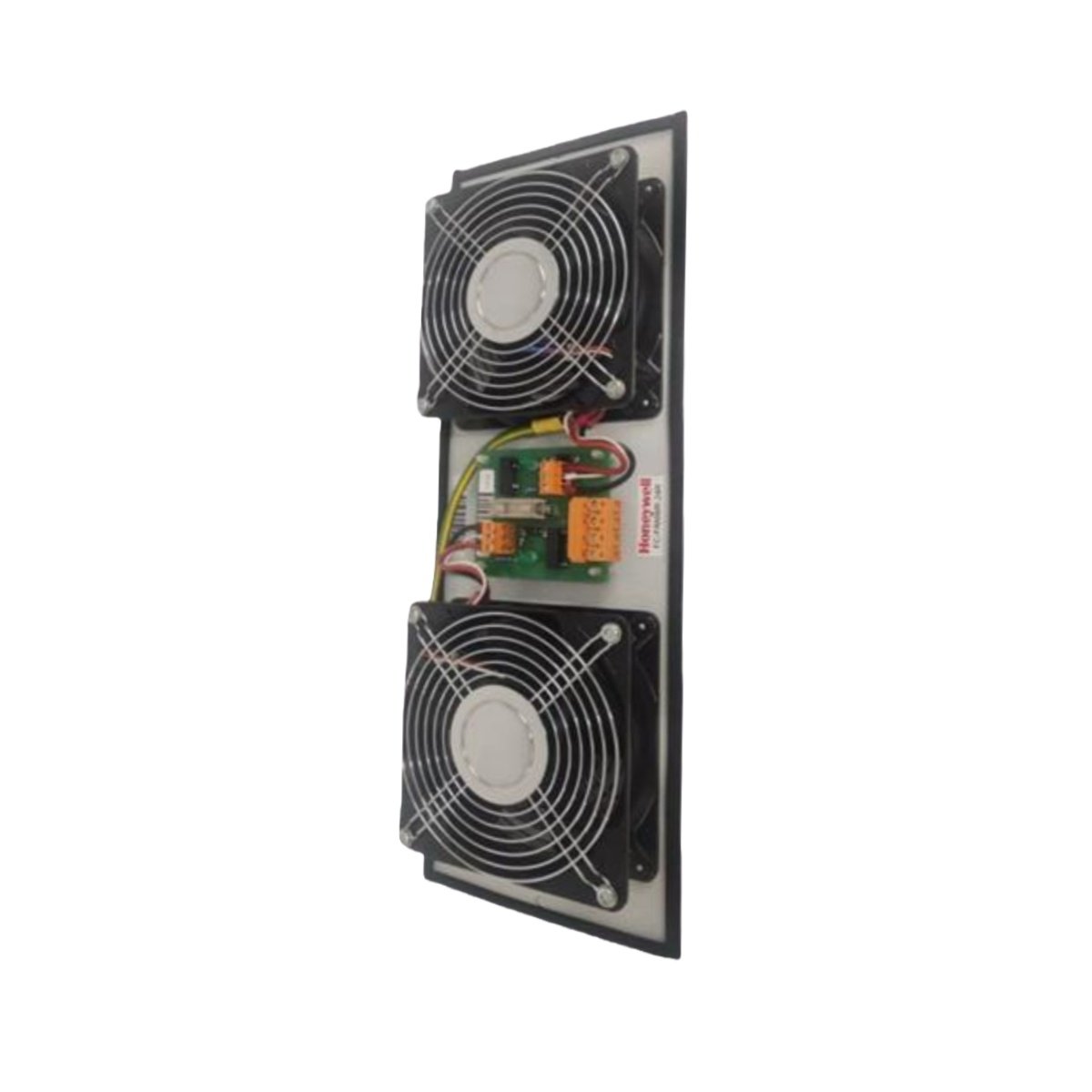

The Honeywell 51199947-175 functions as a complete cabinet fan assembly designed to maintain optimal operating temperatures within industrial control enclosures. This cooling solution actively circulates air to prevent overheating of sensitive electronic components, ensuring system reliability in demanding environments. You can integrate this assembly seamlessly into Honeywell control cabinets to extend equipment lifespan and reduce thermal-related failures.

Technical Specifications and Performance Characteristics

We engineered the Honeywell 51199947-175 to deliver consistent airflow while maintaining quiet operation and long service life. The following specifications detail its operational capabilities:

Robust Airflow for Effective Cabinet Cooling

The 51199947-175 generates an impressive 175 CFM of airflow, making it suitable for cabinets containing multiple heat-generating components. This substantial air movement creates positive pressure within the enclosure, forcing warm air out through exhaust vents while drawing cooler ambient air through intake filters. Consequently, you maintain consistent internal temperatures even when ambient conditions approach the module’s upper operating limit.

We incorporated dual ball bearings into this fan assembly to ensure reliable operation over extended periods. Unlike sleeve bearings that can wear quickly in high-temperature applications, ball bearings maintain their integrity throughout the 60,000-hour service life. This longevity translates to fewer maintenance interventions and reduced downtime for your control systems.

Precision Engineering for Industrial Environments

The Honeywell 51199947-175 features a compact 120 mm x 120 mm x 38 mm form factor that fits standard cabinet cutouts. This standardized size allows for straightforward replacement of existing fans without cabinet modifications. The flush-mount design with an integrated grille protects fan blades from accidental contact while maintaining unrestricted airflow.

Operating on standard 115 VAC power, this fan assembly integrates easily into existing control cabinet wiring schemes. The pre-wired flying leads of 300 mm length provide sufficient slack for connections to terminal blocks or power distribution points. You can therefore install the 51199947-175 quickly without specialized tools or custom cable fabrication.

Thermal Protection and System Reliability

Heat represents one of the primary enemies of electronic longevity and reliability. The Honeywell 51199947-175 actively mitigates this risk by maintaining consistent airflow across heat-generating components such as power supplies, processors, and I/O modules. For similar industrial thermal management components, you might also examine the specifications of the RMS TSG TZ C Static Trip protection device available through industrial equipment suppliers.

The fan assembly operates across a wide temperature range of -20°C to +70°C, accommodating installations from unheated warehouses to warm manufacturing floors. With only 18 W power consumption, this cooling solution adds minimal load to your cabinet’s power budget while delivering substantial cooling capacity. The low 45 dBA noise level ensures comfortable working conditions for personnel in nearby areas.

Optional Filtration for Enhanced Protection

While the base 51199947-175 provides IP20 protection suitable for many indoor applications, you can enhance its capabilities with optional filter kits. Adding intake filtration raises the assembly’s protection to IP54, preventing dust and particulate ingress in dirtier environments. This filtration proves essential for installations in woodworking facilities, grain handling operations, or cement plants where airborne contaminants would otherwise accumulate on sensitive electronics.

The filter media utilizes open-cell foam that traps particles while minimizing airflow restriction. You can clean or replace these filters during routine maintenance cycles, ensuring the Honeywell 51199947-175 continues delivering rated airflow throughout its operational life. This maintainability extends the useful life of both the fan assembly and the protected electronic components within the cabinet.
