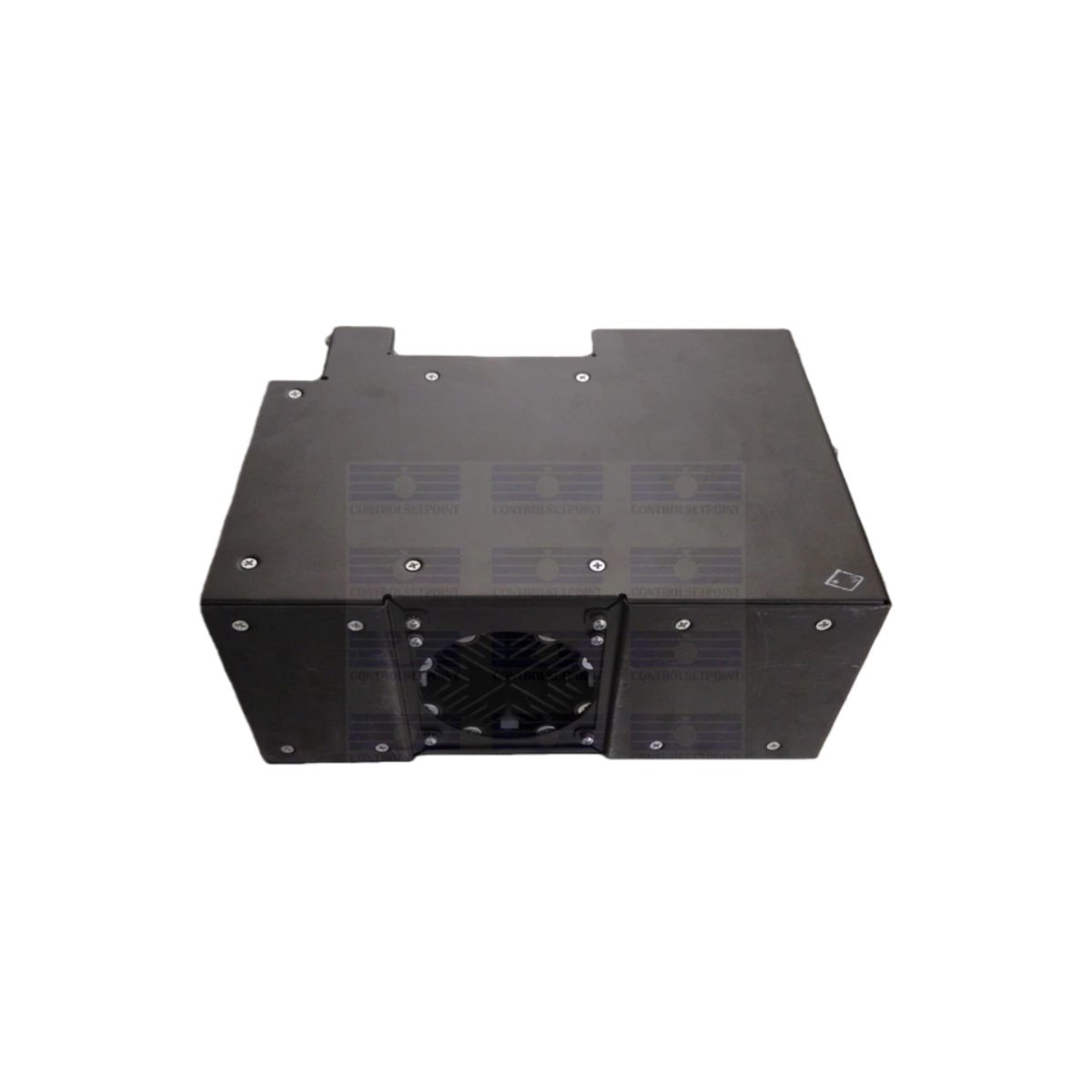

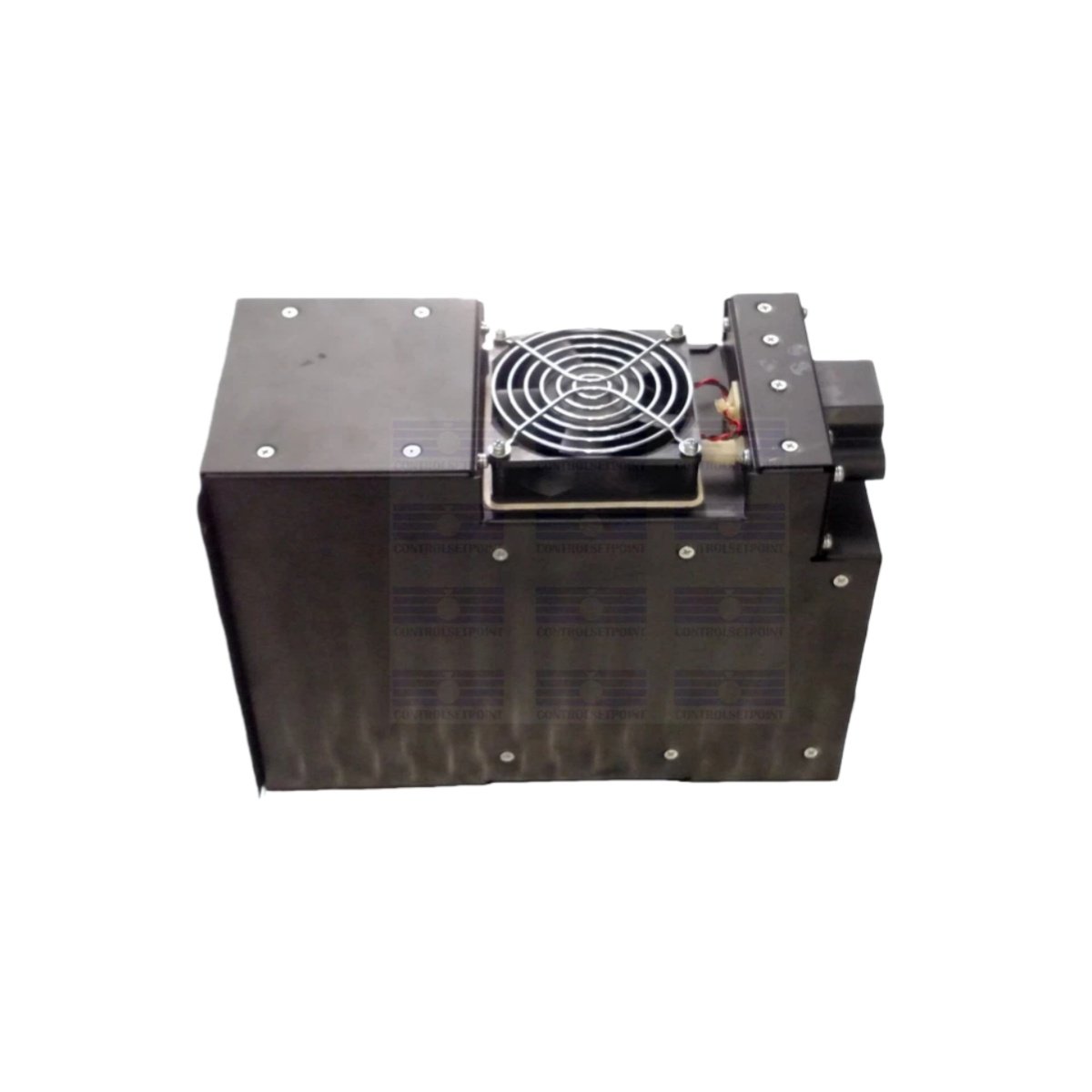

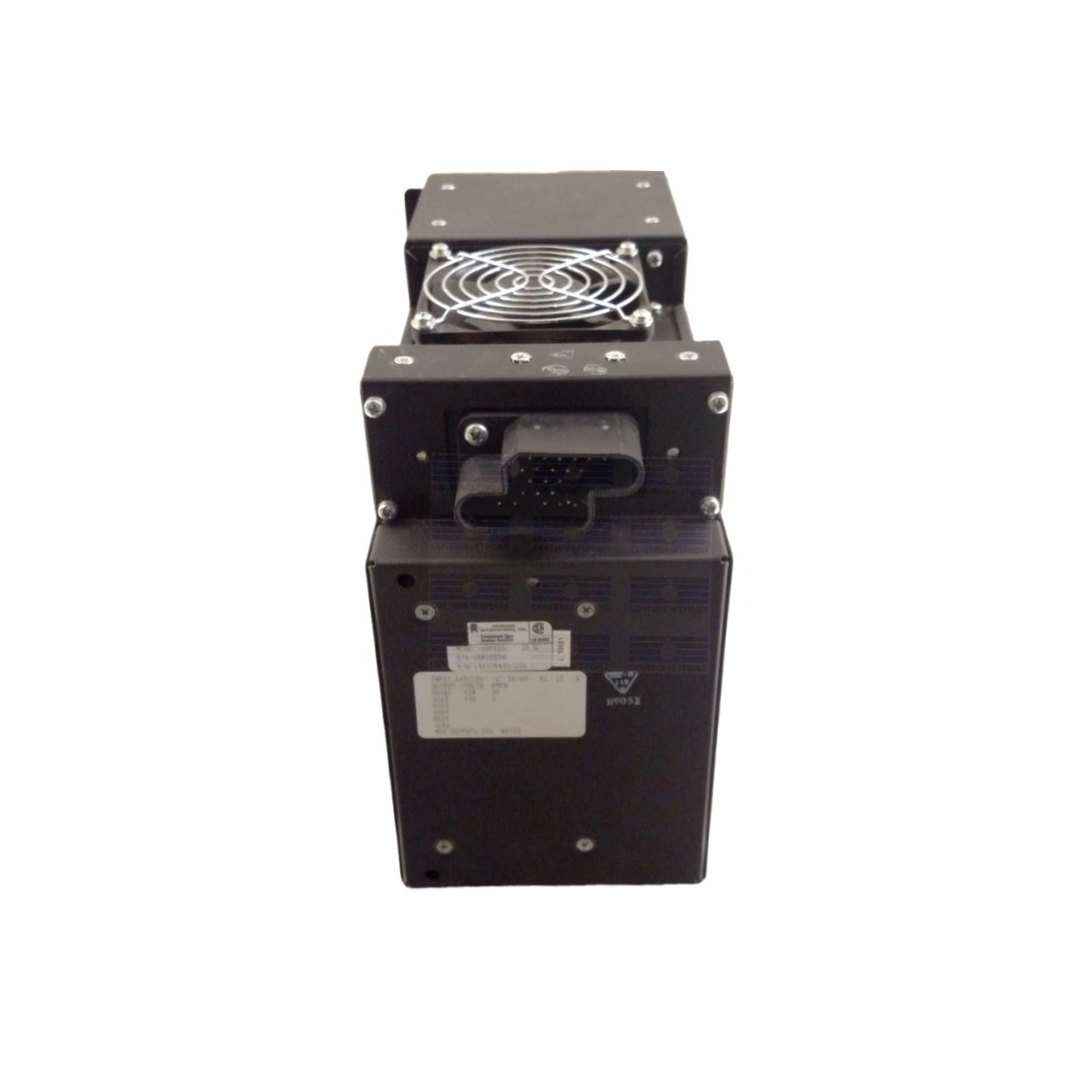

The Honeywell 51109456-200 delivers reliable AC-to-DC power conversion for demanding industrial automation applications. We engineer this high-output power supply to support control systems requiring stable 15-amp continuous current. Its universal input design accepts worldwide AC voltages without manual switching or configuration changes. This unit ensures your critical PLC components and I/O modules receive clean, regulated power at all times.

Key Features and Operational Benefits

This power supply provides substantial 536-watt output capacity through an efficient switch-mode design topology. The Honeywell 51109456-200 automatically accepts either 115-volt or 230-volt AC inputs at 50 or 60 Hertz frequencies. Consequently, facilities operating in different regions can standardize on a single power supply model worldwide. Furthermore, the robust construction includes built-overload and short-circuit protection for connected equipment safety.

Detailed Technical Specifications

Manufacturers construct the Honeywell 51109456-200 using industrial-grade components for maximum reliability in continuous operation. The power supply measures approximately 200 millimeters in height, 150 millimeters in width, and 100 millimeters in depth. Its substantial heat sink design enables full 536-watt output without requiring forced-air cooling in most installations. Additionally, the unit weighs approximately 2.5 kilograms due to its heavy-duty transformer and filtering components.

Universal Input and Global Compatibility

The 51109456-200 simplifies global machine building through its universal AC input voltage range. You can connect this power supply to 115 VAC North American circuits or 230 VAC European installations without any adjustments. This auto-ranging capability eliminates the risk of incorrect voltage selection during installation or commissioning. Moreover, the wide 50/60 Hz frequency acceptance ensures stable operation regardless of regional power grid specifications.

Robust Construction for Industrial Environments

Engineers designed the Honeywell 51109456-200 to withstand the rigors of factory floor installations and control panels. Its metal enclosure provides both mechanical strength and effective electromagnetic interference shielding. The unit’s convection-cooled design eliminates fan failures, a common reliability issue with forced-air cooled power supplies. Therefore, this power supply delivers years of maintenance-free operation in continuous industrial applications.

Output Capacity and Power Distribution

The 51109456-200 delivers ample 536 watts of power through its 15-amp continuous output capacity. This substantial current supports multiple PLC racks, I/O modules, field sensors, and communication interfaces simultaneously. For example, a typical configuration might power a main controller, three remote I/O banks, and several analog input modules. Consequently, system designers can simplify panel layouts by using this single high-capacity supply.

Protection Features and System Safety

Built-in protection circuits safeguard both the Honeywell 51109456-200 and your connected control equipment. The unit immediately shuts down during overload conditions, preventing damage to downstream components. Automatic recovery resumes normal operation once the fault condition clears and stabilizes. Additionally, internal over-voltage protection clamps output spikes to safe levels during transient events or regulator failures.

Installation Guidelines and Best Practices

Proper installation ensures optimal performance from your Honeywell 51109456-200 power supply over its long service life. First, mount the unit vertically with adequate clearance around the heat sink for unrestricted airflow. Next, use appropriately sized wiring for the 15-amp output current to minimize voltage drop. Finally, connect the chassis ground terminal to your panel ground bus for safe operation and noise reduction.

Maintain System Reliability with Genuine Honeywell Power

Choosing the genuine Honeywell 51109456-200 guarantees reliable power for your critical automation systems. Aftermarket power supplies often lack the precise voltage regulation and noise filtering of original Honeywell units. Therefore, always source this power supply from authorized distributors to ensure authentic product quality. For additional control system components, explore our selection of Honeywell PLC modules and I/O hardware similar to the RMS-TSG-TZ-C Static Trip Unit.
