Overview

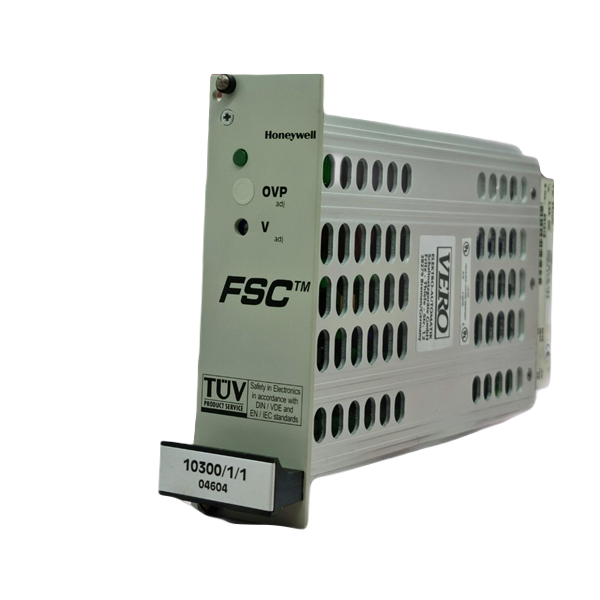

The Honeywell 10300/1/1 Converter Module delivers a stable 5 Vdc output from the FSC system’s 24 Vdc supply, with galvanic isolation. Moreover, it ensures safe operation for all FSC modules while minimizing voltage fluctuations during startup or maintenance.
Designed for industrial control environments, this module integrates seamlessly into redundant FSC configurations, supporting continuous system reliability.
Functional Highlights
- Galvanic Isolation: Protects FSC modules from voltage interference and improves system safety.
- Inrush Current Limiter: Built-in NTC resistor prevents voltage dips during startup or replacement.
- Redundant Operation Support: Can operate alongside another 10300/1/1 module without interrupting system performance.
- Enhanced Reliability: Latest board layout (suffix code 04604) improves production yield without functional changes.
In addition, LED indicators provide operational status, even in partially redundant setups.
Technical Specifications
| Feature | Details |
|---|---|
| Type Number | 10300/1/1 04604 |
| Input Voltage | 24 Vdc (–15% to +30%) |
| Input Current | < 3.9 A |
| Inrush Current | < 18 A |
| Output Voltage | 5 Vdc (adjustable to 5.00 Vdc) |
| Output Current | 12 A (-5°C to 45°C), 8 A (-5°C to 60°C) |
| Ripple Content | < 40 mV p-p at full load |
| Overvoltage Protection | 5.75 Vdc |
| Efficiency | ≥ 70% |
| Space Requirement | 8 TE, 3 HE |
| Approvals | CE, TÜV, UL |
| Ambient Temperature | -5°C to 60°C |
| LED Behavior | On in single I/O redundant configurations |
These specifications ensure reliable power conversion for FSC modules under varied industrial conditions.
Typical Applications
The 10300/1/1 module is ideal for FSC system deployments, providing isolated 5 Vdc power to internal modules. Moreover, it supports redundant system configurations and minimizes supply disturbances during maintenance or module replacement.
It is suitable for industrial automation, process control, and plant monitoring systems, ensuring stable module operation.
