Overview

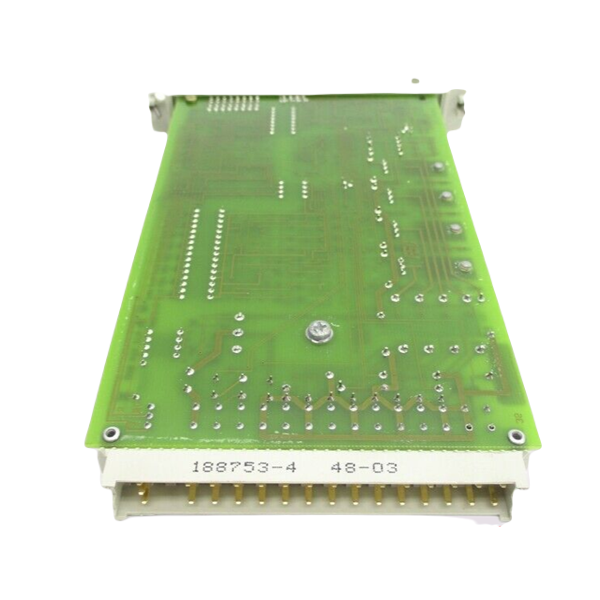

The Honeywell 10216/2/1 is a fail-safe digital output module designed for safety-critical automation systems. It provides four 24 VDC loop-monitored output channels, capable of driving resistive or inductive loads up to 24 W per channel, with a total maximum module load of 3.6 A. Each channel includes integrated loop monitoring, short-circuit detection, and support for redundant fail-safe operation, making it ideal for process automation and industrial safety applications.
Key Features
- Fail-safe design: Ensures reliability for critical applications.
- Loop monitoring: Detects broken leads and short circuits automatically.
- Four output channels: Each rated up to 24 W, solid-state and short-circuit proof.
- Inductive load protection: Built-in suppression diode for safe operation.
- Redundant operation: Secondary de-energization via watchdog or processor.
- Diagnostics: Channel-specific LED indicators for operational status and self-tests.
- Compact form factor: Fits 4 TE / 3 HE rack space.
Technical Specifications
Power Requirements
- 5 VDC: 15 mA
- 24 VDC Internal: 50 mA
- 24 VDC External (no load): 15 mA
Outputs
- Number of Channels: 4
- Output Type: 24 VDC solid-state source
- Max Channel Current: 1 A
- Max Module Load: 3.6 A
- Max Load Inductance: 0.5 H
- Max Capacitive Load: 1 µF
- Voltage Drop: < 1.3 V at 1 A
- Off-state Current: < 0.1 mA
Diagnostics & Monitoring
- Lead breakage detection for each channel
- Short-circuit detection for load integrity
- LED indicators per channel for operational feedback
Loop Monitoring Current Settings
| Load (W) | Current Range (mA) | Required Range-setting Module |
|---|---|---|
| Spare Channel | 4 – 16 | None |
| 0.1 – 0.39 W | 17 – 47 | 10216/A/2 |
| 0.4 – 1.1 W | 48 – 199 | 10216/A/3 |
| ≥ 4.8 W | ≥ 200 | 10216/A/4 |
Physical & Mechanical
- Space: 4 TE, 3 HE (4 HP, 3U)
- Module Code: Holes A13, C9
- Rack Code: Large Pins A13, C9
Certifications & Compliance
- CE, TÜV, UL approved
- Software Version: ≥ 3.00
Applications
- Safety-critical process automation systems
- Redundant digital output operations in industrial plants
- Loop-monitored load control for resistive and inductive devices
- Fail-safe control for oil, gas, chemical, and power industries
Note: Modules with suffix code 12401 include minor layout modifications to enhance reliability without changing functionality.
For additional details, refer to the FSC Output Modules Data Sheet.（Download PDF File Fail Safe Control Hardware Manual）
Details
| Weight | 0.3 kg |
|---|
