Product Overview

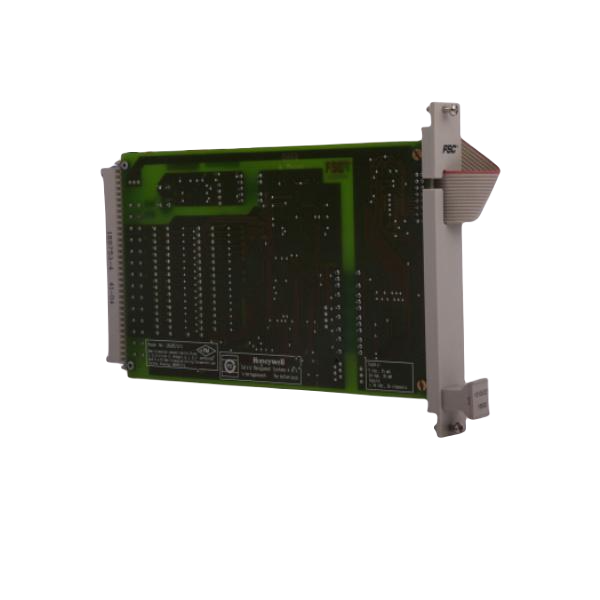

The 10105/2/1 module is engineered for precision and dependability. Each channel shares a common isolated analog 0 V reference, ensuring signal consistency and eliminating measurement drift.
It provides compatibility for various analog signal sources when paired with FTA-T-14 Field Termination Assembly or the 10105/A/1 Analog Input Conversion Module. Moreover, this conversion enables current inputs of 0–20 mA to be adapted into compatible voltage levels, simplifying integration into existing control architectures.
For instance, when measuring analog signals from thermocouples or PT-100 sensors, users can first convert them into 0(4)–20 mA signals through dedicated converters, and then connect them via the FTA-T-14 or 10105/A/1 for optimal performance.
Functional Advantages
- High Accuracy and Resolution: Built with a 12-bit A/D converter and ±1 LSB accuracy for precise measurements.
- Safety-Certified Performance: Approved under CE, TÜV, FM, and UL standards, rated for AK1–AK6 safety classes.
- Excellent Channel Isolation: Cross talk between channels is rated at > 60 dB, ensuring clean and independent signal readings.
- Flexible Power Design: Operates efficiently with both 5 V DC (35 mA) and 24 V DC (35 mA) supply inputs.
- Easy Integration: Compact 4TE / 3HE (4HP, 3U) form factor fits seamlessly into 19-inch racks, supporting modular system expansion.
Technical Specifications
| Category | Specification |
|---|---|
| Type Number | 10105/2/1 (16900) |
| Input Channels | 16 Analog Inputs |
| Input Range | 0–4.1 V |
| Input Resistance | > 1 MΩ |
| A/D Converter Resolution | 12-bit |
| Module Accuracy | < 0.25% |
| A/D Inaccuracy | ±1 LSB |
| External Voltage Readback | 0–4.1 V Range, 1 MΩ Typical Resistance |
| Safety Class | AK1–AK6 |
| Cross Talk (Isolation) | > 60 dB |
| Power Requirement | 5 V DC / 35 mA, 24 V DC / 35 mA |
| Approvals | CE, TÜV, FM*, UL |
| Rack Mounting | 19-inch Rack, 4TE, 3HE (4HP, 3U) |
| Max Input Signal | ±36 V DC |
| Key Coding | Holes A5, C25; Large Pins A5, C25 |
System Integration Notes
The module’s flexible configuration supports both voltage and current-based inputs, providing engineers with a broad range of application options. Its integration with FTA-T-14 and 10105/A/1 modules enables seamless conversion for 0–20 mA inputs, making it ideal for process monitoring and safety control systems.
In addition, its fail-safe technology and robust isolation design ensure consistent operation under high electrical stress and environmental fluctuations.
FAQ
Q1: Is the 10105/2/1 Analog Input Module original and new?
Yes, all units are brand new and original from the manufacturer. We provide verified stock with full traceability.
Q2: How long is the typical delivery time?
Orders usually ship within 3 days to 2 weeks, depending on quantity and location. We typically use DHL, FedEx, or UPS for reliable international delivery.
Q3: Can the 10105/2/1 handle 0–20 mA current inputs directly?
Not directly. You need to use the FTA-T-14 or 10105/A/1 Analog Input Conversion Module to convert the current signal into the required 0–4 V voltage level.
Q4: What is the warranty policy?
We support returns within 30 days for verified quality issues.
