Overview

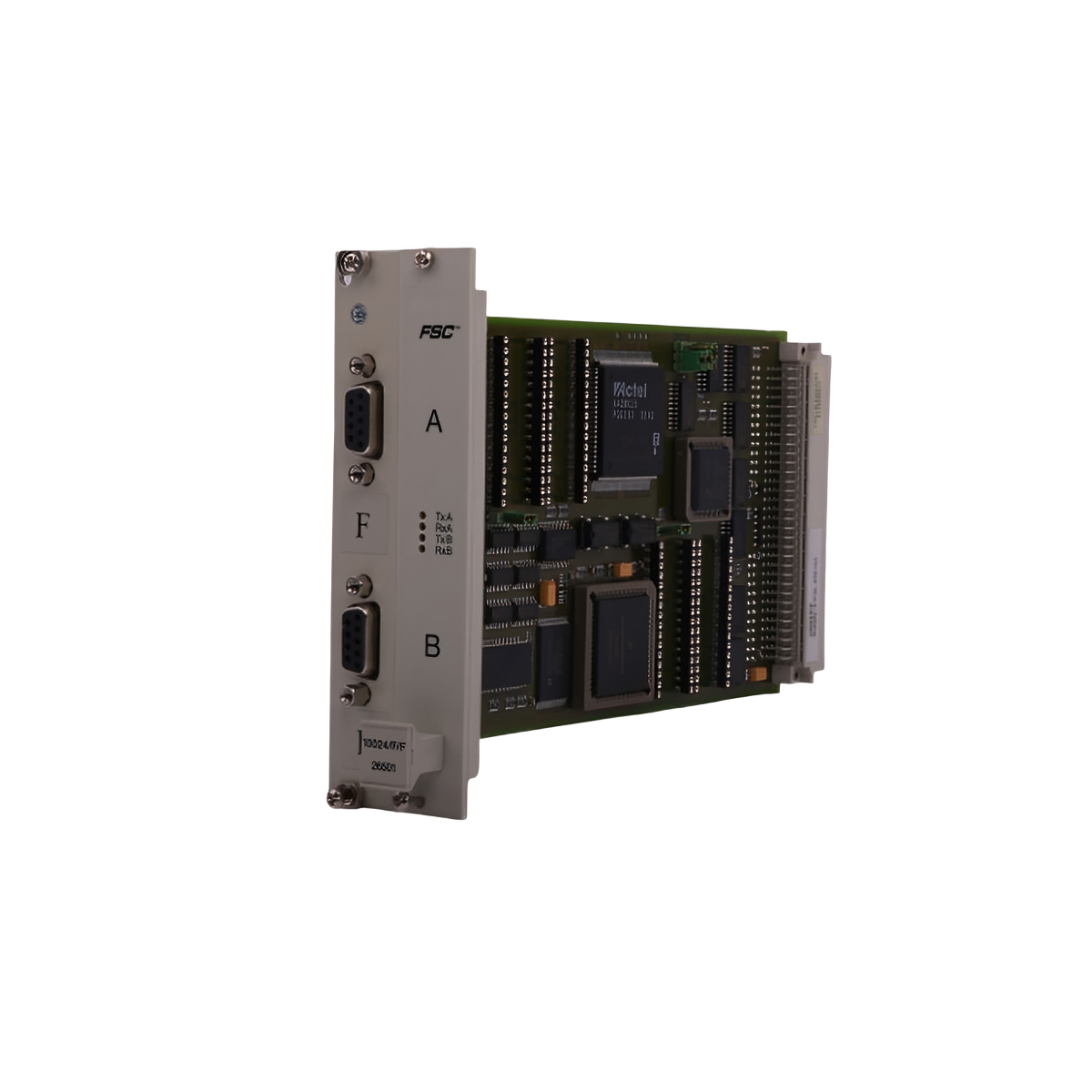

The Honeywell 10024/F/F Enhanced Communication Module (ECM) provides reliable, fault-tolerant communication for industrial systems. It features two tri-state RS-232C interfaces, ideal for connecting distributed control systems (DCS) or user stations to FSC systems. Moreover, galvanic isolation protects the module and connected devices, ensuring safe operation in challenging industrial environments. In addition, the ECM supports redundant setups to maintain continuous communication even if one interface fails.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | 10024/F/F 26500 |
| Part Number | 3400265 |
| Approvals | CE, UL, TÜV |
| Software Version | ≥ 2.78f (configuration ≥ 530) |
| Space Requirements | 8 TE, 3 HE (8 HP, 3U) |
| Power Supply | 5 V DC, 475 mA |
| Ripple Content | < 50 mV p-p |
| Hot Swap | Not supported (do not remove while powered) |
Communication Specifications
| Interface | Specification |
|---|---|
| Type | Tri-state RS-232C F-Interface |
| Maximum Baud Rate | 38.4 Kbaud |
| Connector | Female, 9 pins |
| Cable Length | 15 m (49.2 ft) @ 19.2 Kbaud, 10 m (32.8 ft) @ 38.4 Kbaud |
| Galvanic Isolation | > 6 kV |
F-Interface Features
- Applications: Connects FSC user stations or DCS to FSC systems, supporting redundant configurations.
- Safety & Isolation: Galvanic isolation allows safe connection to 230 Vac devices per IEC 61010 standards.
- Fault Tolerance: Onboard watchdog disconnects communication if software hangs or hardware resets occur.
- Redundancy: Central parts manage which interface responds, ensuring continuous communication if one fails.
Model and Suffix Codes
| Model | Description |
|---|---|
| 10024/F/F | Enhanced Communication Module with dual tri-state RS-232C interfaces |
Applications
- Industrial Automation: Connects FSC systems to user stations or DCS for process monitoring.
- Safety Systems: Ensures fault-tolerant communication in fail-safe control environments.
- Redundant Configurations: Maintains uninterrupted communication for mission-critical processes.
FAQ
Q1: Is the 10024/F/F ECM brand new?
Yes, all units are 100% original Honeywell 10024/F/F modules, tested for performance and reliability.
Q2: What is the typical delivery time?
Orders ship within 3 days to 2 weeks depending on quantity. DHL, FedEx, and UPS are standard carriers.
Q3: Can this module operate in redundant setups?
Yes, the ECM supports dual F-interfaces with automatic failover for continuous communication.
Q4: How is safety ensured?
Galvanic isolation protects connected devices up to 6 kV, complying with IEC 61010 standards.
Details
| Weight | 0.3 kg |
|---|
