Product Overview

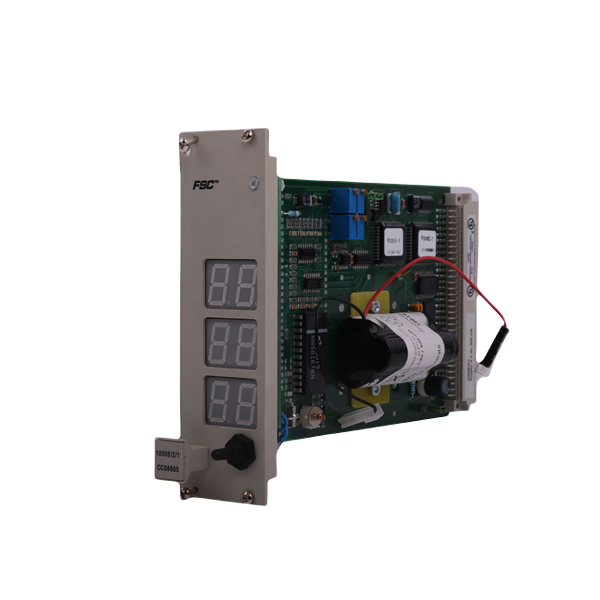

The Honeywell 10006/2/1 Diagnostic and Battery Module (DBM) serves as a critical diagnostic tool for the Fail-Safe Controller (FSC) system. It provides real-time information, helping users detect faults within the system and ensuring accurate monitoring of battery and temperature levels. This module displays fault messages that indicate the type, rack, and position of any faulty modules, allowing for efficient troubleshooting.
In addition to diagnostic functionality, the 10006/2/1 DBM includes a real-time clock that tracks the current date and time, which can be utilized by the application program. Temperature data from two independent sensors is displayed, alongside the system’s 5 Vdc and battery voltage levels. Users can configure alarm and trip points for temperature to further enhance the system’s reliability.
A front-facing switch allows users to toggle between retrieving system or diagnostic information, making it simple to access crucial data as needed.
Key Features
- Diagnostic Display: Displays fault messages related to the type, rack, and position of faulty modules.
- Real-Time Clock: Tracks and displays the current date and time, with minimal drift (<1 sec/day).
- Temperature Monitoring: Monitors temperature via two independent sensors and allows configurable alarm and trip points.
- Battery Voltage Monitoring: Measures and displays 5Vdc and battery voltage levels for continuous system health monitoring.
- Battery Backup: Ensures reliable power for backup capabilities with a NiCad battery pack.
- Switch Control: Toggle between system or diagnostic information retrieval via a front-facing switch.
Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Type Number | 10006/2/1 08804 |
| Approvals | CE, TÜV, UL |
| Software Version | ≥ 2.90 |
| Space Requirements | 8 TE, 3 HE (= 8 HP, 3U) |
| Time Drift | < 1 sec/day |
Power Requirements
| Specification | Details |
|---|---|
| Power Input | 5 Vdc, 300 mA |
| Ripple Content | < 50 mV p-p |
Battery Specifications
| Specification | Details |
|---|---|
| Battery Type | NiCad battery pack 3.6 V, 600 mAh |
| Backup Capacity | 0.5 Ah |
Battery Pack Versions
| Version | Description |
|---|---|
| Suffix Code 08801 | Improved noise immunity |
| Suffix Code 08802 | Special battery holder for easier exchange |
| Suffix Code 08803 | Higher reliability and temperature range (up to 65°C / 148°F) |
| Suffix Code 08804 | Easy battery exchange via connectors |
Notes
- If the cabinet temperature exceeds 55°C (131°F) for over 24 hours, the batteries may be damaged and lose their backup capabilities.
- Do not remove or replace the module while the power to its Central Part is on.
Functionality Overview
- Diagnostic Display: View fault messages that indicate the faulty module’s type, rack, and position.
- Real-Time Clock: Keep track of the current date and time with drift under 1 second per day.
- Temperature Monitoring: Displays temperature from two sensors and allows for configurable alarm and trip points.
- Battery Voltage Monitoring: Displays 5 Vdc and battery voltage for effective monitoring.
FAQ
Q1: What does the 10006/2/1 DBM monitor?
A1: The 10006/2/1 DBM monitors temperature, 5 Vdc, and battery voltage. It also helps display fault messages from the system.
Q2: How does the 10006/2/1 DBM handle battery backup?
A2: The module uses a NiCad battery pack (3.6 V, 600 mAh) with a backup capacity of 0.5 Ah, ensuring reliable performance during power outages.
Q3: Can I replace the batteries easily?
A3: Yes, modules with suffix code 08804 offer easy battery exchange via connectors.
Q4: What happens if the cabinet temperature exceeds 55°C (131°F)?
A4: If the temperature exceeds this limit for more than 24 hours, the batteries may be damaged and lose their backup capabilities.
Q5: Is there any specific care needed when replacing the module?
A5: Avoid replacing the module while the power to its Central Part is still on.
Details
| Weight | 0.25 kg |
|---|
