Core System Monitoring and Backup Function

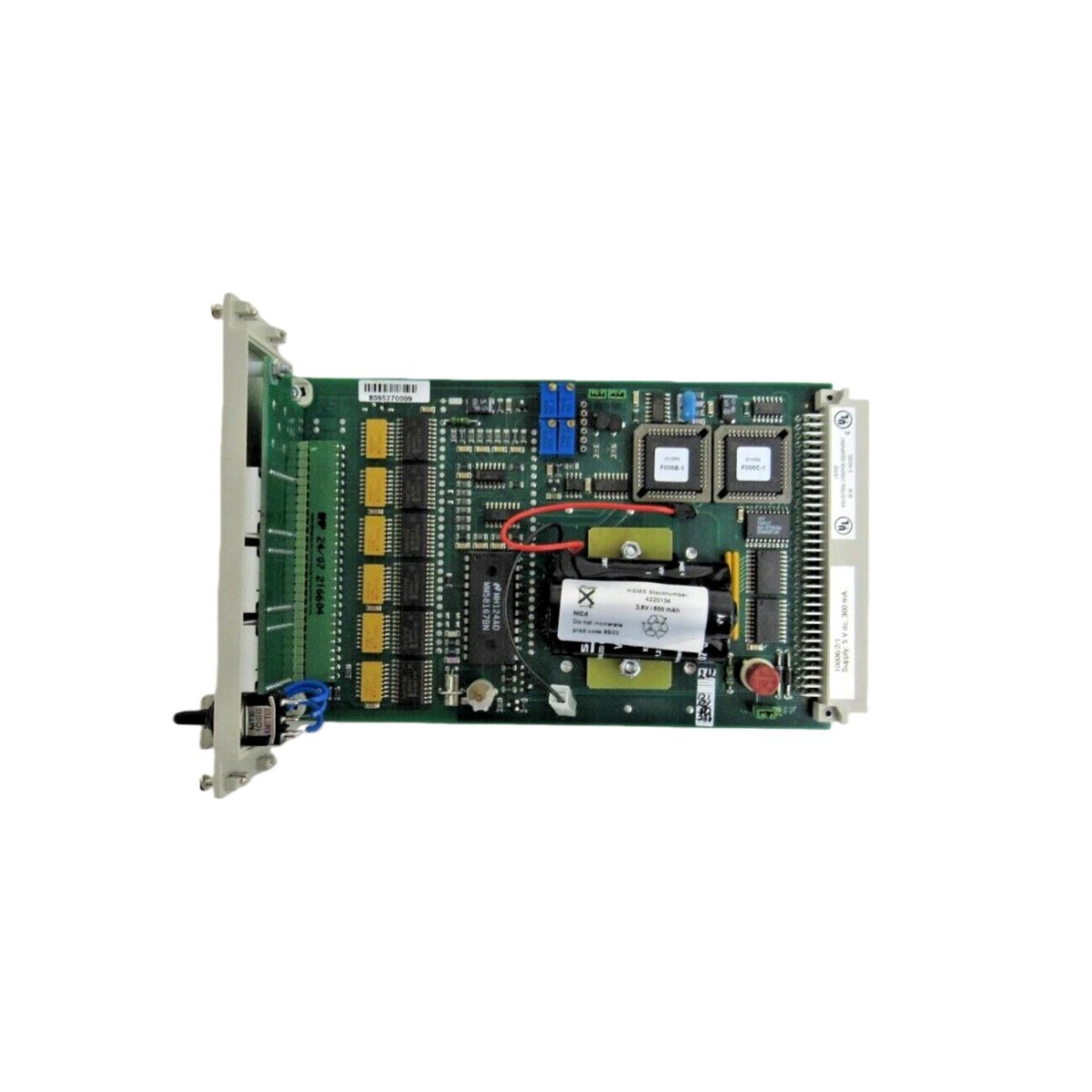

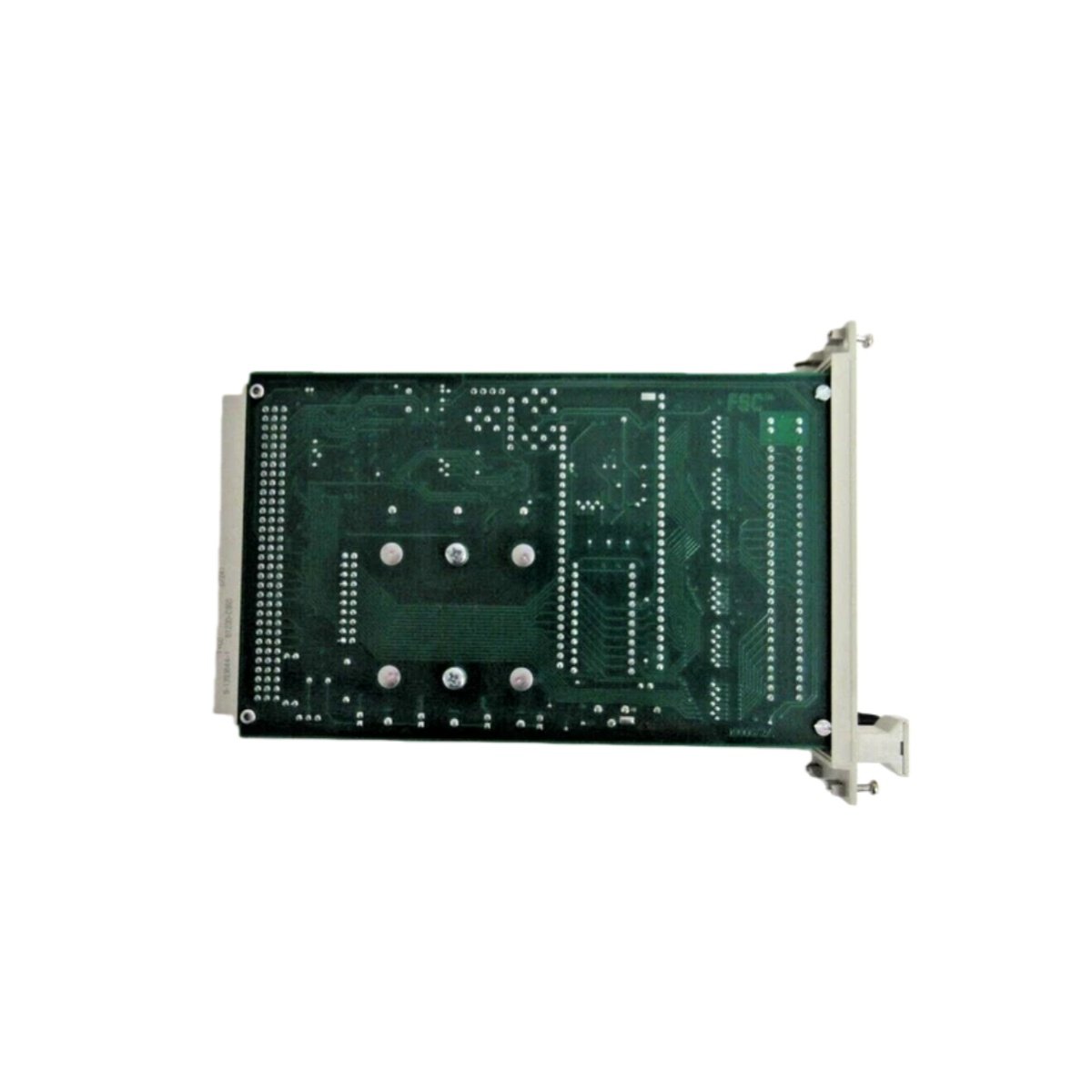

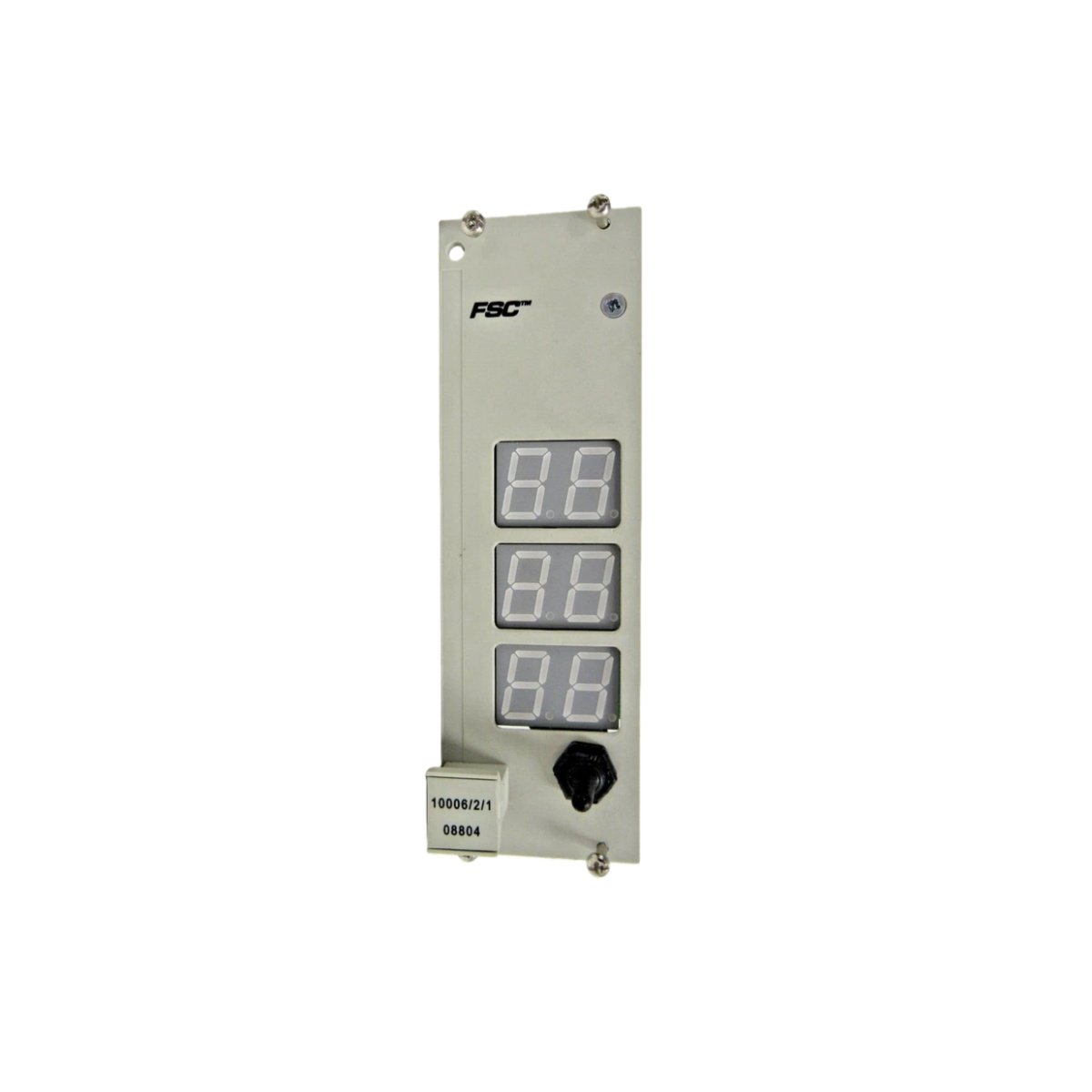

The Honeywell 10006/2/1-008804 is a Diagnostic and Battery Module (DBM) for safety systems. It provides a cost-effective diagnostic interface for monitoring the connected FSc (Fail-Safe Control) system. This module also incorporates a reliable backup power source to maintain critical timing functions. Consequently, it ensures continuous system supervision and data integrity during primary power transitions.

Enhanced Design and Key Features

Modules with the -008804 suffix feature improved electrical noise immunity for harsh environments. It maintains exceptional time-keeping accuracy with a drift of less than one second per day. The DBM carries major international approvals including CE, TÜV, and UL for safety-critical use. Furthermore, its compact design requires only 8 HP (horizontal pitch) of space in a 3U high rack slot.

Detailed Technical Specifications

This module operates from a clean 5VDC supply and includes a maintenance-free backup battery. Its design prioritizes reliability and precise diagnostics for the Honeywell safety platform. The following table details its complete electrical, physical, and performance parameters.

Integration and Application Notes

Install the module in its designated slot within the FSc system rack for proper operation. The integrated 0.5 Ah battery supports essential functions during brief main power losses. The Honeywell 10006/2/1-008804 DBM is a crucial component for maintaining certified safety system performance. It is essential for applications demanding high availability and diagnostic visibility in process automation.
