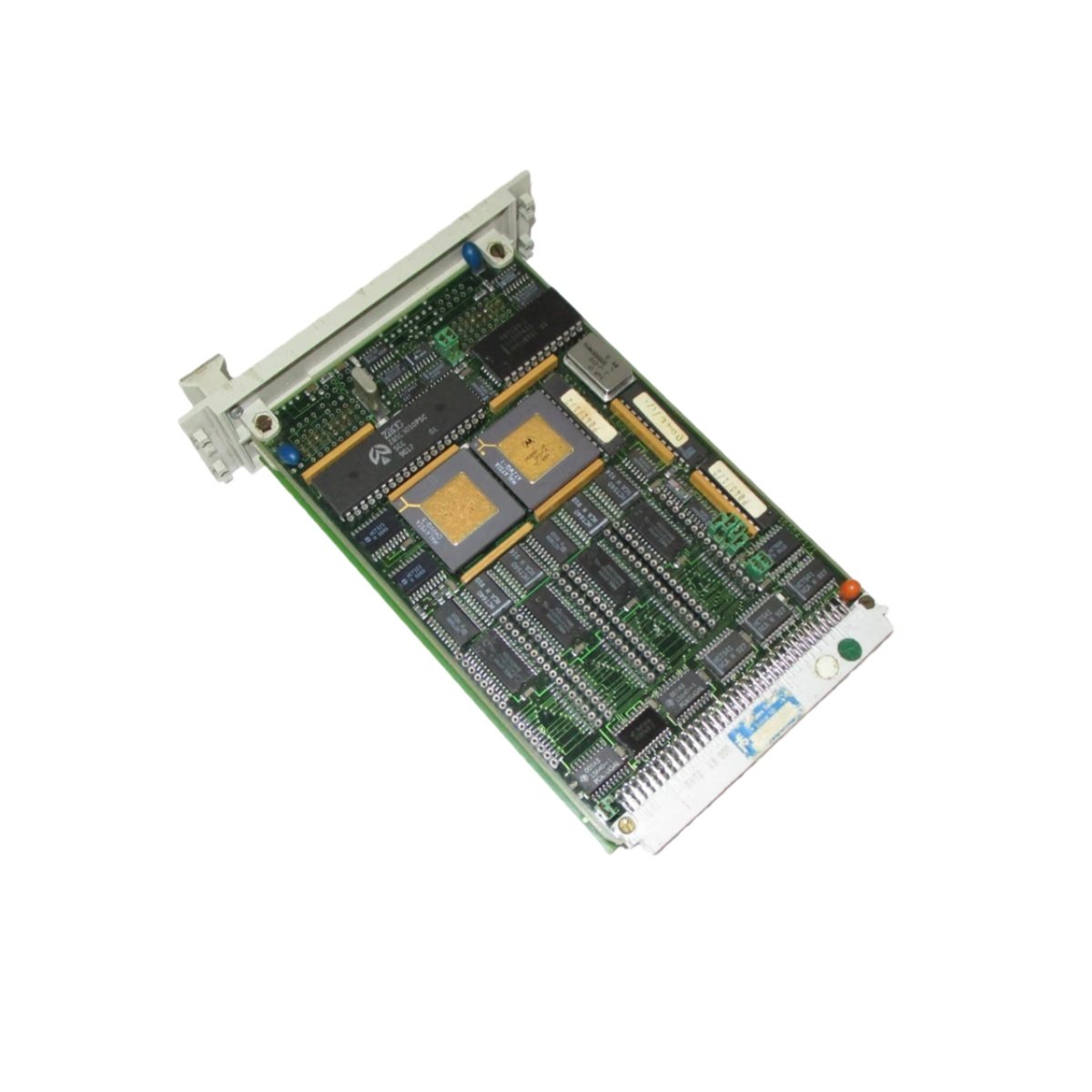

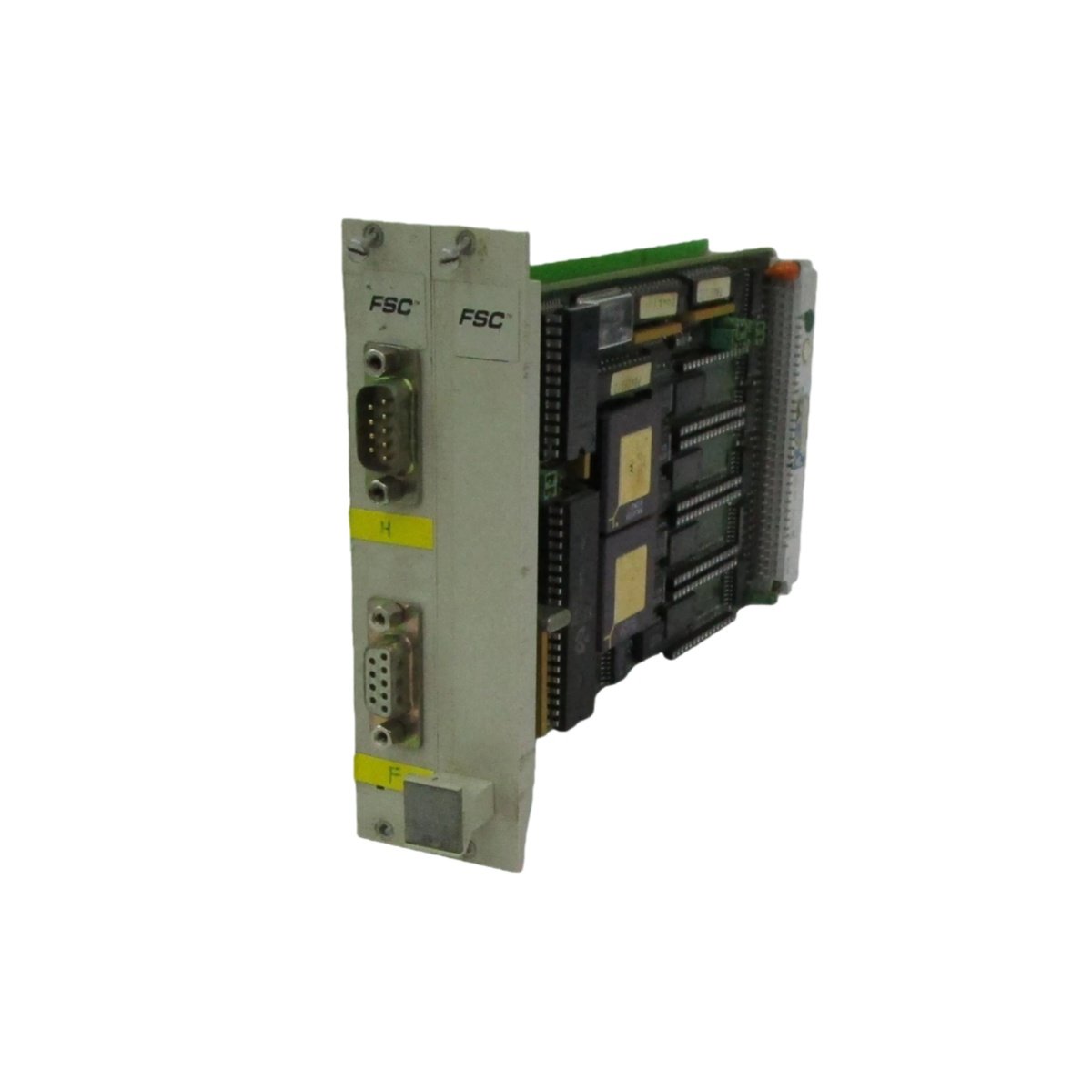

The Honeywell 10004/1/1 communication module links safety controllers to plant networks. Specifically designed for the FailSafe Controller (FSC) platform, this module provides robust, dual-channel data exchange. Consequently, it ensures high availability for critical safety and process information. System integrators rely on its certified design for SIL3-rated safety instrumented functions.
Detailed Technical Specifications
The Honeywell 10004/1/1 module integrates into a standard FSC system rack. It features multiple industrial interfaces for maximum compatibility. Moreover, its robust construction guarantees performance in demanding operational environments.
The following table details its core physical and functional parameters:
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Honeywell, 10004/1/1 |
| Module Type | FSC Series Communication Module |
| Compatible System | Honeywell FailSafe Controller (FSC) |
| Physical Dimensions | Standard 3U FSC Rack Module |
| Module Weight | 1.2 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Primary Interfaces | Redundant Ethernet, RS-485, System Bus |
| Supported Protocols | Modbus TCP/RTU, OPC, Honeywell Safety Protocol |
Design Features and Functional Role
This module establishes secure communication between FSC controllers and distributed systems. Its dual-channel architecture provides essential redundancy for continuous data flow. Therefore, it maintains system integrity even during a single communication path failure.
The Honeywell 10004/1/1 also offers broad protocol support for flexible integration. Its design includes EMI resistance for reliable operation in industrial settings. Finally, this module delivers the high reliability required for mission-critical safety applications.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 145 × 100 × 40 mm |
