Product Overview

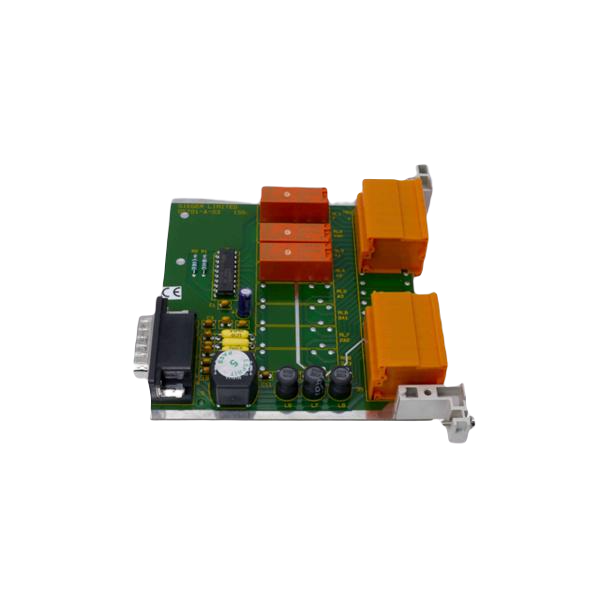

The Honeywell 05701-A-0327 Double SPCO Relay Card is designed to provide reliable switching and control in industrial environments. It features two Single Pole Single Throw (SPST) contacts, offering versatility for electrical circuit switching. Additionally, the Fault Single Pole (FSP) hangover relay is included, triggering an alarm signal in case of faults, ensuring safety and efficient operation.
Key Features
- Double SPCO Relay: Includes two SPST contacts for reliable switching.
- Fault Signal Relay: Provides a Fault Single Pole (FSP) hangover relay for fault alarms.
- Selectable Operation Modes: Latching/non-latching and normally energized/de-energized modes.
- Efficient Power Consumption: Field Interface Card: 0.0W, Double SPCO Card: 0.8W, Triple SPCO Card: 1.0W.
- Compact Design: Ideal for space-constrained industrial systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 05701-A-0327 |
| Relay Contacts | 5A at 250VAC / 32VDC (non-inductive) |
| Relay Operation Modes | Selectable: Latching/non-latching, Normally energized/de-energized |
| Power Consumption | Field Interface Card: 0.0W, Double SPCO Card: 0.8W |
| Terminals | Accepts cable sizes up to 2.5mm² (14AWG) |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Operating Humidity | 20-99% RH (non-condensing) |
Weight and Dimensions
| Card Type | Weight |
|---|---|
| Field Interface Card | 95g |
| Double SPCO Card | 155g |
| Triple SPCO Card | 205g |
| Triple DPCO Card | 245g |
| High Integrity Card | 255g |
Approvals
- Compliant with EN50270 standards, ensuring safety and reliability in industrial applications.
Frequently Asked Questions (FAQ)
Q1: What relay contacts are available in the Honeywell 05701-A-0327?
A1: The 05701-A-0327 offers 5A at 250VAC / 32VDC (non-inductive) relay contacts for reliable switching in industrial applications.
Q2: Does the card support multiple operation modes?
A2: Yes, the 05701-A-0327 supports selectable operation modes, including latching/non-latching and normally energized/de-energized.
Q3: What is the power consumption of the Honeywell 05701-A-0327?
A3: The 05701-A-0327 consumes 0.8W of power, ensuring low energy usage during operation.
Q4: What is the terminal size compatibility for the card?
A4: The 05701-A-0327 accepts cable sizes up to 2.5mm² (14AWG), allowing easy integration into existing systems.
Q5: What is the operating temperature range for this relay card?
A5: The 05701-A-0327 operates within the temperature range of -5°C to +55°C, making it suitable for a wide range of industrial environments.
Details
| Weight | 0.1 kg |
|---|
