Overview

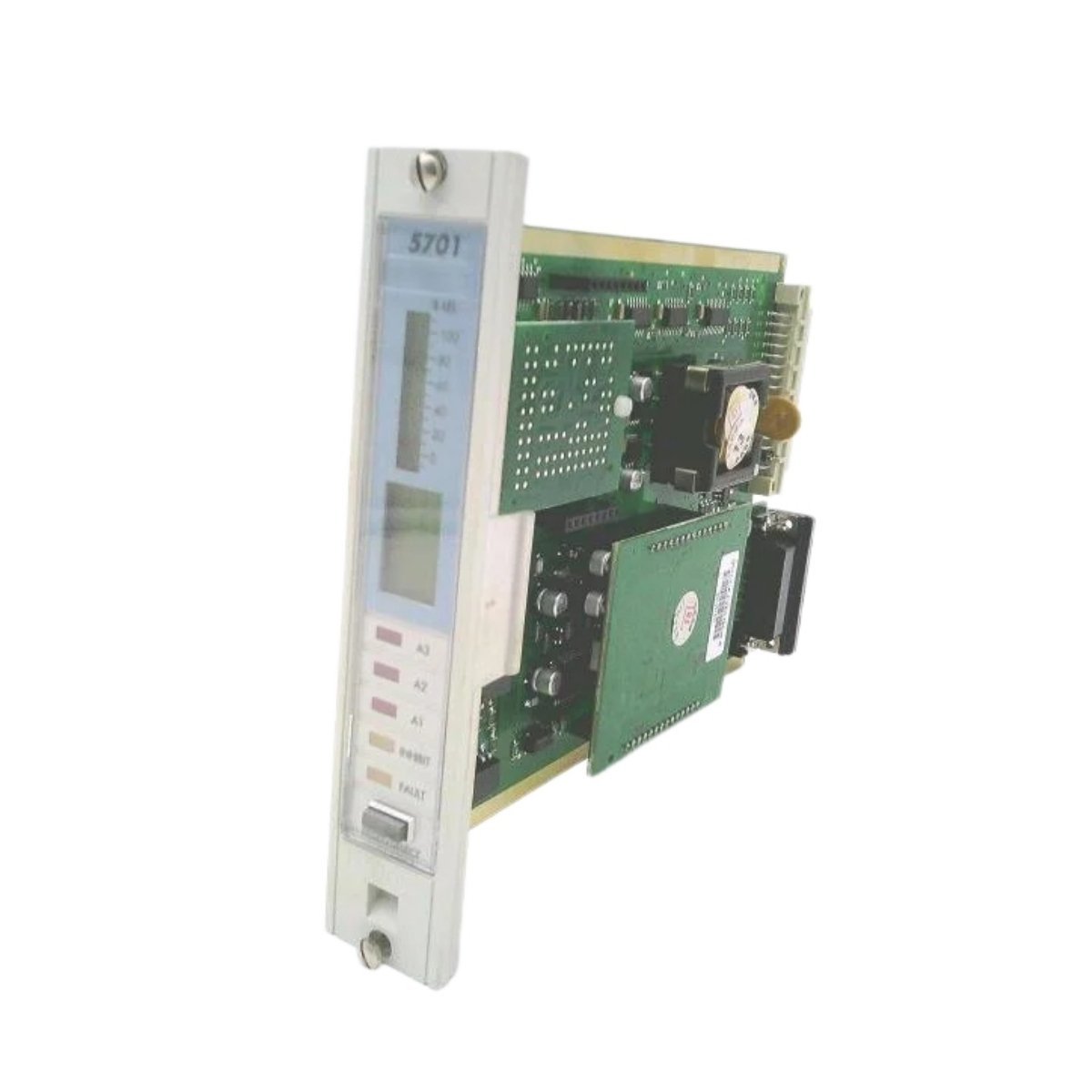

The Honeywell 05701-A-0301 is a high-precision Single Channel Control Module designed for reliable signal management and measurement in industrial process control systems. It efficiently interfaces with catalytic sensors, providing stable and accurate signal conversion for monitoring applications. With its compact structure and durable design, the 05701-A-0301 ensures consistent performance even under demanding environmental conditions.
Built by Honeywell USA, this module operates on a DC voltage range between 18V and 32V, supporting both catalytic sensor and 4–20 mA configurations. Its low power consumption and high stability make it a preferred choice for industrial plants, safety systems, and automated control networks that demand long-term accuracy.
Key Features
- Compact, lightweight design ideal for modular panel installations.
- Dual power configurations for catalytic sensor and 4–20 mA loops.
- High stability with electronic drift less than ±2% over six months.
- Rugged enclosure for enhanced reliability and long service life.
- Engineered by Honeywell for precision control in industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 05701-A-0301 |
| Brand | Honeywell |
| Product Type | Single Channel Control |
| Manufacturer | Honeywell |
| Origin | USA |
| Supply Voltage | 18–32 VDC |
| Power Consumption | 3.75 W (catalytic sensor) / 3.25 W (4–20 mA mode) |
| Electronic Drift Stability | Less than ±2% over 6 months |
| Length | 17 cm |
| Width | 2.5 cm |
| Height | 11.2 cm |
| Weight | 0.165 kg |
| Mounting Type | Panel or DIN-rail compatible |
| Operating Environment | Industrial control and monitoring systems |
Dimensions and Weight
The Honeywell 05701-A-0301 measures 17 cm (L) × 2.5 cm (W) × 11.2 cm (H) and weighs approximately 165 grams. Its slim and modular construction saves space in control panels while maintaining strong structural integrity.
Applications
- Process control and instrumentation systems
- Industrial safety monitoring
- Sensor input signal conditioning
- Automation and control panel integration
Product Origin
Country of Origin: USA
Details
| Weight | 0.165 kg |
|---|---|
| Dimensions | 170 × 25 × 112 mm |
