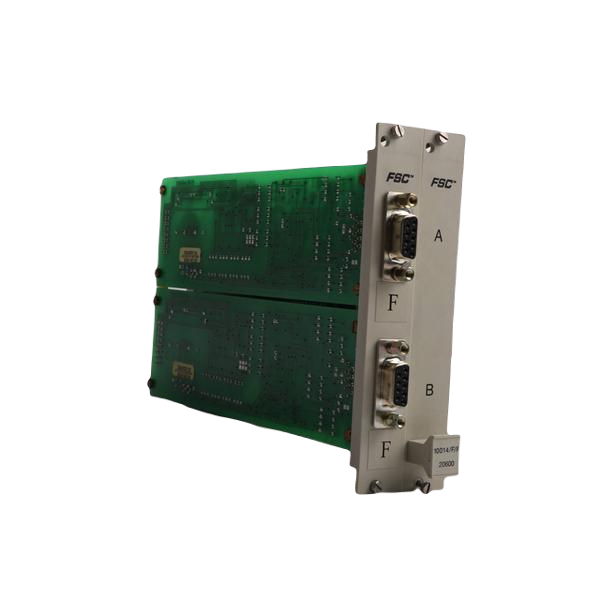

The Honeywell 10001/R/1 Vertical Bus Driver (VBD) plays a vital role in the FSC system. It directly links the Central Part (CP) to the I/O level and allows data to flow smoothly between the Central Part and the I/O modules. This connection ensures that the system operates efficiently and reliably.
Key Features
- Installation: You can install up to 6 VBDs per Central Part to expand system capacity.
- Support: Each VBD manages up to 10 Horizontal Bus Drivers (HBD) modules, providing flexible I/O control.
- Maximum Distance: The VBD maintains reliable communication up to 5 m (16.4 ft) from the I/O rack on the vertical bus.
- Modular Design: The electronic part (mainboard) and wiring part (10001/A/1) are separate, allowing you to replace the electronic part without disconnecting the vertical bus flat cable.
- Jumper Settings: You can configure VBD and CP numbers quickly:
- J1–J4: Set the VBD number
- J5–J6: Set the CP number
1：Figure 1 Front view
2：Figure 2 Module layout
3：Figure 3 Jumper setting on 10001/A/1 module for CP 1, VBD 1
Technical Specifications
| Category | Specification Details |
|---|---|
| Type Number | 10001/R/1 |
| Approvals | CE, TÜV, UL |
| Software Versions | All |
| Space Requirements | 4 TE, 3 HE (= 4 HP, 3U) |
| Power Requirements | 5 Vdc, 275 mA |
| Ripple Content | < 50 mV p-p |
Important Notes
- Caution: Do not remove or replace this module while the Central Part is powered on.
Details
| Weight | 1.2 kg |
|---|
