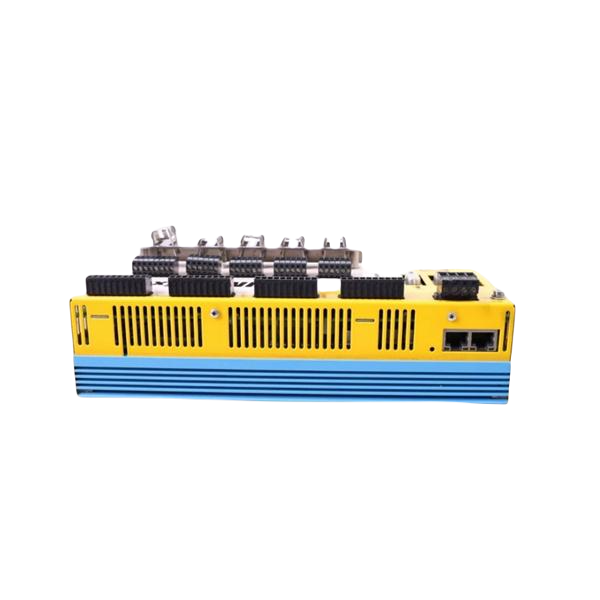

The HIMatrix F35 series from HIMA delivers a compact, TÜV-certified safety controller engineered for demanding SIL 3 applications. Built within a robust metal housing, the controller combines digital and analog I/O, high-resolution counters, and versatile communication options, ensuring safe and efficient performance in critical industries.
Key Technical Specifications
- Digital Inputs: 24 non-galvanically isolated inputs, 24 V, current sinking logic.
- Digital Outputs: 8 non-galvanically isolated outputs, 0.5A (channels 1–3, 5–7), 1A or 2A (channels 4, 8).
- Analog Inputs: 8 channels, 0–10 V unipolar or 0–20 mA with shunt.
- Counters: 2 safety-rated counters, 24-bit resolution, configurable for 5 V or 24 V input signals.
- Communication Interfaces:
- 4 x RJ-45 Ethernet ports with integrated switch.
- Fieldbus via D-sub connectors supporting PROFIBUS DP, Modbus, and RS485.
- Operating Voltage: 24 VDC, tolerance –15% to +20%.
- Power Consumption: Max. 9 A under load, 0.5 A idle.
- Temperature Range: 0°C to +60°C (extended versions available).
- Protection Level: IP20 enclosure rating.
- Dimensions: 257 mm (W) x 114 mm (H) x 97 mm (D).
- Weight: 1.2 kg standard, 1.7 kg subsea variant.
Operating Conditions
The HIMatrix F35 maintains reliability across industrial and hazardous environments, including Ex-Zone 2. With a wide voltage tolerance and efficient energy use, it supports continuous operations in safety-critical plants. Its temperature variants extend usability to –20°C for harsher environments, including subsea installations.
Model Variants and Part Numbers
The HIMatrix F35 family includes multiple configurations tailored to environmental and application needs:
| Model Variant | Description | Operating Range | Part Number |
|---|---|---|---|
| F35 01 | Standard version | 0°C to +60°C | 98 2200416 |
| F35 011 | Extended temperature range | –20°C to +60°C | 98 2200453 |
| F35 012 | Subsea variant | –20°C to +60°C | 98 2200454 |
| F35 01 SILworX | SILworX compatible standard version | 0°C to +60°C | 98 2200473 |
| F35 011 SILworX | SILworX extended temperature | –20°C to +60°C | 98 2200476 |
| F35 012 SILworX | Subsea, SILworX supported | –20°C to +60°C | 98 2200477 |
Why Choose the HIMatrix F35
The HIMatrix F35 series combines compact design with advanced safety functions, ensuring compliance with IEC 61508 and IEC 61511 standards. With scalable I/O, redundant communication options, and rugged construction, this controller secures continuous plant operation across chemical, energy, and offshore industries.
Details
| Weight | 1.2 kg |
|---|
