Product Overview

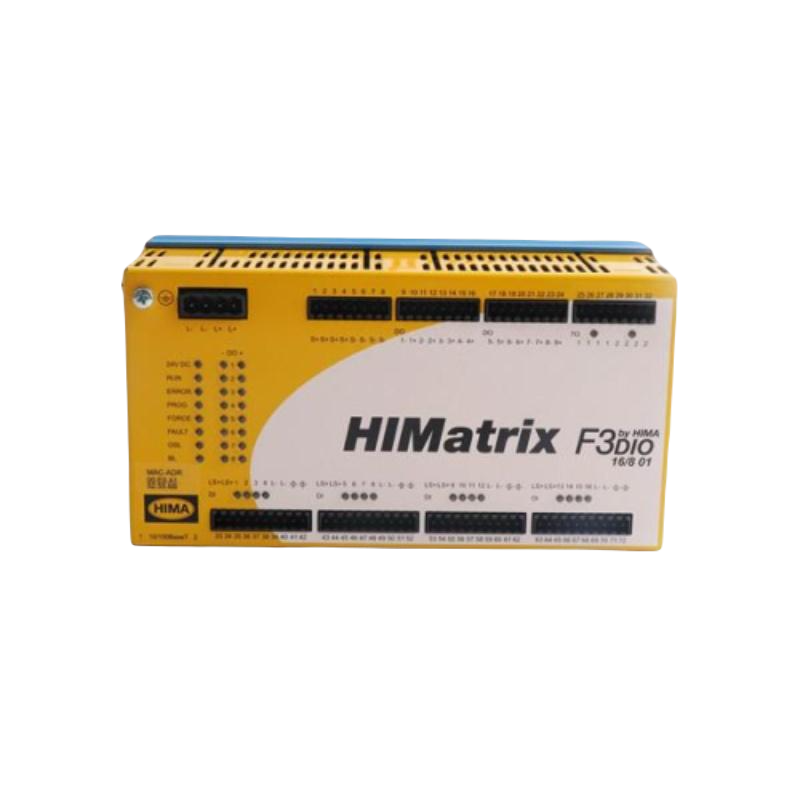

The HIMA HIMatrix F3 DIO 16/8 01 (also known as F3DIO16/801) is a remote I/O module designed for safety-critical applications within the HIMatrix safety system. It meets high standards for functional safety, supporting up to SIL 3 (IEC 61508), Cat. 4, and PL e (EN ISO 13849-1). This module includes 16 digital inputs, 8 digital outputs, and 2 pulsed outputs, with diagnostic features such as short-circuit and open-circuit detection.
The F3 DIO 16/8 01 module is also suitable for use in Zone 2 hazardous areas, offering robust and reliable performance for various industrial applications.
Key Features
Digital Inputs
- 16 Digital Inputs: Non-galvanically separated inputs for signal reception from sensors and devices.
- Input Voltage:
- Low-level voltage: Max. 5V
- High-level voltage: 15-30V
Digital Outputs
- 8 Digital Outputs:
- 2-pole switching outputs for reliable control.
- Max output current: 2A per channel at temperatures below 40°C.
- Output Voltage Drop: Max. 1.5V at 2A.
Pulsed Outputs
- 2 Pulsed Outputs: Used for detecting short circuits and open circuits on digital inputs.
Line Diagnosis
- Supports short-circuit and open-circuit detection for digital outputs.
- Includes configurations for various load types:
- Lamp loads
- Inductive loads
- Capacitive loads
Environmental Specifications
- Operating Voltage: 24 VDC, with a tolerance of -15% to +20%.
- Current Consumption: Max. 11A under full load.
- Operating Temperature Range: 0°C to +60°C.
- Protection Class: IP20.
Physical Dimensions
- Width: 205 mm
- Height: 114 mm
- Depth: 88 mm
- Weight: Approx. 1.3 kg
Ordering Information
- F3 DIO 16/8 01: Part number for the standard remote I/O module with 16 digital inputs and 8 digital outputs.
Technical Specifications
| Feature | Specification |
|---|---|
| Digital Inputs | 16 inputs, non-galvanically separated |
| Digital Outputs | 8 outputs, 2-pole switching, 2A max |
| Pulsed Outputs | 2 outputs for circuit detection |
| Input Voltage | Max. 5V (low), 15-30V (high) |
| Output Voltage Drop | Max. 1.5V at 2A |
| Operating Voltage | 24 VDC (-15% to +20%) |
| Current Consumption | Max. 11A at full load |
| Operating Temperature | 0°C to 60°C |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 205mm x 114mm x 88mm |
| Weight | 1.3 kg |
Applications
- Safety-critical applications in industrial environments, particularly where functional safety is paramount.
- Hazardous Areas: Suitable for Zone 2 hazardous environments.
- Remote I/O for HIMatrix Safety System: Ideal for integrating safety-related I/O in a distributed control system.
Frequently Asked Questions (FAQ)
Q1: How many digital inputs does the HIMatrix F3 DIO 16/8 01 module have?
A1: The module features 16 digital inputs.
Q2: What is the maximum output current for the digital outputs?
A2: Each digital output supports a maximum current of 2A below 40°C.
Q3: Can the F3 DIO 16/8 01 module detect faults?
A3: Yes, the module includes line diagnosis for detecting short circuits and open circuits on the digital outputs.
Q4: Is the HIMatrix F3 DIO 16/8 01 module suitable for use in hazardous environments?
A4: Yes, it is suitable for use in Zone 2 hazardous areas.
Q5: What is the operating temperature range for the F3 DIO 16/8 01?
A5: The module operates within a temperature range of 0°C to 60°C.
Details
| Weight | 1.3 kg |
|---|
