Overview

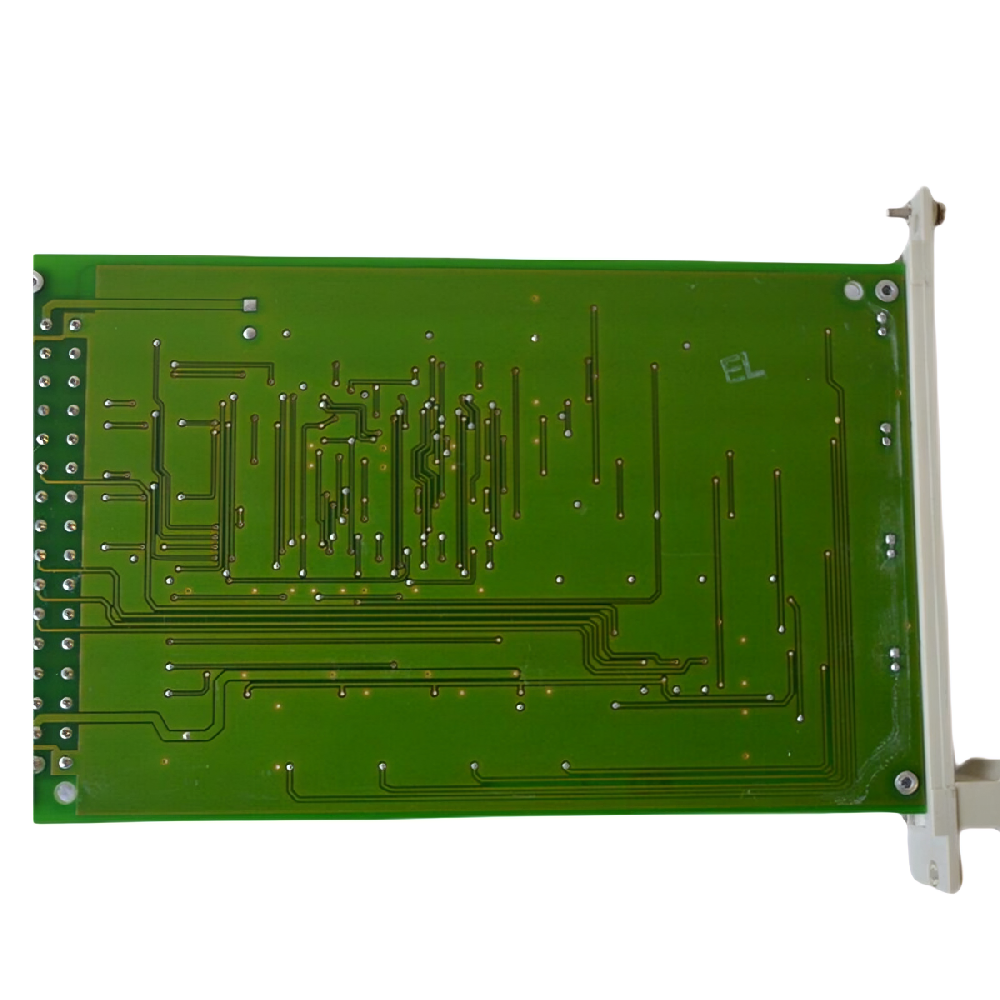

The HIMA F1101 Planar F is a high-performance switching amplifier module designed for safety-critical industrial applications. It monitors and controls 64 digital inputs, including contact makers and two-wire proximity switches, ensuring precise detection of high-level signals. The module actively communicates I/O states to redundant processor systems, enhancing system availability and safety compliance.

By integrating short-circuit-proof power supplies and a 1oo2 safety processor, the F 1101 maintains reliable operation even in demanding industrial environments. LEDs provide instant visual feedback for all digital input statuses.

Key Features

• 64 Safety-Related Inputs: Supports 24 V digital signals from contact makers and two-wire proximity switches.
• Short-Circuit-Proof Supplies: Eight isolated supply outputs (S1+ to S8+) protect each digital input channel.
• Redundant Communication: I/O states are transmitted to processor modules via a redundant system bus, ensuring high availability.
• SIL-Compliant Safety Processing: Operates under a 1oo2 processor configuration, fully compatible with SILworX engineering tools.
• Visual Status Indication: LEDs clearly display the operational state of each digital input.

Technical Specifications

Applications

• Industrial Safety Systems: Ensures reliable monitoring and control of digital signals in SIL-rated installations.
• Process Automation: Provides high availability and redundancy for critical input processing.
• Machine Safety: Ideal for detecting high-level signals from switches and proximity sensors.
