Product Overview

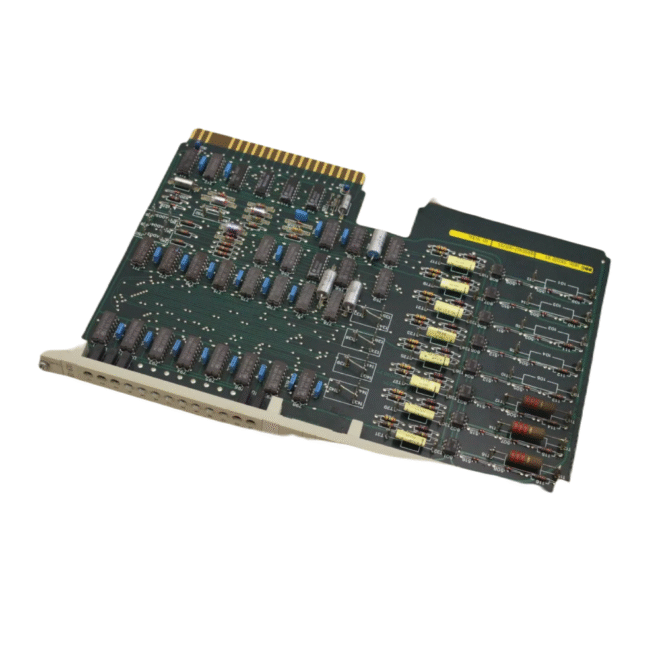

The HESG330029R1 belongs to the ABB ED1630a series of industrial control modules. This board combines modular flexibility with application-oriented features. Engineers can easily integrate it into Indactic® data acquisition or teleoperation systems. Its design emphasizes reliability, scalability, and simplified maintenance.
Key Features
- Modular Architecture: The ED1630a HESG330029R1 enables engineers to configure systems quickly while maintaining flexibility for future expansion.
- Application-Specific Flexibility: Supports teleoperation, process automation, and industrial data acquisition tasks.
- Integrated Software: ABB provides basic software and predefined systems to reduce project planning costs.
- Standardized Design: This ensures compatibility with the ED1000 family and promotes consistent system integration.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB (ASEA Brown Boveri) |
| Part Number | HESG330029R1 / ED1630a |
| Module Family | ED1000 |
| Dimensions | Approx. 233 mm x 50 mm x 220 mm |
| Weight | Around 0.65 kg |
| Interface | Standard backplane connector with defined pin configuration |
| Energy Storage | Capacitive elements integrated for signal stability |
| Board Components | Multiple I/O channels, logic circuits, and diagnostic test points |
| Operating Environment | Industrial grade, supports teleoperation and data acquisition tasks |
Applications
The ED1630a HESG330029R1 is engineered for:
- Teleoperation Systems: Used in remote-control applications for industrial equipment.
- Data Acquisition: Handles complex industrial data processing with seamless integration into ABB Indactic® systems.
- Process Control: Optimizes control and monitoring in industrial automation environments.
Discontinued Status
ABB no longer produces the HESG330029R1. However, it remains widely used in legacy control systems. For ongoing projects, consult ABB or authorized suppliers for compatible alternatives or migration strategies.
Details
| Weight | 0.28 kg |
|---|---|
| Dimensions | 150 × 200 × 302 mm |
