Overview

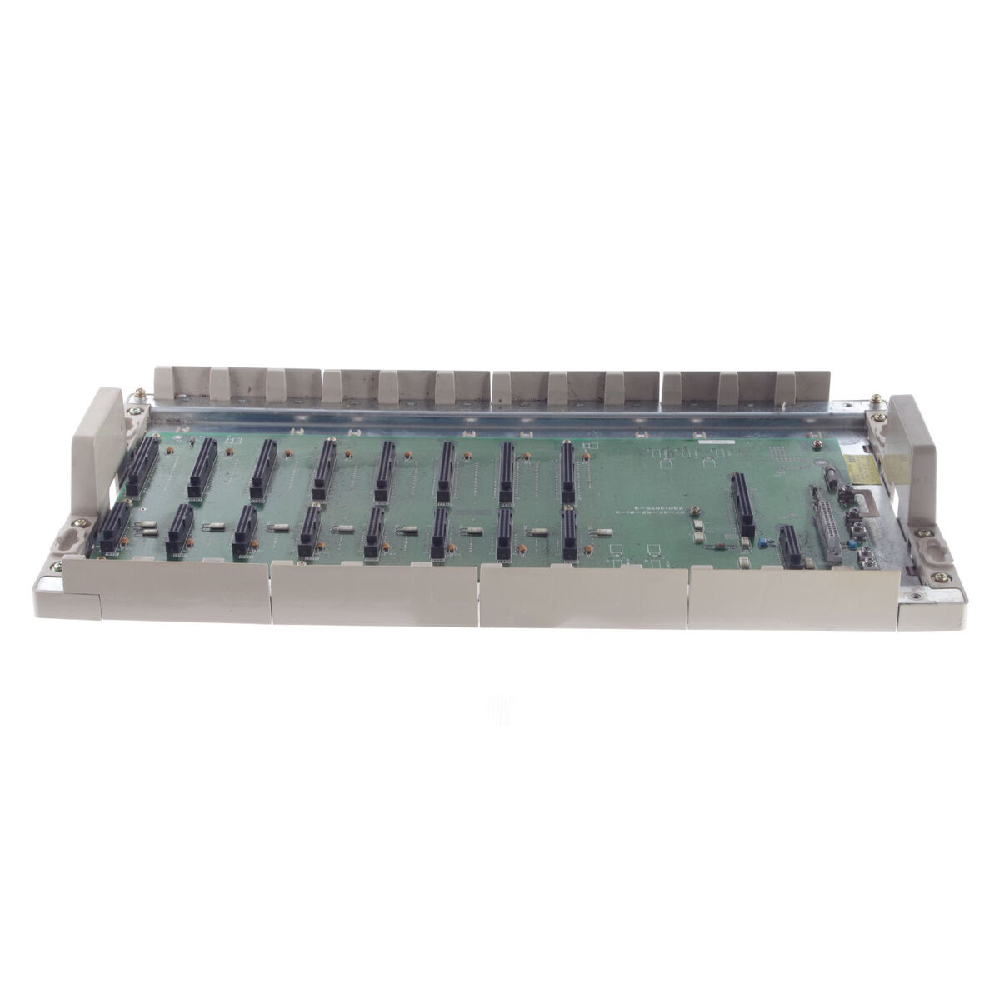

The ABB GJV3074303R1 (Type 07BT62R1) is a basic subrack for the Procontic T200 system. It provides a modular and sturdy platform to house the central processing unit and up to eight I/O modules. Moreover, this subrack is designed for industrial environments, offering high reliability, compact dimensions, and ease of maintenance. Its modular design ensures adaptability to various automation tasks, including open-loop control, computing, closed-loop control, and process monitoring.
Key Features
- Modular Design: Supports up to eight I/O modules with flexible channel configurations.
- Compact and Robust: Sturdy construction withstands industrial conditions while minimizing space usage.
- Easy Installation: Protected terminal blocks and well-organized slots simplify wiring.
- Advanced Technology: Utilizes modern gate-array circuits for fast processing and adaptability to different input/output voltages.
- Flexible Programming: Supports multiple programming languages, including FBD, LD, IL, and SFC.
- Diagnostics and Monitoring: Built-in error monitoring simplifies maintenance and ensures operational reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Part Number / Order Number | GJV3074303R1 |
| Type | 07BT62R1 Basic Subrack |
| System | Procontic T200 |
| I/O Capacity | 16 to 1856 inputs/outputs |
| Module Slots | 8 slots for I/O modules and central unit |
| Protection Degree | IP 20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +75°C |
| Humidity | 5–95%, non-condensing |
| Air Pressure | Operating ≥ 800 hPa (up to 2000 m), Storage ≥ 660 hPa (up to 3500 m) |
| Vibration Resistance | 10–57 Hz: 0.0375 mm continuous, 0.075 mm peak; 57–150 Hz: 0.5 g continuous, 1.0 g peak |
| Shock Resistance | 15 g, 11 ms, half-sinusoidal, all axes |
| Creepage / Clearance | Meets Overvoltage Category II, Pollution Degree 2 |
| Insulation Test Voltages | 24 V: 500 V; 120 V: 1500 V; 230 V: 2500 V; Bus to circuitry: 500 V |
| Electromagnetic Compatibility (EMC) | Meets EN 55011 / 55022 Class A; ESD air: 8 kV, contact: 6 kV |
| Conductor Cross-Section | Power supply L1/N max 1.5 mm², PE max 2.5 mm²; I/O modules max 1.5 mm²; Ground terminals max 6 mm² |
Applications
- Industrial Automation: Ideal for modular programmable control in medium to low automation tasks.
- Control and Monitoring: Supports open-loop and closed-loop process control, computing, and event logging.
- Communication Systems: Compatible with standard communication protocols for easy integration.
- Positioning and Measurement: Supports reliable positioning, measurement, and signal processing.
FAQ
Q1: Is this ABB GJV3074303R1 subrack brand new and original?
A1: Yes, the GJV3074303R1 | 07BT62R1 is fully original and brand new, ready for immediate deployment.
Q2: How many I/O modules can this subrack accommodate?
A2: It can hold up to eight I/O modules alongside the central unit.
Q3: What environments can it operate in?
A3: The subrack withstands industrial temperatures from 0°C to 55°C and non-condensing humidity up to 95%.
Q4: Which programming languages are supported?
A4: You can program it using Function Block Diagram (FBD), Ladder Diagram (LD), Instruction List (IL), and Sequential Function Chart (SFC).
Q5: How fast can it ship?
A5: We have stock available and typically dispatch orders within 3 days to 2 weeks via DHL or other standard logistics.
Details
| Weight | 2.4 kg |
|---|
