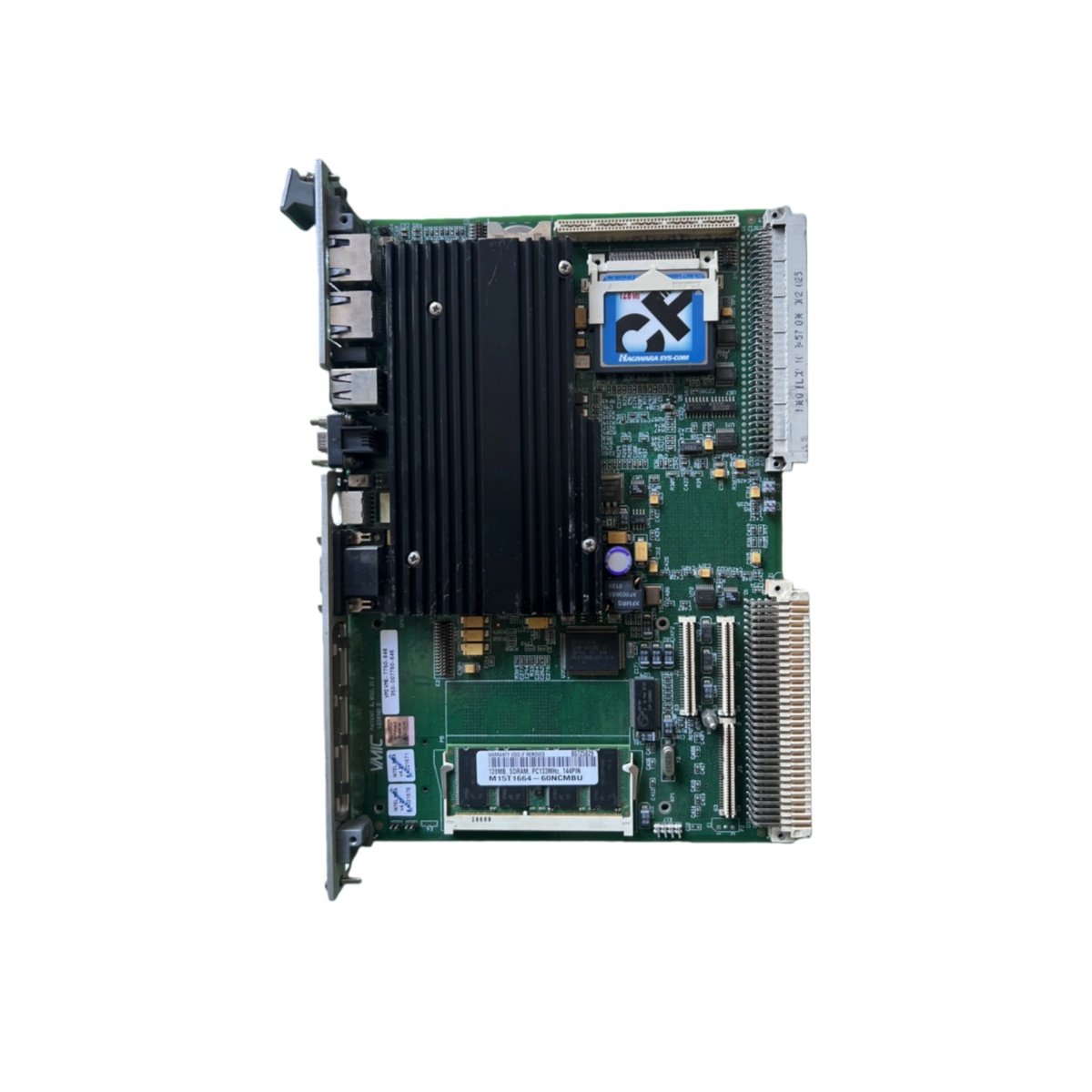

The GE VMIVME-7750-746000 is a powerful single-board computer (SBC) for rugged VMEbus systems. This industrial-grade computer delivers high-performance computing in demanding real-time environments. Consequently, it serves as a central processing unit for automation, defense, and simulation applications.
Core Computing Architecture and System Integration
This SBC excels at executing complex control algorithms and data processing tasks with determinism. It integrates a high-performance microprocessor with extensive memory and I/O interfaces. Moreover, the VMIVME-7750-746000 provides full compatibility with the VME64x bus standard for seamless backplane communication.
The board supports various real-time operating systems (RTOS) for time-critical applications. Therefore, system integrators can deploy it in scenarios requiring guaranteed response times and reliability.
Detailed Electrical and Mechanical Specifications
Engineered for extended lifecycle and harsh environments, this board meets rigorous industrial standards. Below are its comprehensive technical, physical, and interface specifications.
Comprehensive Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms (now part of Abaco Systems) |
| Model Number | VMIVME-7750-746000 |
| Product Category | VMEbus Single Board Computer (SBC) |
| Processor | Intel® Core™ i7 or equivalent (generation-specific) |
| Processor Clock Speed | Up to 2.8 GHz (Core i7 variant) |
| System Memory (RAM) | Up to 8 GB DDR3 SDRAM (soldered) |
| L2/L3 Cache | 8 MB Smart Cache (typical) |
| Non-Volatile Storage | Onboard 32 GB Solid-State Drive (SSD) |
| Additional Storage | SATA interface for external drives |
| VMEbus Interface | VME64x (Master/Slave, System Controller capable) |
| Front Panel I/O | 2x Gigabit Ethernet, 2x USB 2.0, 1x Serial, 1x VGA |
| Board Dimensions | 6U VME Format: 233.35 mm x 160 mm |
| Board Weight | 0.68 kg |
| Primary Component Count | 1x CPU, 1x chipset, 4-8x RAM ICs, 1x SSD, 2x PHY |
| Internal Energy Storage | Supercapacitor for SSD data backup (~10 Joules) |
| Onboard Expansion | PMC (PCI Mezzanine Card) site (1 or 2 slots) |
| Power Requirements | +5V @ 8A max, +3.3V @ 4A max from VME backplane |
| Typical Power Consumption | 35 Watts (varies with CPU load and PMC cards) |
| Operating Temperature | -40°C to +85°C (Extended temperature variant) |
| Conformal Coating | Available option for humidity and contamination protection |
| Shock & Vibration | Meets MIL-STD-810G specifications |
| Real-Time Support | Drivers for VxWorks, Linux, Windows Embedded |
Application and Sourcing Context
This SBC is ideal for military command systems, industrial test stands, and radar signal processing. For sourcing related industrial computing or control components, platforms like Alibaba list various items. For instance, you may find specialized modules like the RMS-TSG-TZ-C Static Trip unit for electrical protection.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
