Product Overview

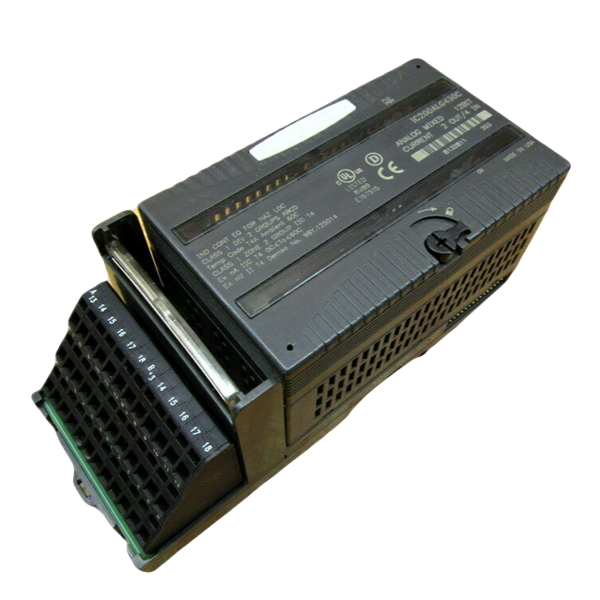

The GE VersaMax IC200ALG430 is a compact and reliable analog mixed module designed for high-accuracy industrial control. It provides four analog current input channels and two analog current output channels, ensuring stable and precise signal processing. Moreover, it supports flexible I/O configuration for seamless integration with GE VersaMax PLC systems, offering efficient performance across process automation, factory control, and OEM equipment.
Model Variants include:
- IC200ALG430 (BXIOMA4): 4 analog current inputs (4–20mA) and 2 analog current outputs (4–20mA).
- IC200ALG431 (BXIOMA410): 4 voltage inputs (0–10VDC) and 2 voltage outputs (0–10VDC).
- IC200ALG432: 4 voltage inputs (±10VDC) and 2 voltage outputs (±10VDC).
Therefore, users can select the appropriate variant according to specific current or voltage requirements.
Key Functional Highlights
- LED Indicators:
- FLD PWR – Field power present.
- OK – Backplane power active.
- Diagnostics: Detects “Loss of User Side Power” and reports faults to the CPU.
- Configurable Power Loss Behavior: Outputs can hold the last state or switch to a default mode during power or communication loss.
- Isolation: Provides 250VAC continuous isolation (1500VAC for 1 minute) between user input, logic, and frame ground.
- Compact Design: Suitable for space-constrained panels and distributed I/O systems.
- Fast Response: 0.4 ms input and 0.3 ms output update rate ensures real-time accuracy.
In addition, its modular design allows easy replacement and scalability within existing VersaMax control architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC200ALG430 |
| Manufacturer | GE |
| Product Series | VersaMax |
| Input Type | 4 current inputs (4–20mA) |
| Output Type | 2 current outputs (4–20mA) |
| External Power Supply | +18 to +30VDC |
| Backplane Current Consumption | 50mA (max) |
| External Power Current | 160mA (max) |
| Input Impedance | 200 Ohms max |
| Accuracy (25°C) | ±0.3% typical, ±0.5% max |
| Resolution | 4µA = 8 counts |
| Filter Response | 5.0 ms |
| Operating Temperature | 0°C to +60°C |
| Isolation Voltage | 250VAC continuous |
| Load Resistance (Output) | 0–1250 Ohms |
Therefore, this module delivers precise analog signal conversion and robust electrical isolation, enhancing overall system safety.
System Integration
The GE IC200ALG430 integrates effortlessly into VersaMax PLC systems through the backplane interface. Its design ensures reliable analog signal processing in distributed I/O networks. For instance, in process automation systems, it transmits accurate current feedback from transmitters and actuators to controllers.
Moreover, the module supports external power supplies for stable output operation and low noise. Its diagnostic reporting allows predictive maintenance and reduced downtime.
Typical Applications:
- Industrial process control systems.
- Distributed PLC I/O configurations.
- Factory automation and OEM equipment.
- Energy and water treatment facilities.
