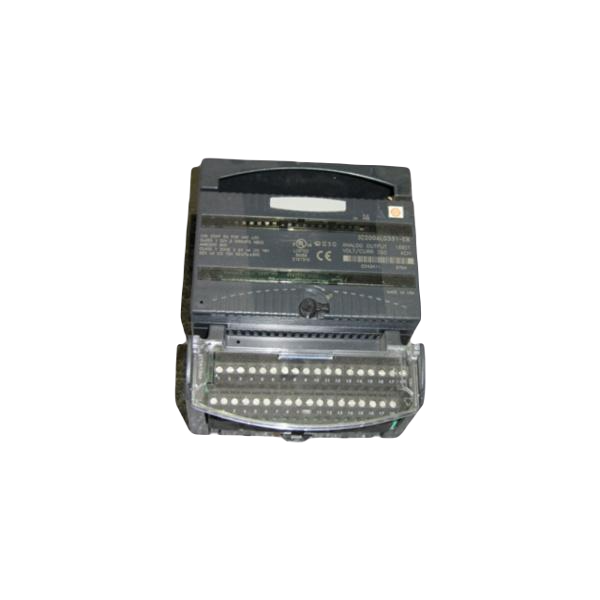

The GE VersaMax IC200ALG328E is a high-performance 12-channel analog output module designed for industrial automation systems. It provides precise current-sourcing analog outputs, making it suitable for a wide range of applications. The module offers a default output range of 4mA to 20mA, with the flexibility to configure it to 0mA to 20mA using jumpers.
Key Features
- Analog Output Channels: 12 channels for accurate analog signal transmission.
- Output Range: Default of 4mA to 20mA; configurable to 0mA to 20mA.
- Overrange Current: ~20.38mA per channel for robust output control.
- External Power Supply: Requires +18VDC to +30VDC for proper functioning.
- Current Consumption: Max. 270mA at full scale with a 2A inrush.
- LED Indicators:
- FLD PWR LED: Indicates field-side power is present.
- OK LED: Confirms backplane power presence.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE Fanuc / Emerson Automation |
| Model | IC200ALG328E |
| Channels | 12 analog output channels |
| Output Range | 4mA to 20mA (default); 0mA to 20mA (configurable) |
| External Power Supply | +18V to +30VDC |
| Current Consumption | 100mA (no load), 270mA (full scale) |
| Accuracy (at 25°C) | ±0.5% of full scale |
| Resistive Load | 0 to 800 Ohms |
| Capacitive Load | 1.0µF max |
| Inductive Load | 0.5H max |
| Resolution | 5 counts = 2.5µA (~12.7 bits) in 4-20mA mode |
Wiring and Configuration
- Configurable Output Range: The output range can be adjusted via jumpers for different applications.
- Wiring: The module supports shielded wiring and connections to standard carriers, with jumpers to control the output range and behavior during power loss.
Compatibility
The GE IC200ALG328E is compatible with CPU firmware version 2.1 or later, VersaPro software version 2.0 or later, and various Network Interface Units (NIUs) such as Ethernet, Genius, and Profibus.
Thermal Derating
At higher ambient temperatures or external voltages above 24V, thermal derating applies. Ensure correct module and DIN rail orientation for optimal performance.
