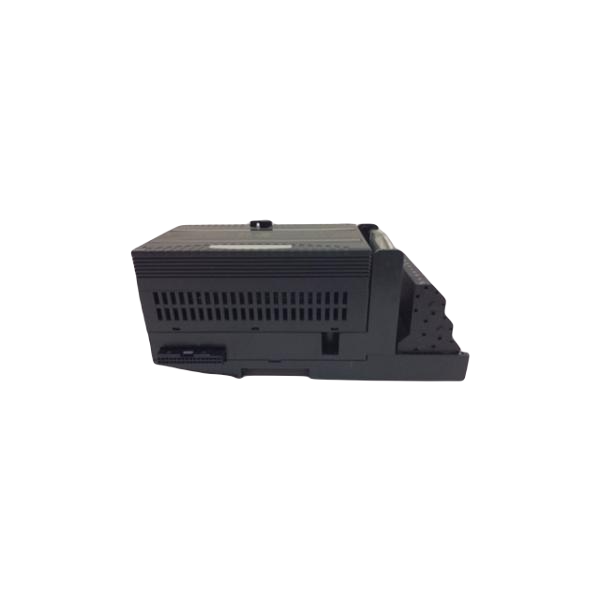

The GE VersaMax IC200ALG262 is an advanced differential current input module from Emerson Automation. It is designed for industrial applications where accurate analog signal processing is essential. Equipped with 8 input channels, this module supports 0-20 mA and 4-20 mA input ranges, making it a versatile choice for various control systems.
Key Features
- Channels: 8 analog input channels, supporting single-ended configurations.
- Current Ranges: Configurable for 0-20 mA or 4-20 mA via terminal jumpers.
- Built-in ADC: 15-bit resolution, ensuring precise analog-to-digital conversion.
- Power Supply: Powered directly from the backplane, requiring no external power supply.
- Update Rate: Fast 7.5 ms update rate, ideal for real-time signal monitoring.
- Diagnostics: Detects internal power loss and open wire faults for enhanced reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE Fanuc / Emerson Automation |
| Part Number | IC200ALG262 / IC200ALG262G |
| Series | VersaMax |
| Product Type | Analog Input Module |
| Number of Inputs | 8 |
| Wiring Configuration | Differential |
| Input Signal (Nominal) | 0-20 mA; 4-20 mA |
| Converter Resolution | 15 Bits |
| Update Rate | 7.5 milliseconds |
| Common Mode Range | -10 V to +10 V |
| Input Impedance | 100 Ohms |
| Common Mode Rejection | 70 dB |
| Maximum Current Draw | 200 mA from 5 VDC |
| LED Indicators | OK LED (indicates backplane power) |
Input Characteristics
- Input Current Range:
- Default (no jumper): 4-20 mA
- With jumper: 0-20 mA
- Accuracy at 25°C (0V Common Mode):
- ±0.3% typical of full scale
- ±0.5% maximum of full scale
- Digital Resolution:
- 0.5 µA = 1 count (for 4-20 mA)
- 0.625 µA = 1 count (for 0-20 mA)
Diagnostics and Isolation
- Isolation:
- Optical isolation between user input and logic.
- Group-to-group and channel-to-channel isolation (250 VAC continuous; 1500 VAC for 1 minute).
- Diagnostics:
- Loss of user side power and open wire detection for 4-20 mA signals only.
Installation Notes
- Connection Recommendations:
- Use shielded twisted pair cables for analog channel connections.
- Grounding should occur at the source device or at the I/O module if grounding at the source is not possible.
Additional Information
- Module IDs:
- FFFFB508 (4-20 mA range)
- FFFFFB408 (0-20 mA range)
- Common Operating Environment:
- Designed for integration with field transmitters measuring pressure, level, flow, temperature, and more.
Version Information
- IC200ALG262G: Manufacturing location changed with no impact on compatibility, functionality, or performance.
