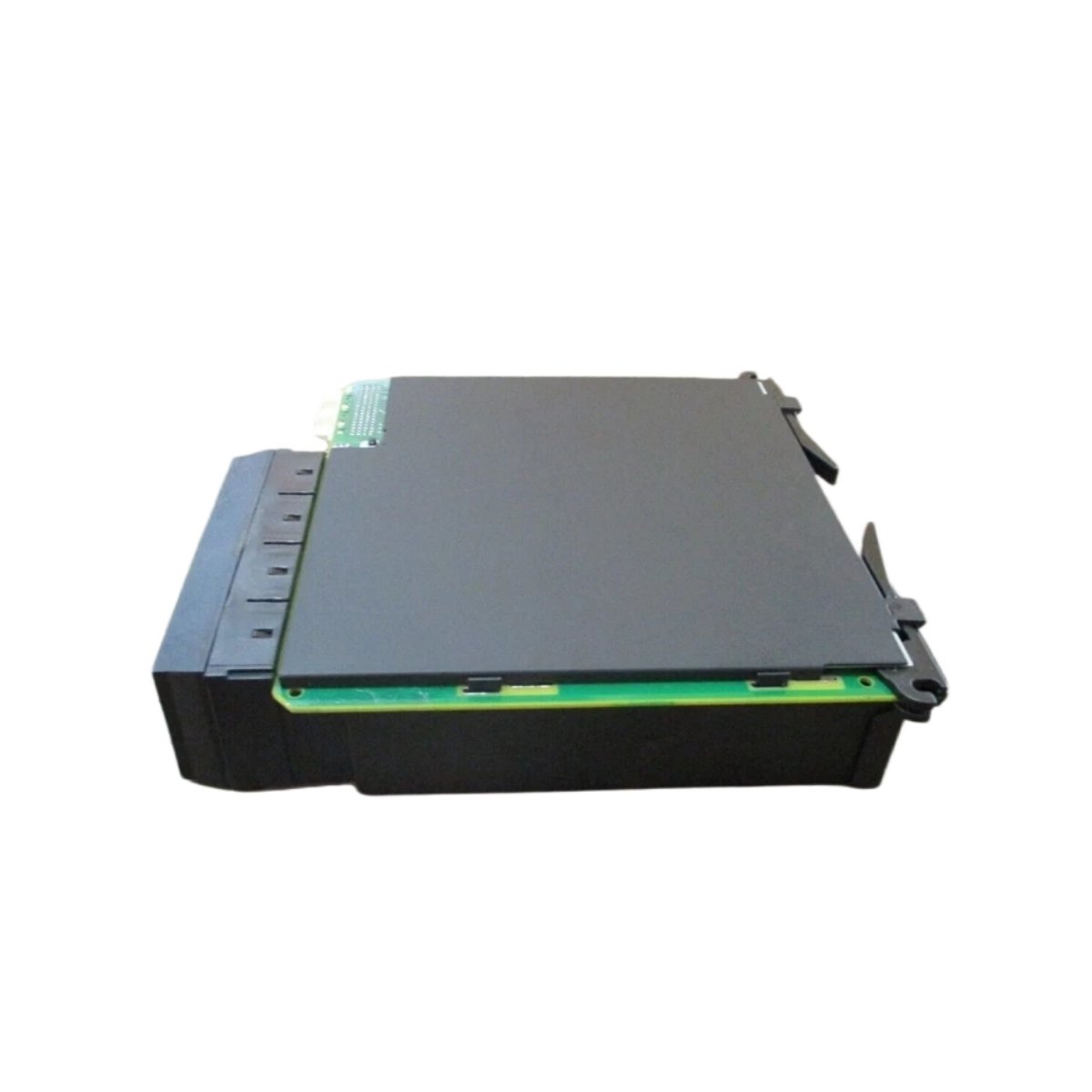

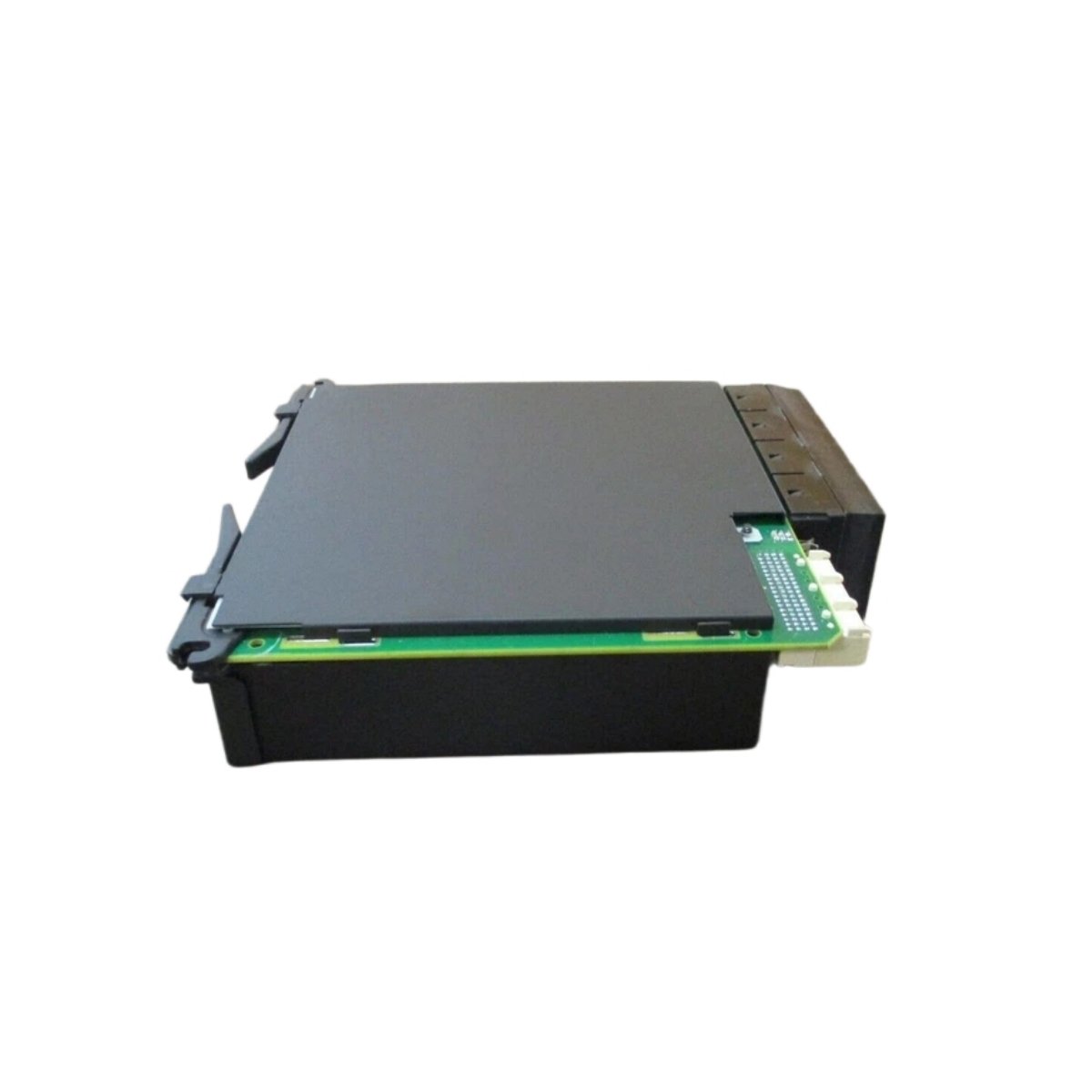

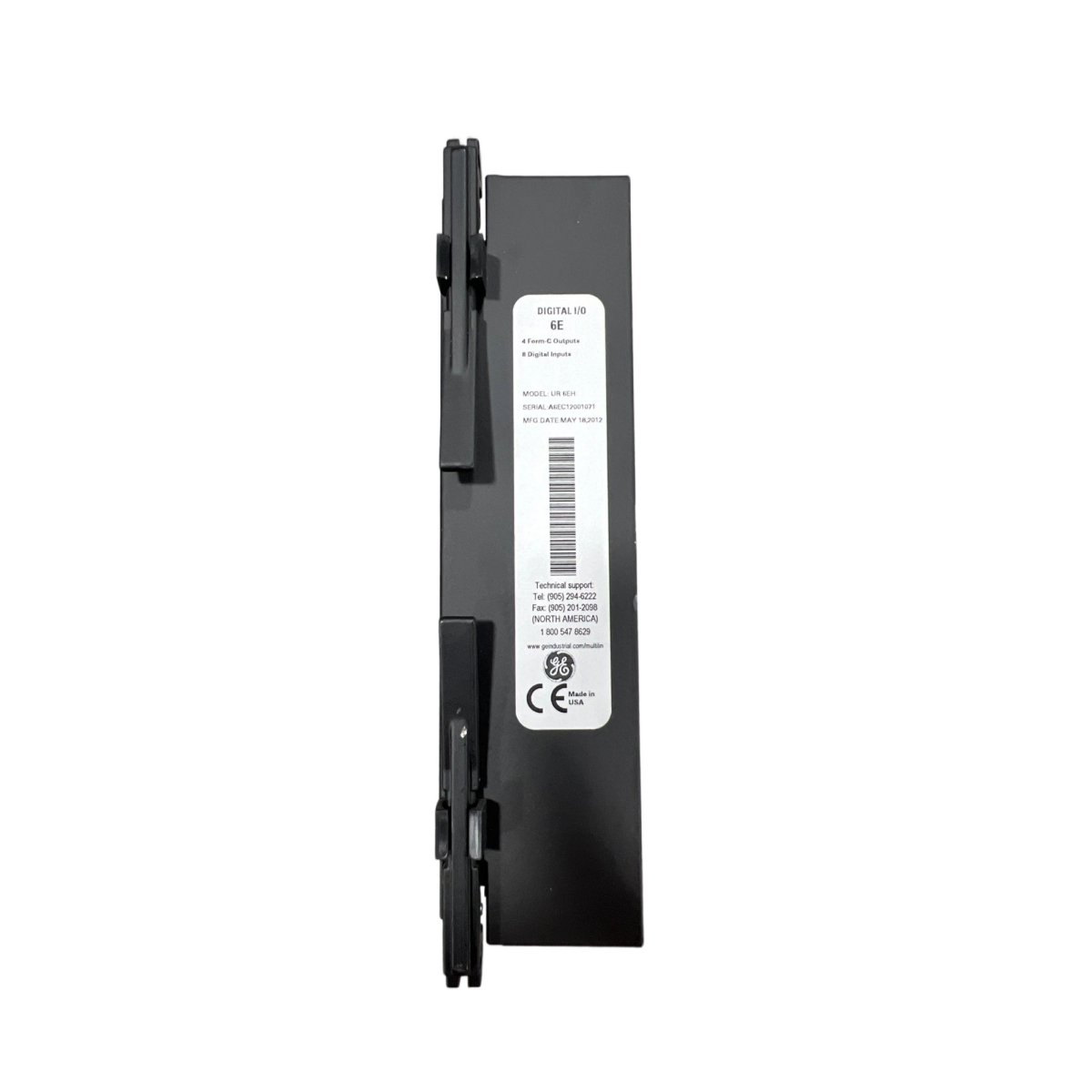

The UR6RH UR-6RH from GE is a high-performance Digital I/O Module designed for reliable monitoring and control in industrial automation systems. This UR6RH module integrates seamlessly with the GE Multilin UR series, delivering precise input/output management, robust contact protection, and flexible power operation. It ensures consistent performance across challenging environmental conditions.
Key Features
- Eight configurable digital inputs supporting 24V–250V AC/DC operation.
- Four outputs (two FORM A and two FORM C) with SPDT configuration and 5A contact rating.
- Supports dielectric strength up to 1500V AC for reliable industrial isolation.
- Flexible power supply range from 48V–125V DC or 100V–240V AC.
- Designed for industrial environments with operating temperatures between -40°C and +60°C.
- Compatible with GE UR series systems for streamlined integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Digital Inputs | 8 inputs |
| Input Voltage Range | 24V–250V AC/DC |
| Input Impedance | 2.2 kΩ |
| Input Debounce Time | Configurable, typically 2–20 ms |
| FORM A Outputs | 2 outputs, 5A at 250V AC / 30V DC |
| FORM C Outputs | 2 outputs, SPDT, 5A at 250V AC / 30V DC |
| Dielectric Strength | 1500V AC, 1 minute |
| Operating Voltage | 48–125V DC / 100–240V AC |
| Power Consumption | < 15W |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Ethernet/Serial | Optional RS-232/RS-485 |
| Weight | 1.2 kg (2.6 lbs) |
Physical Dimensions
| Dimension | Size |
|---|---|
| Height | 177 mm (7 in) |
| Width | 104 mm (4.1 in) |
| Depth | 170 mm (6.7 in) |
| Weight | 1.2 kg (2.6 lbs) |
Product Origin
- Made in the USA
Applications
The UR6RH UR-6RH is ideal for industrial automation, including turbine control, factory monitoring, and energy management. It supports both FORM A and FORM C outputs, making it suitable for redundant and fail-safe operations.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 177 × 104 × 170 mm |
