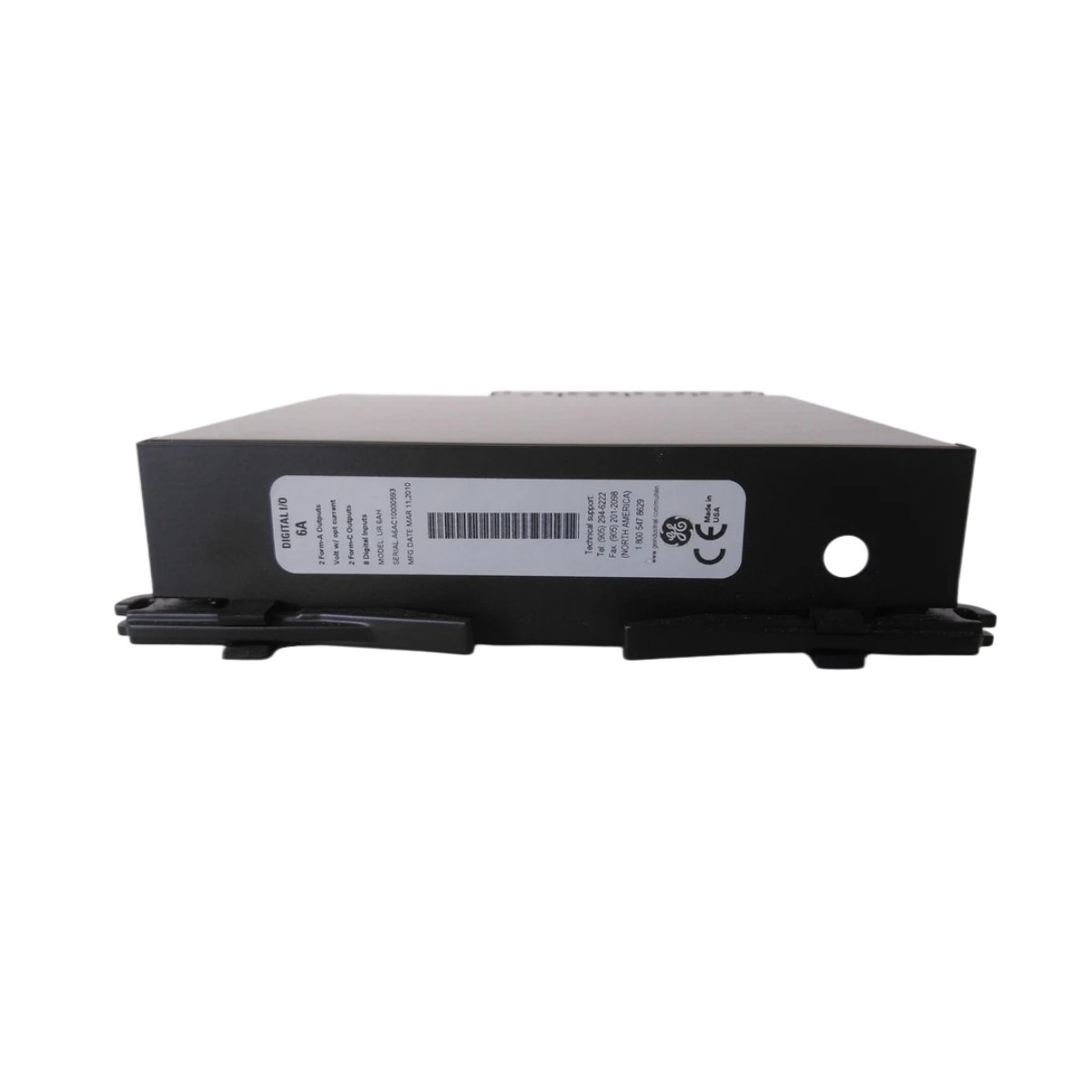

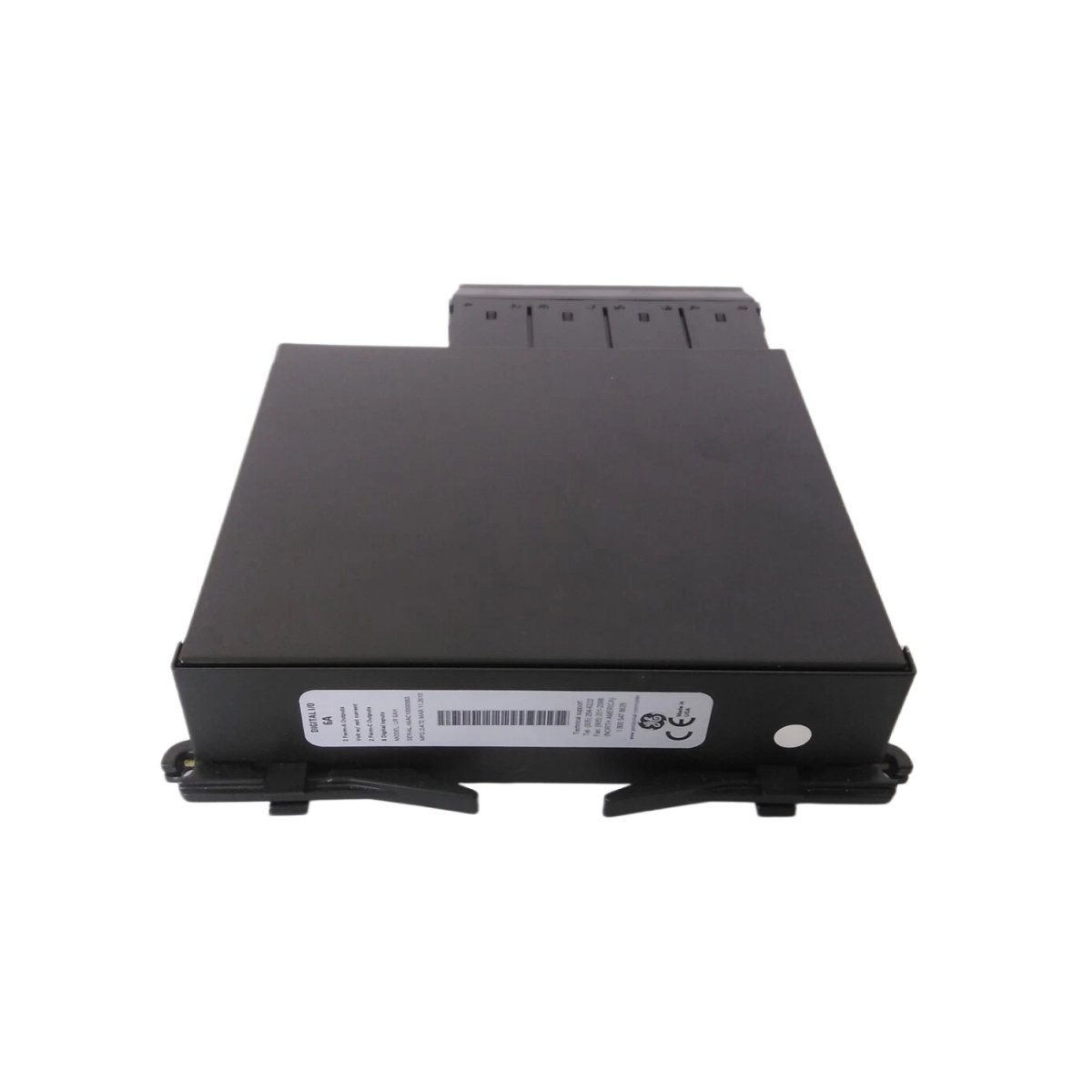

The UR-6AH digital I/O module by GE offers robust performance for industrial automation systems. It provides flexible input and output channels with high reliability, enabling seamless integration with controllers and PLC systems. This module is ideal for applications requiring precise digital signal control in harsh industrial environments.
Key Features
- Supports 8 digital inputs and 2 relay outputs for versatile control.
- Handles wide input voltage ranges from 20 to 250 VAC/DC.
- Provides Form-A/C output relays rated for 6A at 250VAC or 30VDC.
- Ensures long mechanical life with up to 10 million relay operations.
- Compatible with 24–48 VDC operating voltage and low power consumption (<5W).
- Ethernet 10/100 Mbps and serial RS-232/RS-485 interfaces for flexible connectivity.
- Designed for industrial environments with IP54 protection and wide temperature range (-40°C to +70°C).
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | UR-6AH |
| Product Type | Digital I/O Module |
| Number of Inputs | 8 |
| Input Voltage Range | 20–250 VAC/DC |
| Input Impedance | 10 kΩ |
| Maximum Input Frequency | 10 Hz |
| Number of Outputs | 2 |
| Output Type | Form-A/C relays |
| Rated Load | 6A at 250VAC / 30VDC |
| Output Relay Life | 10 million mechanical operations |
| Operating Voltage | 24–48 VDC |
| Power Consumption | < 5 W |
| Ethernet Interface | 10/100 Mbps |
| Serial Interface | RS-232 / RS-485 |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Protection Rating | IP54 |
| Weight | 1.5 kg |
| Product Origin | USA |
Applications
The UR-6AH module integrates with industrial controllers for digital monitoring and control. It is suitable for factory automation, PLC systems, and I/O expansion in harsh conditions. The module supports high-speed digital communication, ensuring system reliability and precision.
Installation Notes
- Mount using factory-specified DIN rail or panel configurations.
- Ensure proper grounding and environmental protection for optimal operation.
- Follow GE documentation for electrical connection and configuration.
Warranty & Shipping
- Includes a 12-month manufacturer warranty.
- Ships worldwide via FedEx, UPS, and DHL for rapid delivery.
Frequently Asked Questions
Q1: How many digital inputs does UR-6AH support?
A1: It supports 8 digital inputs with wide voltage range.
Q2: What is the maximum output load?
A2: Each relay output handles up to 6A at 250VAC or 30VDC.
Q3: Which interfaces are available?
A3: Ethernet 10/100 Mbps and RS-232/RS-485 serial communication.
Q4: Can it operate in extreme temperatures?
A4: Yes, it works from -40°C to +70°C with IP54 protection.
Q5: What does IP54 protection mean?
A5: It protects against dust ingress and water splashes, suitable for industrial environments.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 150 × 100 × 40 mm |
