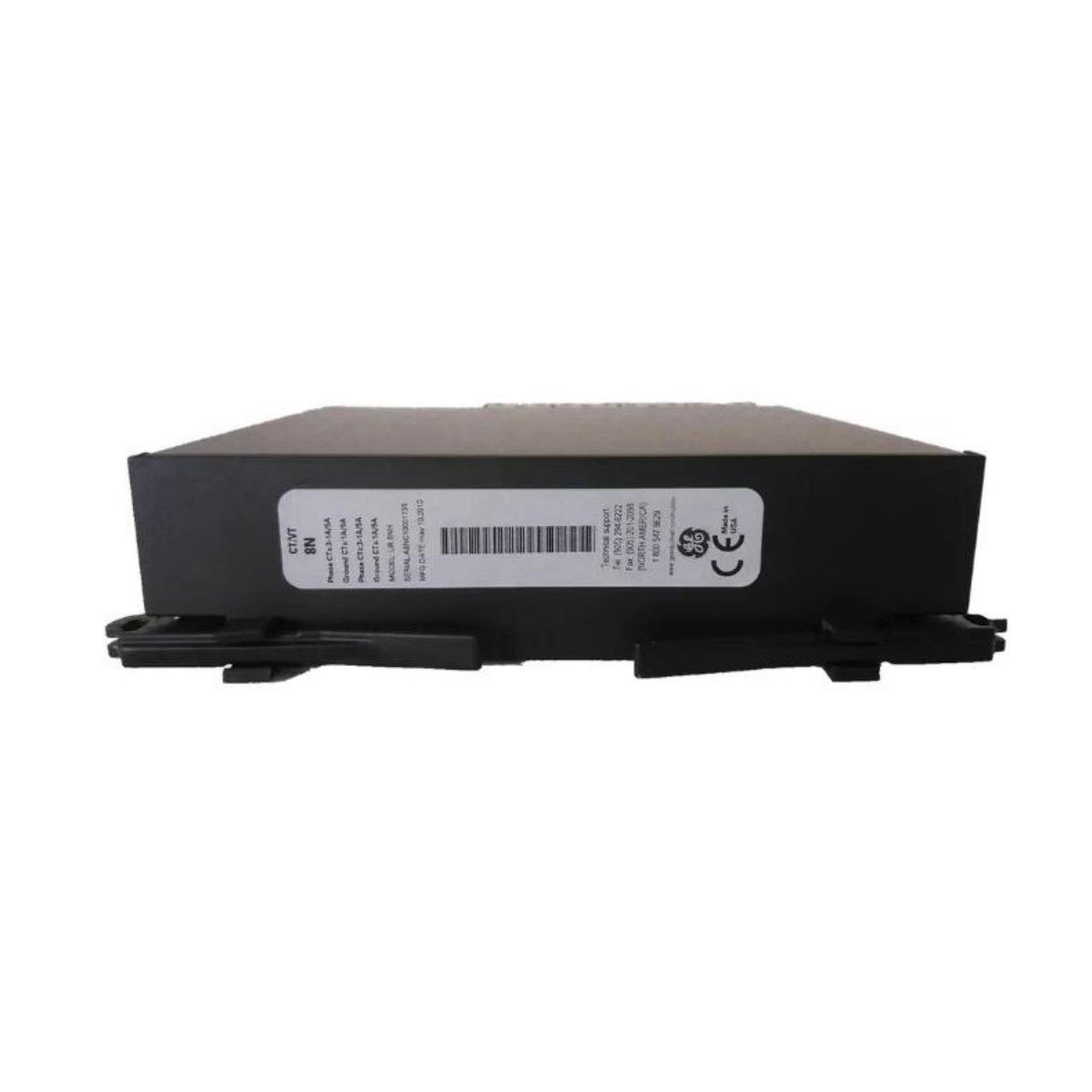

The UR-5AH from GE Multilin is a high-performance transducer I/O module engineered for accurate voltage and current measurements. This module supports multiple communication protocols, including Modbus, DNP3, and IEC 61850, ensuring seamless integration into SCADA and industrial automation systems. Its robust design provides reliable operation in harsh environments while maintaining precise data acquisition.
Key Features
- Measures voltage from 0–300 V AC/DC and current from 0–5 A AC/DC with ±0.2% accuracy.
- Supports Modbus, DNP3, and IEC 61850 protocols for flexible system integration.
- Operates with power supply ranging 24–250 V DC or 48–240 V AC.
- Designed for 19-inch standard rack mounting in industrial control panels.
- Functions effectively in temperatures from -20°C to +60°C and humidity from 5–95%.
- Provides stable and precise readings for critical monitoring applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | UR-5AH |
| Series | Multilin Transducer I/O |
| Manufacturer | GE |
| Power Supply | 24–250 V DC / 48–240 V AC |
| Measurement Range (Voltage) | 0–300 V AC/DC |
| Measurement Range (Current) | 0–5 A AC/DC |
| Accuracy | ±0.2% full scale for both voltage and current |
| Communication Protocols | Modbus, DNP3, IEC 61850 |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% non-condensing |
| Mounting | 19-inch standard rack mount |
| Weight | 1.52 kg (3.35 lbs) |
Physical Dimensions
| Dimension | Size |
|---|---|
| Height | 13.00 in (330 mm) |
| Width | 10.50 in (267 mm) |
| Depth | 4.50 in (114 mm) |
| Weight | 1.52 kg (3.35 lbs) |
Product Origin
- Made in the USA
Applications
The UR-5AH module monitors voltage and current for critical industrial systems. It integrates into SCADA or automation networks to provide accurate real-time data for control, protection, and energy management. Ideal for power plants, substations, and industrial process monitoring.
Details
| Weight | 1.52 kg |
|---|---|
| Dimensions | 330 × 267 × 114 mm |
