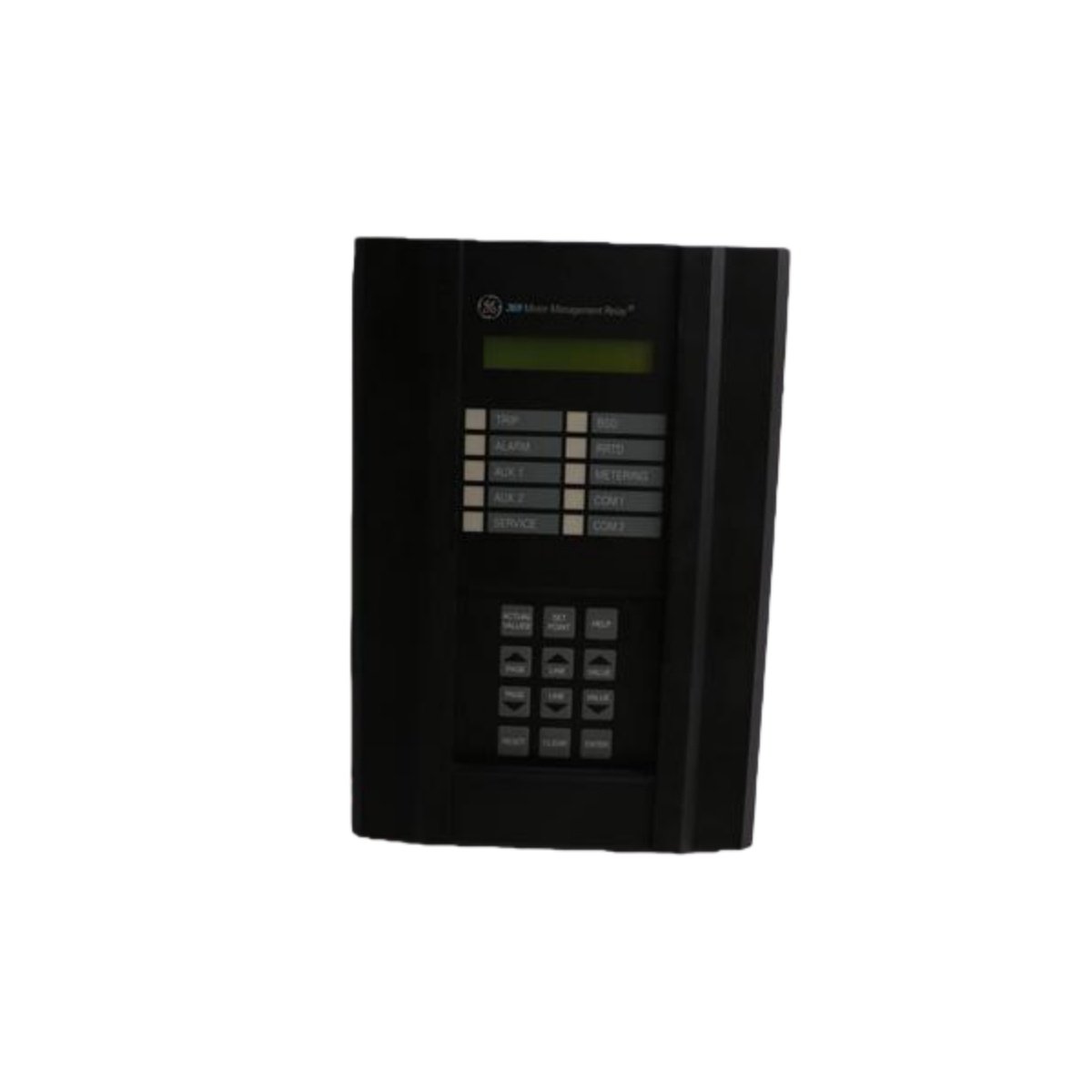

The GE 369-HI-0-0-0-0 delivers robust protection and management for medium-sized AC motors. This relay from the GE Multilin family actively monitors motor health and operational conditions. Consequently, it ensures optimal performance and significantly extends the operational lifespan of critical assets.
Advanced Protection and Diagnostic Features
This relay employs an enhanced thermal model to accurately monitor motor temperature. It provides dedicated stall and jam protection against severe abnormal operating conditions. Furthermore, the unit guards motors from harmful undervoltage, overvoltage, and underfrequency events.
The 369-HI-0-0-0-0 excels with its comprehensive motor health monitoring suite. This suite includes a detailed Event Record, Oscillography, and a Motor Starting Data Logger. These tools offer deep insights for predictive maintenance and precise troubleshooting.
Specifications and Configuration Details
The ‘369’ designation identifies this as the core motor protection relay unit. The ‘HI’ suffix indicates a wide-range control power input of 50-300 VDC or 40-265 VAC. This model specifically lacks built-in RTD inputs (denoted by the ‘0’ after HI).
It also does not include the optional metering package (‘M’) for power measurements. The final two ‘0’ positions confirm no fiber optic port or extra protocol interfaces. The relay supports multiple standard communication protocols for direct system integration.
| Parameter Category | Specification / Description |
|---|---|
| Manufacturer & Line | GE (General Electric) Multilin |
| Part Number | 369-HI-0-0-0-0 |
| Product Type | Motor Protection & Management Relay |
| Protected Equipment | Medium-Sized AC Motors & Components |
| Control Power Input | 50-300 VDC / 40-265 VAC (HI) |
| RTD Inputs | None (0) |
| Metering Package | Not Included (0) |
| Fiber Optic Port | Not Included (0) |
| Protocol Interface | Standard Options Only (0) |
| Key Protection Features | Enhanced Thermal Model, Stall/Jam, Under/Over Voltage, Underfrequency |
| Diagnostic Features | Event Record, Oscillography, Motor Start Data Logger |
| Communication | Supports Multiple Standard Protocols |
Details
| Weight | 1.8 kg |
|---|---|
| Dimensions | 76 × 203 × 102 mm |
