Overview

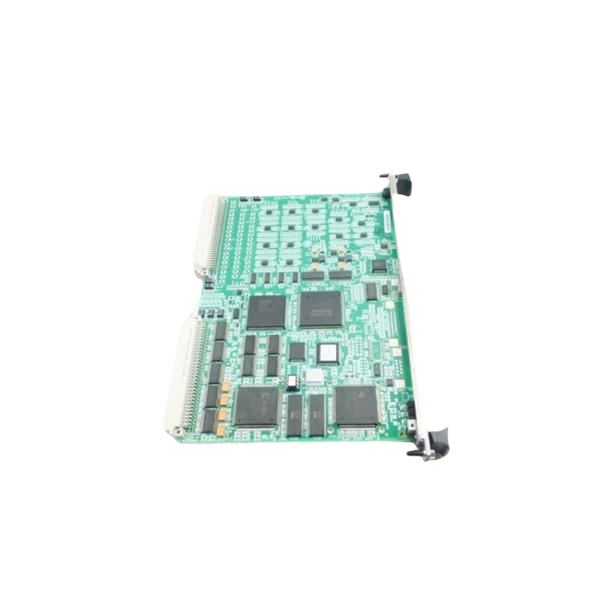

The IS200VVIBH1CAC is a specialized Vibration Monitor Board designed for the GE Mark VI system, part of the renowned Speedtronic series for managing gas and steam turbines. This high-performance board plays a crucial role in vibration monitoring, processing signals from vibration probes connected through terminal boards. It is equipped to handle a range of applications, including rotor eccentricity, differential expansion, and rotor axial position monitoring.
Designed for seamless integration with Seismic, Proximitor, Velomitor, and Accelerometer probes (e.g., Bently Nevada), the IS200VVIBH1CAC supports up to 14 vibration probes, ensuring extensive monitoring capabilities. This board is an essential component for maintaining the reliability and performance of turbine systems.
Key Features
- Signal Processing: Converts analog vibration signals into digital, transmitting them to the controller via the VME bus.
- Probe Support: Compatible with Seismic, Proximitor, Velomitor, and Accelerometer probes.
- Protection Functions:
- Vibration Monitoring
- Rotor Eccentricity
- Differential Expansion
- Rotor Axial Position
- Power Supply: Supplies power to probes in both Simplex and TMR modes.
- Probe Capacity: Supports up to 14 vibration probes.
Technical Specifications
| Specification | Value |
|---|---|
| Size | 33.0 cm (H) x 17.8 cm (W) |
| Technology | Surface mount |
| Operating Temperature Range | -30°C to 65°C |
| Number of Outputs | 1 Generator breaker coil, 5A at 125 V DC |
| Power Supply Voltage | Nominal 125 V DC to breaker coil |
| MPU Pulse Rate Range | 2 Hz to 20 kHz |
| MPU Pulse Rate Accuracy | 0.05% of reading |
| Connectors | Two backplane connectors (P1 & P2) and four additional connectors |
| Faceplate Indicators | Fail (Red), Status (Orange), Run (Green) |
| Case Material | 316L Stainless Steel |
| Inductor Coils | Labeled L1 through L55 |
Ordering Information
- Model: IS200VVIBH1CAC
- Manufacturer: General Electric / GE Boards & Turbine Control
- Country of Manufacture: USA
- Product Type: Vibration Monitor Board
- Series: Mark VI IS200
FAQ
Q: What vibration probes are compatible with the IS200VVIBH1CAC?
A: The IS200VVIBH1CAC supports a variety of probes, including Seismic, Proximitor, Velomitor, and Accelerometer probes, such as those from Bently Nevada.
Q: What are the main functions of the IS200VVIBH1CAC?
A: This board provides vibration monitoring, rotor eccentricity, differential expansion, and rotor axial position measurement, ensuring the health of turbine systems.
Q: What is the power supply requirement for the IS200VVIBH1CAC?
A: The IS200VVIBH1CAC operates with a nominal 125 V DC to the breaker coil, and it powers vibration probes in Simplex and TMR modes.
Q: How quickly can I receive the IS200VVIBH1CAC?
A: We keep the IS200VVIBH1CAC in stock and can ship it within 3-14 days, depending on the order size, using DHL for fast delivery.
Q: Can the IS200VVIBH1CAC monitor multiple vibration probes?
A: Yes, it supports up to 14 vibration probes, making it suitable for large turbine systems with extensive monitoring needs.
