The GE DS215TCQBG1BZZ01A circuit board belongs to the Mark V Speedtronic series, designed for gas and steam turbine control. This model integrates specialized firmware and robust components, ensuring reliability in demanding industrial environments.

Product Overview

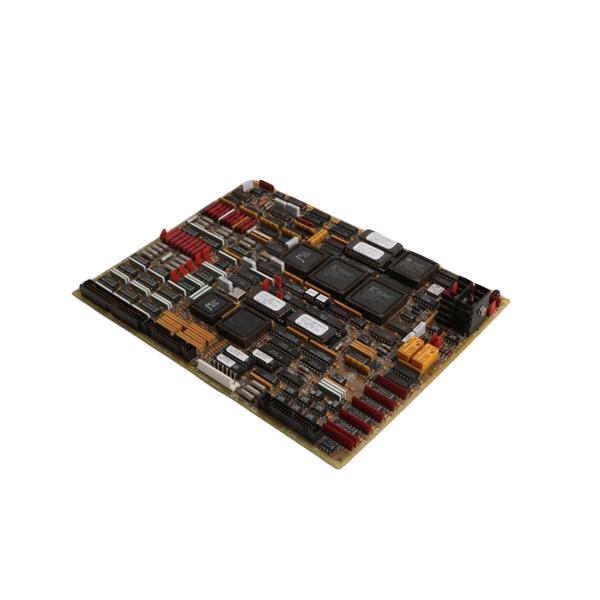

The DS215TCQBG1BZZ01A functions as a control board within GE’s Mark V cabinet. Engineers can easily mount it using pre-drilled holes, while its rectangular design fits securely in the rack. Moreover, the built-in firmware supports advanced turbine management and diagnostic features.

Component Layout

The board combines multiple hardware elements to deliver stable operation.

• Integrated circuits handle key processing functions.
• Yellow capacitors provide filtering and stability.
• Red resistor networks maintain voltage regulation.
• Relays, EPROMs, and FPGAs enable programmable logic functions.
• Diodes protect circuits from sudden power surges.

Connection and Mounting

Four male pin connectors along the bottom edge simplify system integration. Technicians can mount the DS215TCQBG1BZZ01A either in a control rack or using its reinforced holes. This flexibility ensures proper installation in various configurations.

Identification and Series

The part number reveals essential details:

• DS215: Indicates domestic production and modular assembly.
• TCQB: Specifies its functional role within Mark V.
• BZZ01A: Identifies the firmware package and “A” revision.

Technical Specifications

Ordering Information

Industrial suppliers continue to offer the DS215TCQBG1BZZ01A despite its legacy status. Customers may find new surplus or refurbished units. For availability and pricing, direct inquiries to authorized vendors provide the most accurate details.
