Product Overview

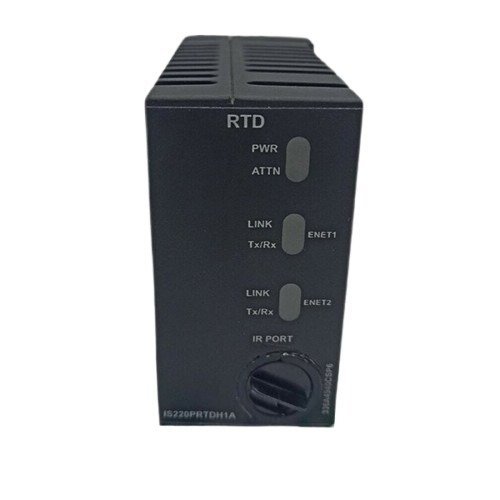

The GE IS220PRTDH1A is a versatile Analog I/O Pack engineered for the Mark VIe Series control systems. Moreover, it operates safely in hazardous locations, supporting analog input and output functions for industrial automation. The pack integrates seamlessly with approved terminal boards, ensuring reliable system performance under demanding environmental conditions. In addition, its robust design meets strict industry safety standards for diverse installations.
Key Functional Highlights
- Hazardous Location Compatibility: Works with IS200STAIH1A, IS200STAIH2A, and IS200TBAIH1C terminal boards.
- Safety Certifications: US & CAN Class I Div 2, Class I Zone 2, and ATEX Zone 2 compliant.
- Environmental Resilience: Rated for -30 to +65 °C (-22 to +149 °F) ambient temperatures.
- Power Supply Requirements: Operates with 27.4–28.6 VDC input, ensuring stable analog performance.
- Mark VIe Standards: Fully compatible with IS200 series I/O modules for non-hazardous locations.
Furthermore, the pack ensures continuous operation even under stringent industrial conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) Industrial Systems |
| Model Number | IS220PRTDH1A |
| Product Type | Analog I/O Pack |
| Functional Acronym | PAIC |
| Power Supply | 27.4–28.6 VDC |
| Ambient Temperature Rating | -30 to +65 °C (-22 to +149 °F) |
| Non-Hazardous Certification | UL E207865 |
| Manufacturer Series | Mark VI IS200 |
| Hazardous Location Approvals | US & CAN Class I Div 2, US & CAN Class I Zone 2, ATEX Zone 2 |
| Terminal Board Combinations | IS200STAIH1A, IS200STAIH2A, IS200TBAIH1C |
In addition, these technical specifications allow precise analog I/O signal management in both standard and hazardous environments.
Typical Applications
The IS220PRTDH1A is suitable for analog signal control across industrial automation processes:
- Process Control: Accurate voltage and current input/output for temperature, pressure, and flow monitoring.
- Hazardous Area Integration: Operates safely with approved terminal boards in classified zones.
- System Expansion: Compatible with Mark VIe I/O modules for scalable plant-wide automation.
For instance, it enables secure analog communication between field devices and supervisory systems in distributed networks.
Details
| Weight | 1.1 kg |
|---|
