Technical Overview

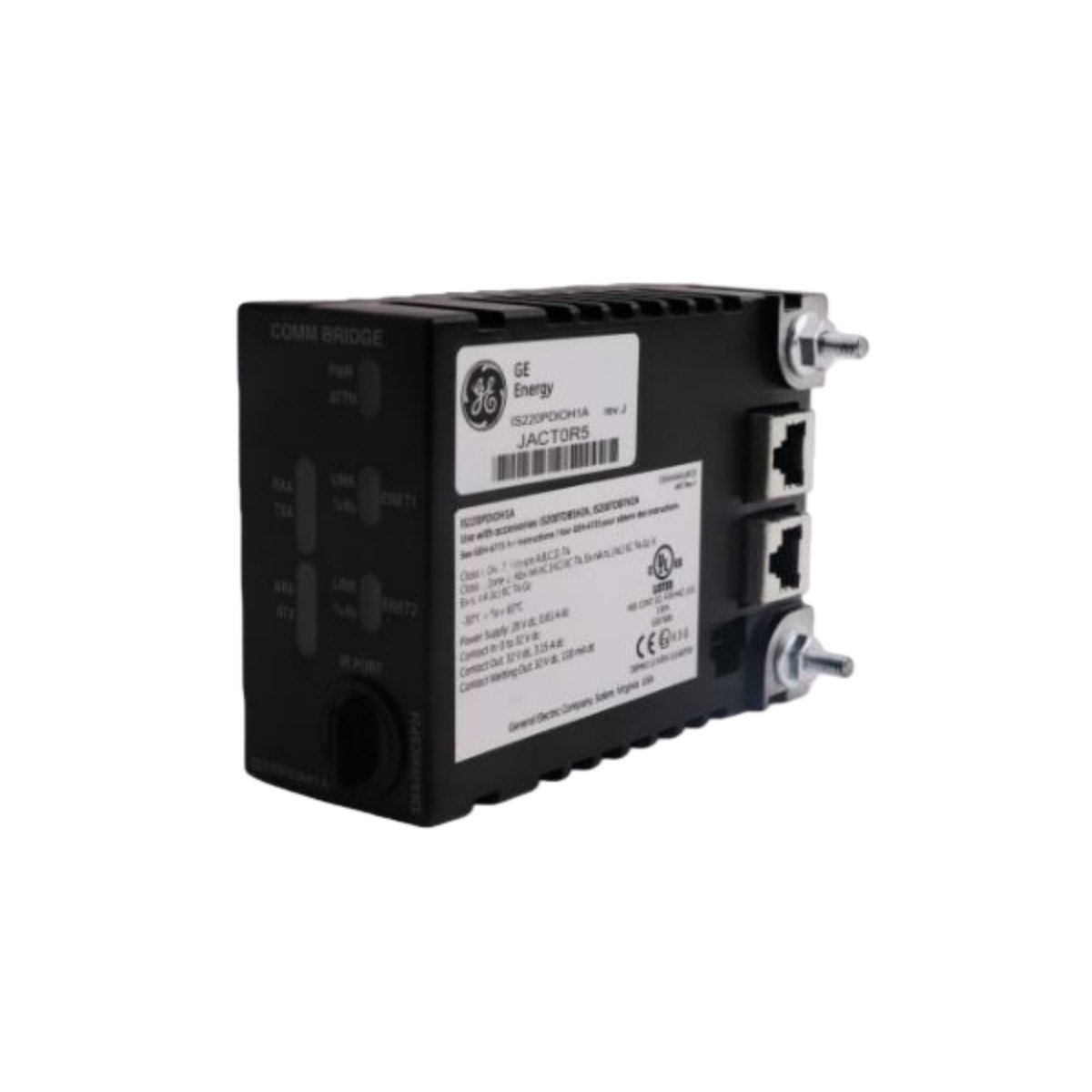

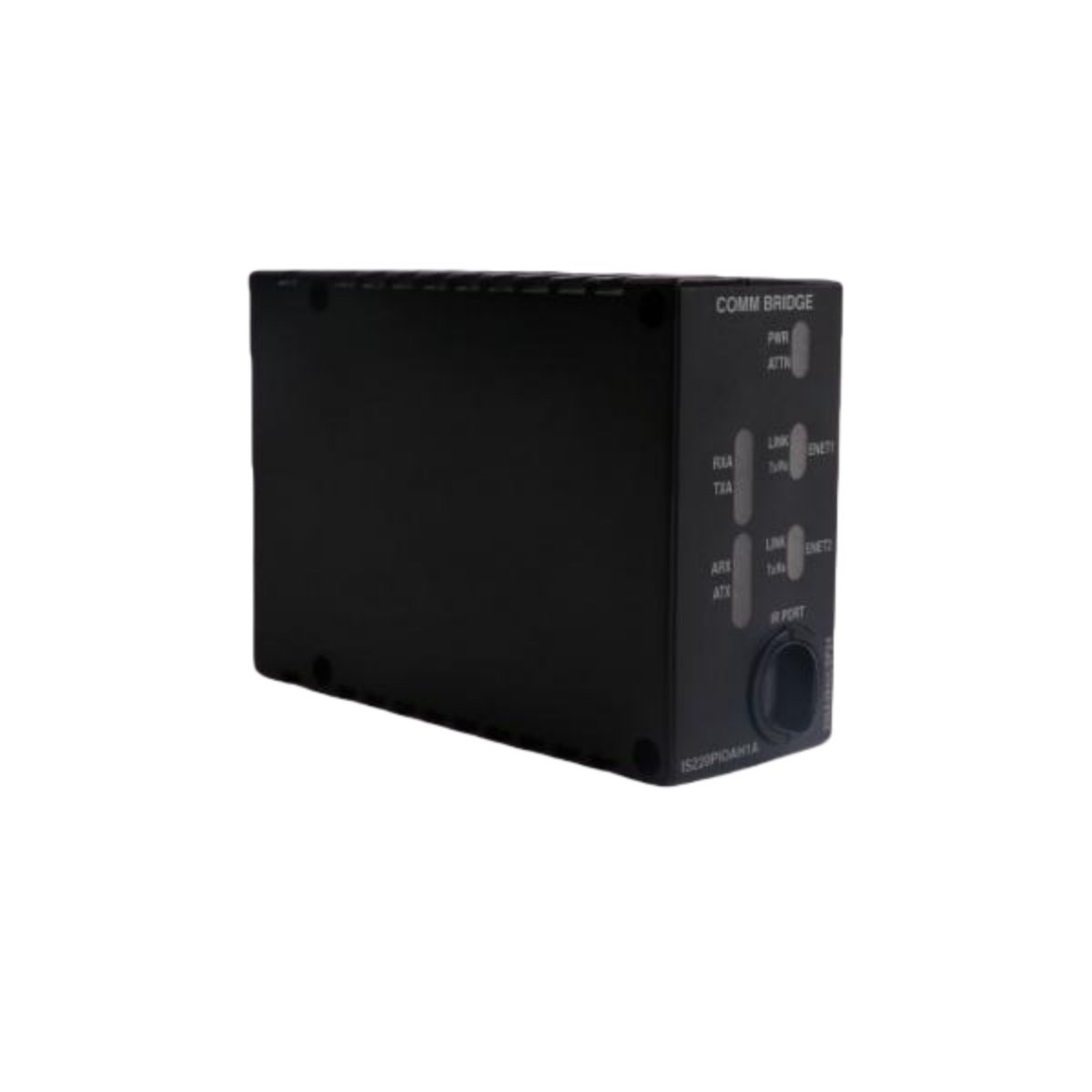

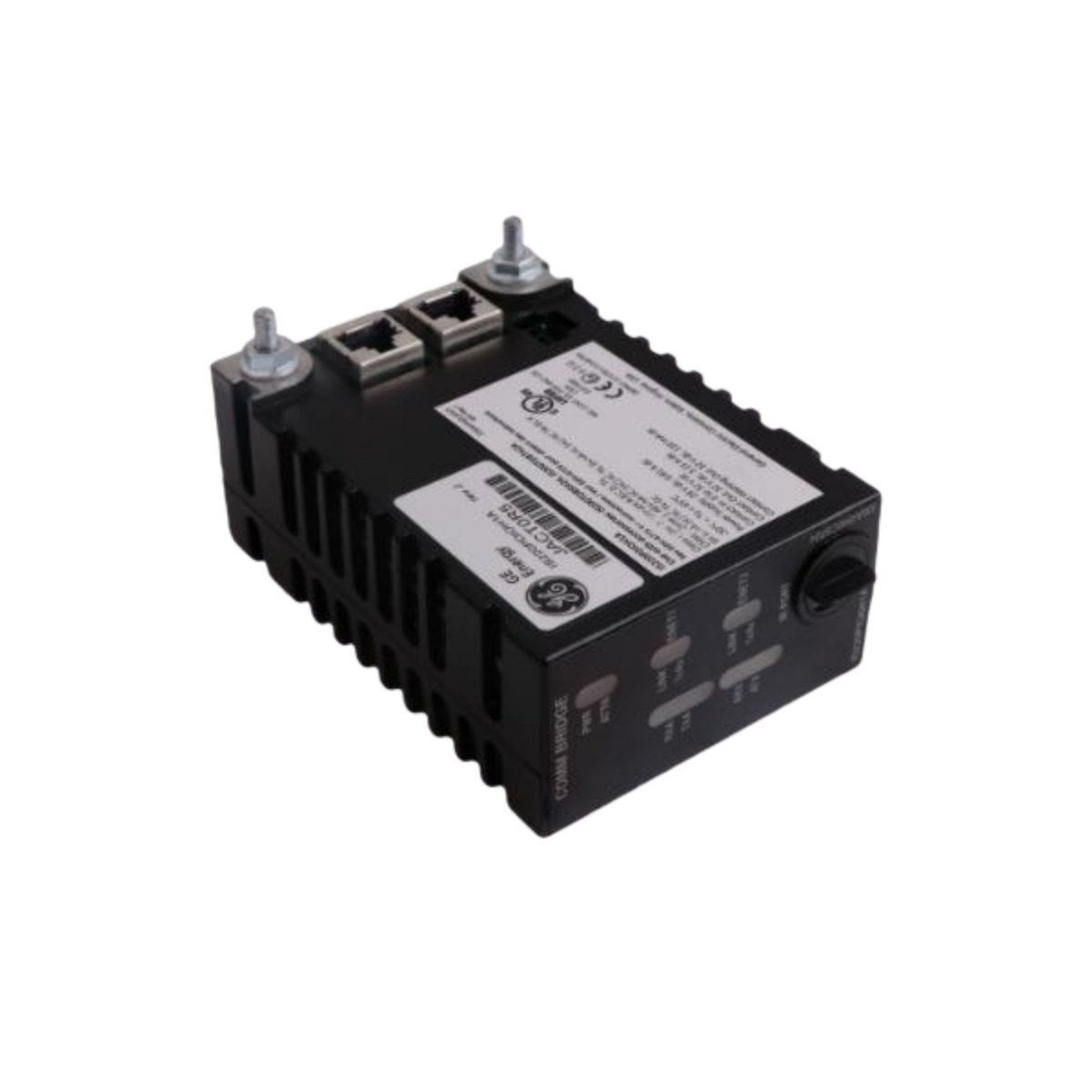

The GE IS220PDIOH1A IS220PDIOH1A belongs to the Mark VIe series from GE Energy. This discrete input/output module provides reliable interface capabilities for turbine control systems. It handles both digital inputs and outputs within a single compact unit. Engineers use this component extensively in power generation applications. The module delivers consistent performance under demanding industrial conditions.

Input and Output Configuration

This module features twelve discrete input channels for field device connectivity. It also includes twelve discrete output channels for actuator control. Each channel operates independently to maximize system flexibility. The inputs accept standard 24 VDC signals from sensors and switches. Similarly, the outputs provide 24 VDC control signals to external devices.

Electrical Specifications and Performance

The GE IS220PDIOH1A IS220PDIOH1A operates on a 28 VDC nominal input supply. Isolation between field circuits and logic circuits ensures reliable operation. This design prevents electrical interference from affecting critical control functions. The module integrates seamlessly with the Mark VIe control system architecture. Consequently, it supports high-speed scanning for time-sensitive applications.

Physical Characteristics and Installation

This I/O module measures approximately 12.7 cm in height for standard rack mounting. It uses a compact form factor that fits within Mark VIe panels. The module connects via a front-facing terminal block for simplified wiring. Installation requires no special tools beyond standard electrical practices. Therefore, technicians can complete replacements quickly during maintenance cycles.

Technical Specifications

System Integration

This discrete module works within the broader Mark VIe control platform. It communicates directly with the main processor for coordinated system operation. For related control components, explore comparable industrial automation solutions. Always verify compatibility with your specific Mark VIe system configuration. The GE IS220PDIOH1A IS220PDIOH1A represents a reliable choice for discrete I/O requirements.
