Technical Overview

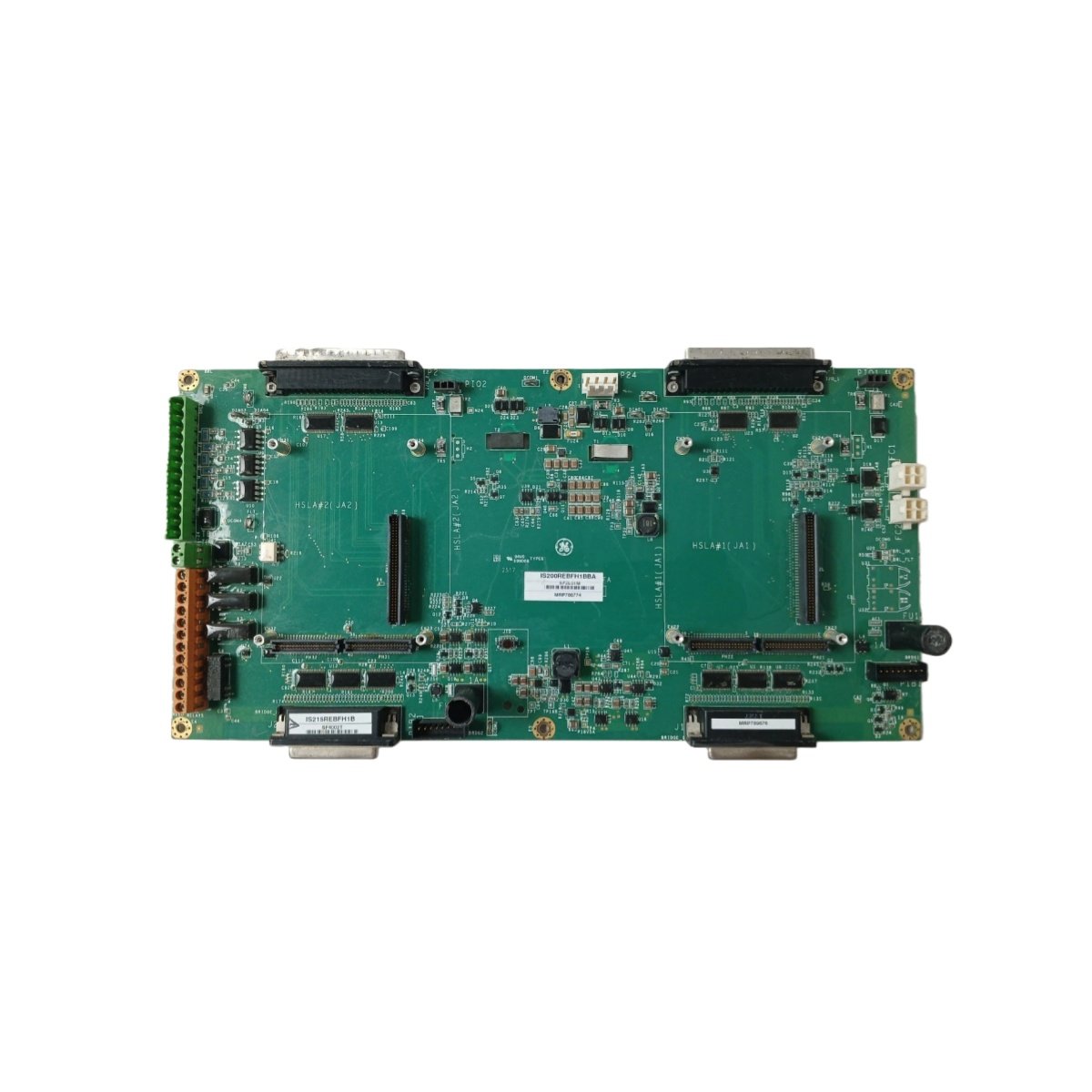

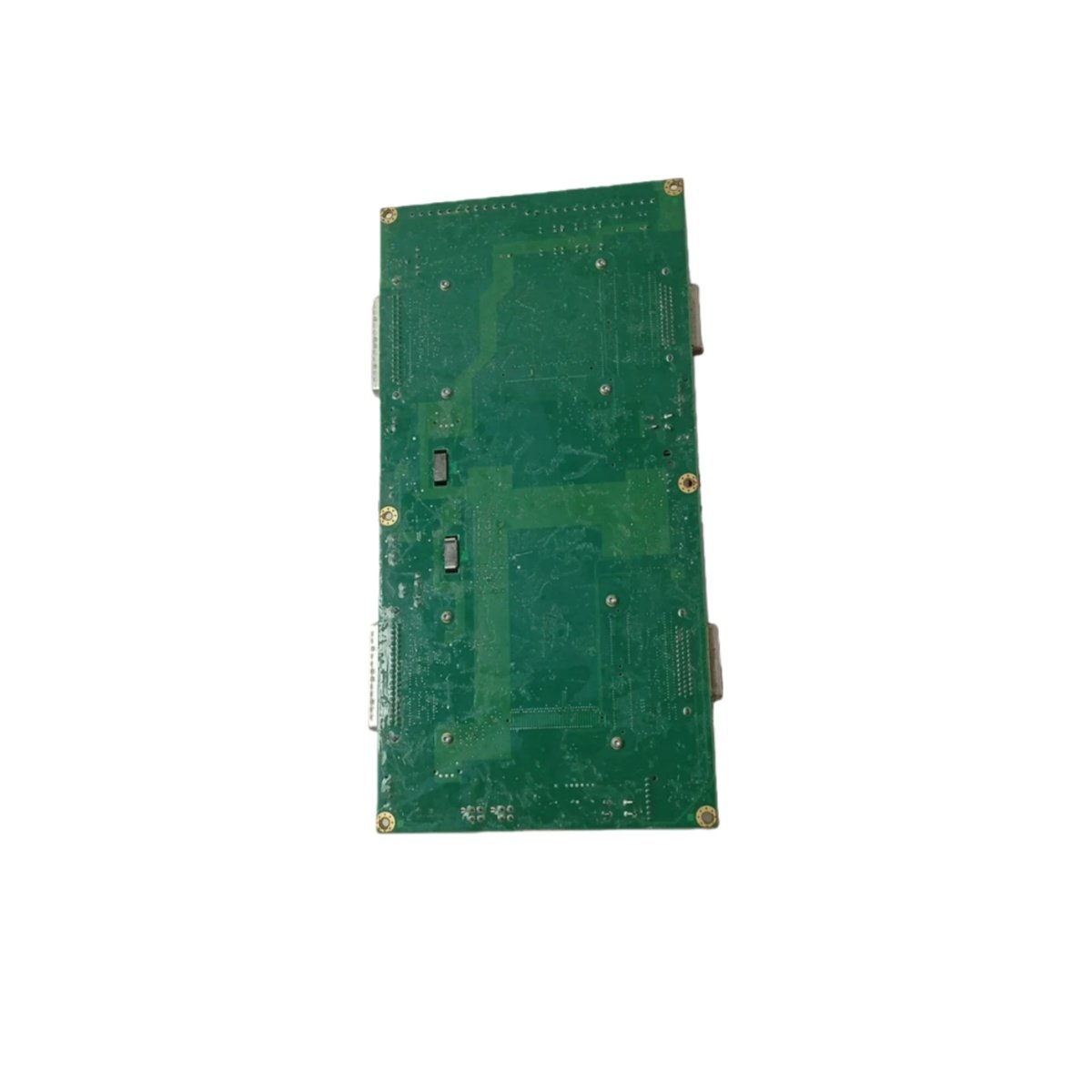

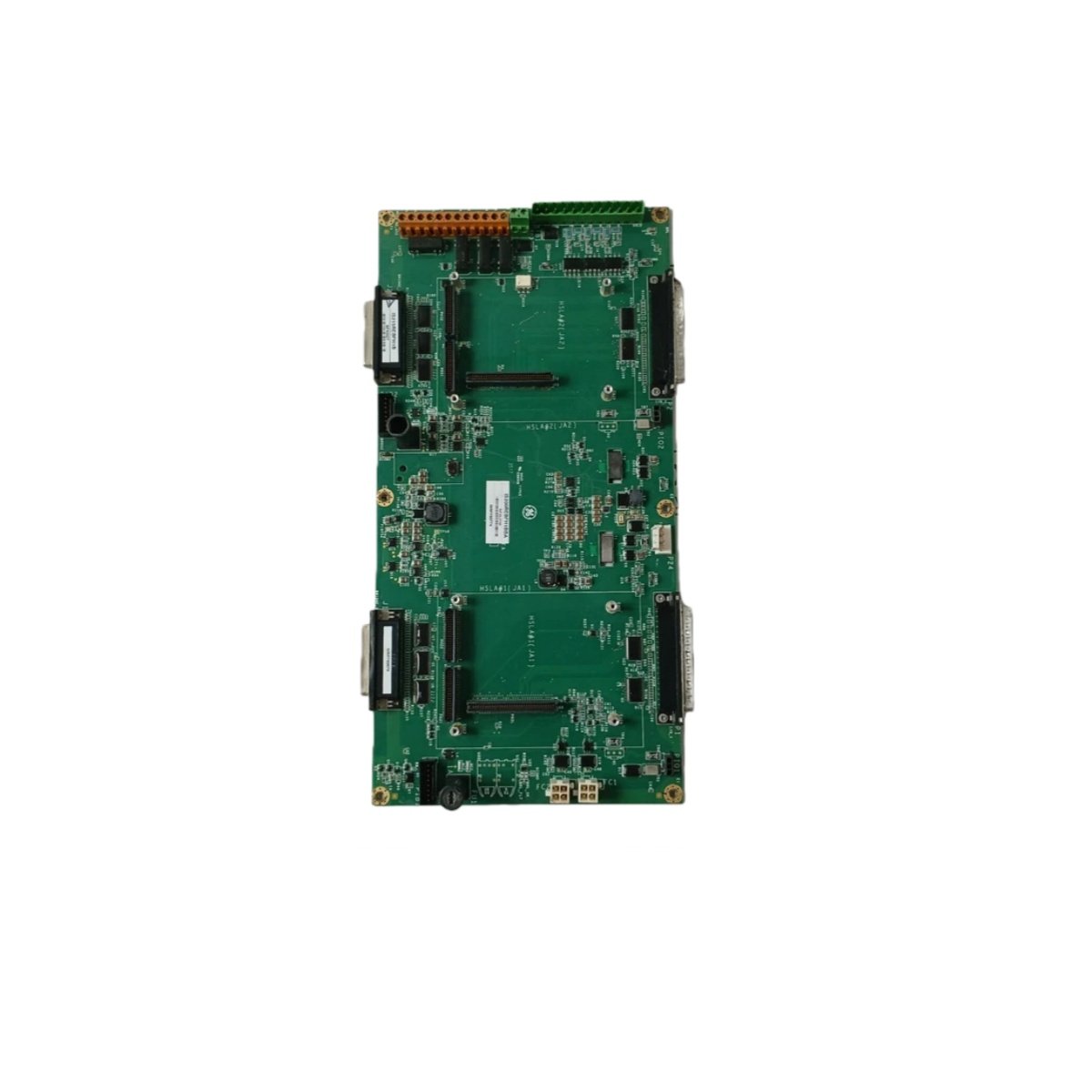

The GE IS215VAMBH1A IS200VSPAH1ACC functions as a VME analog board within the Mark VIe control system. GE Energy designed this printed circuit board for precise analog signal processing. It works alongside the IS215VAMBH1A IS200VSPAH1ACC to form a complete control solution. This board handles critical measurement tasks in turbine automation applications. Engineers rely on its accuracy for demanding power generation environments.

Signal Processing Capabilities

This analog board processes multiple input signals with high precision. It converts field measurements into digital data for the main controller. The board interfaces directly with the VME backplane for system integration. Signal conditioning occurs on-board to maintain measurement integrity. Therefore, users achieve reliable data acquisition for critical process variables.

Physical Characteristics and Construction

The GE IS215VAMBH1A IS200VSPAH1ACC measures standard VME form factor dimensions. It mounts securely within Mark VIe rack systems. The board features high-quality components rated for industrial service life. Multiple connectors provide interface points for external field wiring. This construction ensures consistent operation under continuous duty cycles.

Integration with Mark VIe Systems

This analog board integrates seamlessly with the Mark VIe control platform. It communicates with the IS215VAMBH1A IS200VSPAH1ACC power supply board for complete functionality. The combination supports comprehensive turbine control and protection schemes. System configuration allows flexible assignment of analog channels. Consequently, users tailor the setup to specific application requirements.

Technical Specifications

System Reliability and Deployment

This printed circuit board undergoes rigorous testing before deployment. It meets GE Energy specifications for industrial control applications. For related control components, explore comparable automation solutions. Always verify proper seating when installing this board into VME racks. The GE IS215VAMBH1A IS200VSPAH1ACC delivers dependable analog processing for critical turbine systems.
