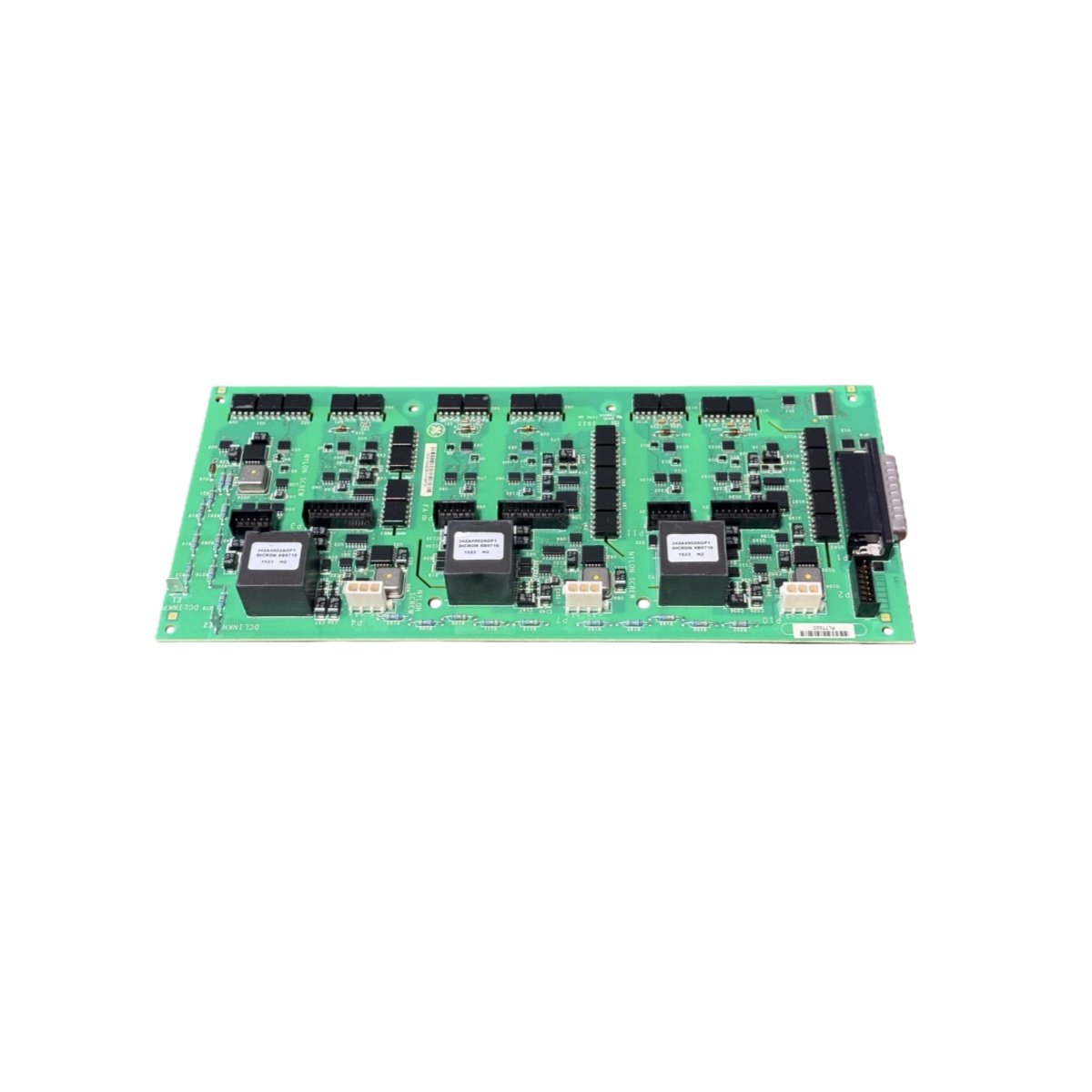

The IS210AEBIH1B board serves as a critical interface within the Mark VIe series. Similarly, the IS210AEBIH1BED variant offers enhanced redundancy features. Both modules convert logic signals into precise analog outputs for turbines. You can rely on these boards for demanding speed and position control loops. They directly manage actuators in gas, steam, and wind turbine applications.

Manufacturer: General Electric
Series: Mark VIe / Speedtronic
Category: Analog I/O Module (AE Bridge Interface)

Complete Technical Specifications

These modules support flexible output ranges to match various field devices. Furthermore, each board includes essential protection features for signal integrity. The IS210AEBIH1BED model adds Triple Modular Redundancy (TMR) support for fault-tolerant systems.

Functional Hardware Features

The IS210AEBIH1B board acts as a bridge between the main controller and field wiring. It supports up to 8 analog input channels and 4 analog output channels. A significant advantage is the high 1500 VAC isolation. This feature effectively prevents ground loops and noise interference. Consequently, your control system receives cleaner, more reliable data.

The IS210AEBIH1BED module uses a robust 4-layer PCB construction. It also features front-panel LED status indicators. These lights allow for quick visual diagnostics without a computer. You can check the board’s health instantly during routine maintenance rounds.

Redundancy and Environmental Resilience

Reliability remains the top priority for turbine control. The IS210AEBIH1BED variant supports simplex, duplex, and TMR architectures. This flexibility allows you to build a fully fault-tolerant system. If one module fails, another takes over seamlessly.

Additionally, the unit operates flawlessly in extreme conditions. It withstands 95% non-condensing humidity and wide temperature swings. This durability makes it suitable for outdoor enclosures and engine-mounted cabinets.

Integration and Compatibility

You must pair either module with a compatible Mark VIe backplane. Installation is straightforward thanks to the card’s standardized form factor. It connects directly to sensors like LVDTs, thermocouples, and vibration monitors. Use ToolboxST software (version V07.02 or higher) for configuration and diagnostics.

Summary

In short, the IS210AEBIH1B and IS210AEBIH1BED provide the necessary analog precision for safe turbine operation. Their combination of electrical isolation, redundancy support, and a wide temperature range ensures long service life. Order these original GE boards to maintain peak performance in your power generation assets.

​
