Product Overview

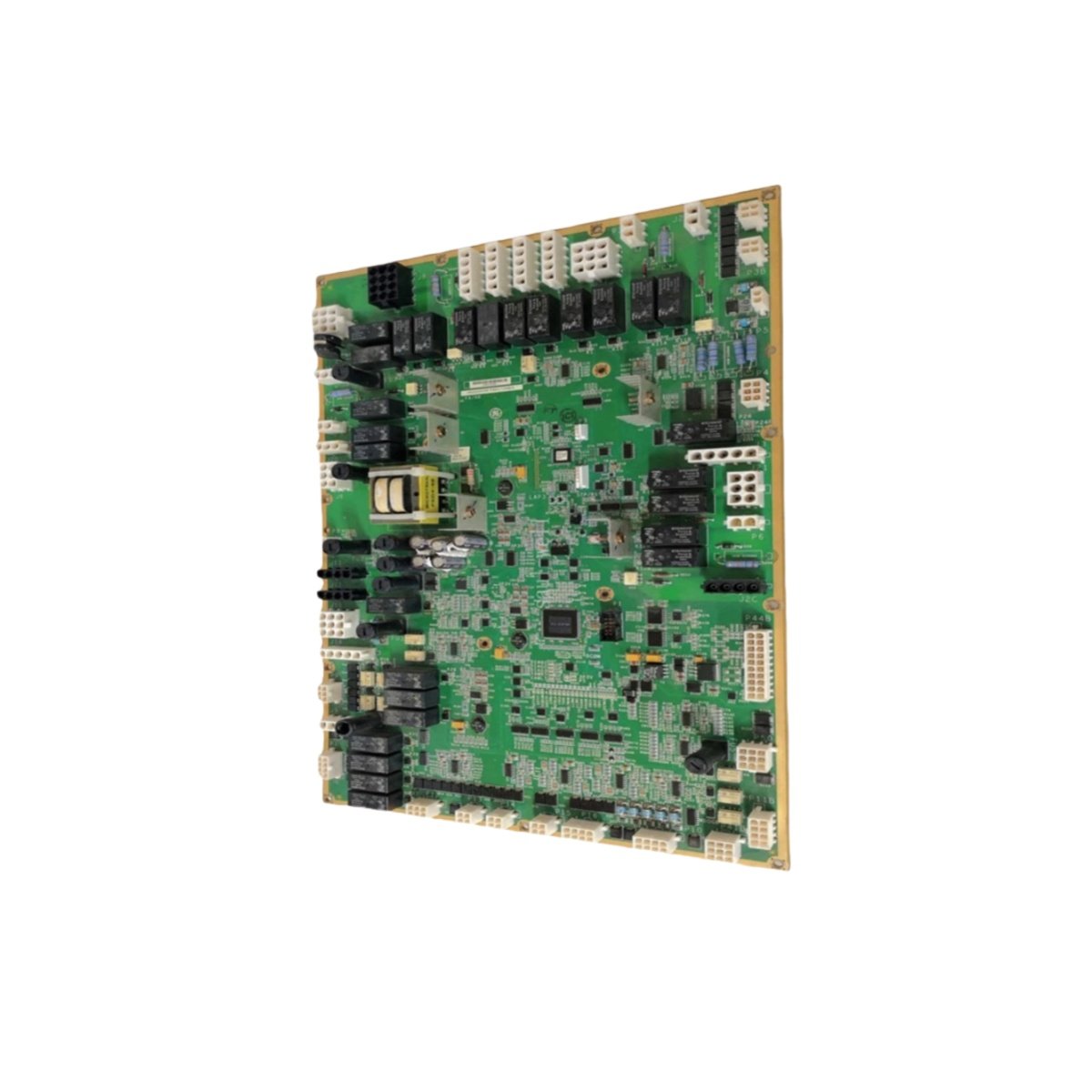

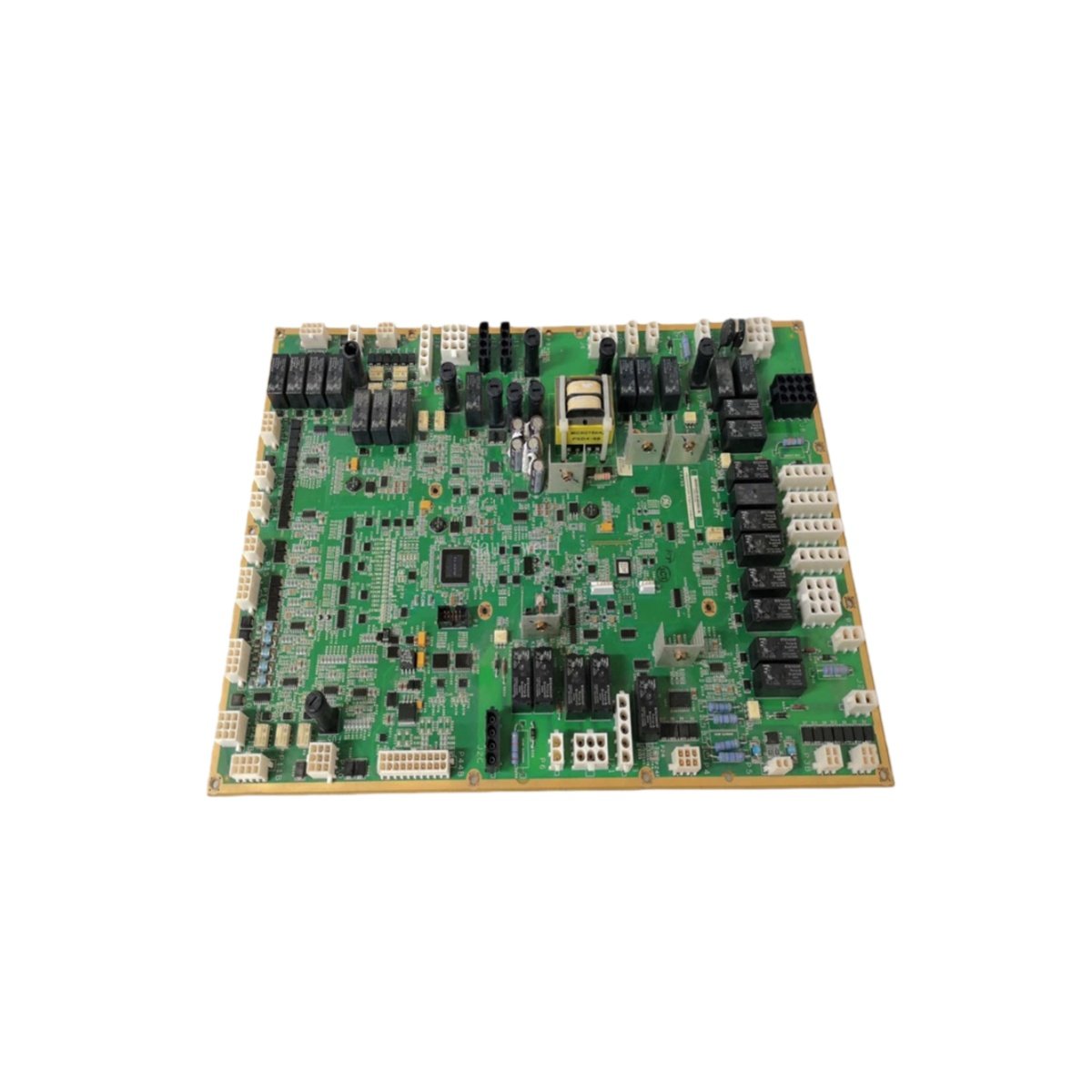

The GE IS200WETBJ1ABA functions as a printed circuit board assembly within General Electric’s Mark VIe series control systems. This PCB provides essential signal conditioning and interface capabilities for industrial automation and power generation applications. We engineered the IS200WETBJ1ABA to deliver reliable performance in demanding environments where precise control and monitoring matter most.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | IS200WETBJ1ABA |
| Product Type | Printed Circuit Board (PCB) |
| Series | Mark VIe Control System |
| Input Voltage | 28 VDC nominal (24-32 VDC range) |
| Power Consumption | 5 W typical |
| Signal Types | Analog and digital input/output |
| Analog Inputs | 4 channels, 0-10 VDC or 4-20 mA selectable |
| Analog Outputs | 2 channels, 0-10 VDC or 4-20 mA selectable |
| Digital Inputs | 8 channels, 24 VDC wet/dry contact |
| Digital Outputs | 4 channels, 24 VDC, 0.5 A each |
| Isolation | 1500 VAC field-to-logic |
| Board Layers | 8-layer, high-density interconnect |
| Board Material | FR-4 glass epoxy, UL 94V-0 |
| Dimensions (H x W x D) | 230 mm x 160 mm x 25 mm (approx.) |
| Weight | 0.35 kg (0.77 lbs) |
| Mounting | Rack-mounted in Mark VIe chassis |
| Connectors | 2 x 50-pin DIN 41612 backplane, 2 x 20-pin front I/O |
| LED Indicators | Power, module status, I/O status per channel |
| Operating Temperature | -30°C to 65°C (-22°F to 149°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Vibration Resistance | 2 g continuous, 5 g shock |
| Certifications | CE, UL, CSA, ATEX (Zone 2) |
Key Features and Benefits
Integrated Signal Processing: The IS200WETBJ1ABA handles both analog and digital signals within a single board. You connect field devices of various types without requiring multiple dedicated interface modules.
Versatile I/O Configuration: Each channel independently configures for different signal types and ranges. Consequently, you adapt to changing field device requirements without hardware modifications.
Rugged Industrial Construction: This PCB meets rigorous Mark VIe standards for temperature, vibration, and electrical noise. Therefore, it performs reliably in turbine control and power generation environments.
Hot-Swappable Design: The board supports insertion and removal while the system remains powered. You perform maintenance or replacement without shutting down critical processes.
Comprehensive Diagnostics: On-board intelligence monitors signal integrity and reports faults to the control system. You receive immediate alerts for wire breaks, out-of-range conditions, or module failures.
Detailed Functional Description
The primary function of the GE IS200WETBJ1ABA involves conditioning and routing signals between field devices and the Mark VIe controller. Specifically, it accepts analog signals from transmitters, thermocouples, or position sensors and converts them to digital values for the control system. Simultaneously, it receives digital commands from the controller and drives output relays or analog setpoints to actuators. The board performs signal filtering, linearization, and scaling to ensure accurate representation of process variables.
I/O Channel Details
We designed the IS200WETBJ1ABA with flexible I/O capabilities for diverse field connections:
| Channel Type | Quantity | Specifications |
|---|---|---|
| Analog Inputs | 4 | 0-10V, 4-20mA, 12-bit resolution, ±0.1% accuracy |
| Analog Outputs | 2 | 0-10V, 4-20mA, 10-bit resolution, ±0.5% accuracy |
| Digital Inputs | 8 | 24 VDC, sink/source selectable, optical isolation |
| Digital Outputs | 4 | 24 VDC, 0.5 A, short circuit protected |
Signal Conditioning and Isolation
The IS200WETBJ1ABA incorporates extensive signal conditioning for industrial environments:
Analog Input Filtering: Programmable low-pass filters eliminate high-frequency noise from measurements
Optical Isolation: 1500 VAC isolation protects control circuits from field transients
Surge Suppression: Transient voltage suppressors on all I/O lines prevent damage from lightning or switching surges
Reference Accuracy: Precision voltage reference ensures stable analog measurements across temperature
Installation and Configuration
Engineers install the IS200WETBJ1ABA directly into any Mark VIe I/O rack slot. The process involves:
Inserting the board into guided card guides until backplane connectors engage
Securing with front-panel locking screws
Connecting field wiring to front-panel terminal blocks
Configuring channel types and ranges via Mark VIe Toolbox software
Verifying proper communication and I/O operation
The board stores configuration in non-volatile memory, retaining settings through power cycles.
Mechanical Details
The GE IS200WETBJ1ABA features a rugged Eurocard format designed for Mark VIe systems. Its front panel provides:
Two 20-pin connectors for field wiring
LED indicators for power, module status, and per-channel I/O activity
Captive mounting screws for vibration resistance
Ejector handles for easy insertion and removal
Label area for module identification
The board includes a metal shield for electromagnetic compatibility in high-noise environments.
Compatibility Information
The IS200WETBJ1ABA integrates with the following GE systems:
Mark VIe turbine control systems
Mark VIeS safety systems
EX2100 excitation control systems
Mark VIe distributed I/O networks
Common Industrial Applications
The GE IS200WETBJ1ABA serves critical functions across power generation and industrial applications:
| Application Area | Typical Use Case |
|---|---|
| Gas Turbines | Monitoring bearing temperatures and controlling fuel valves |
| Steam Turbines | Reading vibration probes and positioning governor valves |
| Generators | Sensing winding temperatures and controlling excitation |
| Balance of Plant | Monitoring auxiliary systems and starting pumps |
| Compressor Stations | Reading suction/discharge pressures and controlling recycle valves |
| Industrial Boilers | Monitoring drum levels and controlling firing rate |
Why Choose This Board?
Selecting the GE IS200WETBJ1ABA means choosing a reliable, versatile I/O solution for your Mark VIe control system. You handle multiple signal types with a single board, simplifying spares management and reducing rack space requirements. The rugged construction withstands the harsh conditions of turbine halls and power plants, ensuring long-term reliability. Hot-swappable capability allows maintenance without process interruption, maximizing plant availability. With comprehensive diagnostics and per-channel configuration, this board adapts to your specific application needs. For Mark VIe systems requiring dependable signal interface, the IS200WETBJ1ABA delivers the performance and quality you expect from GE.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
