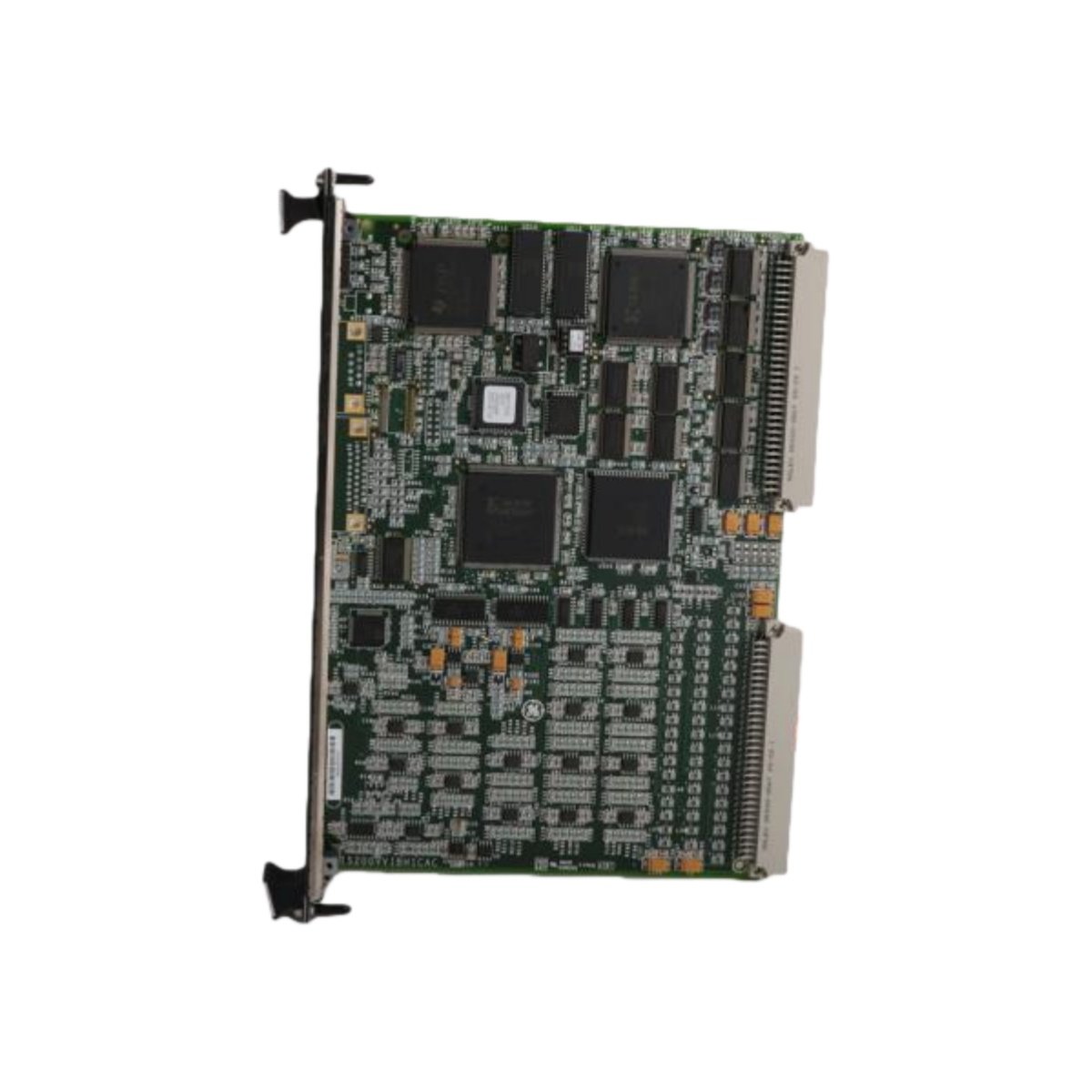

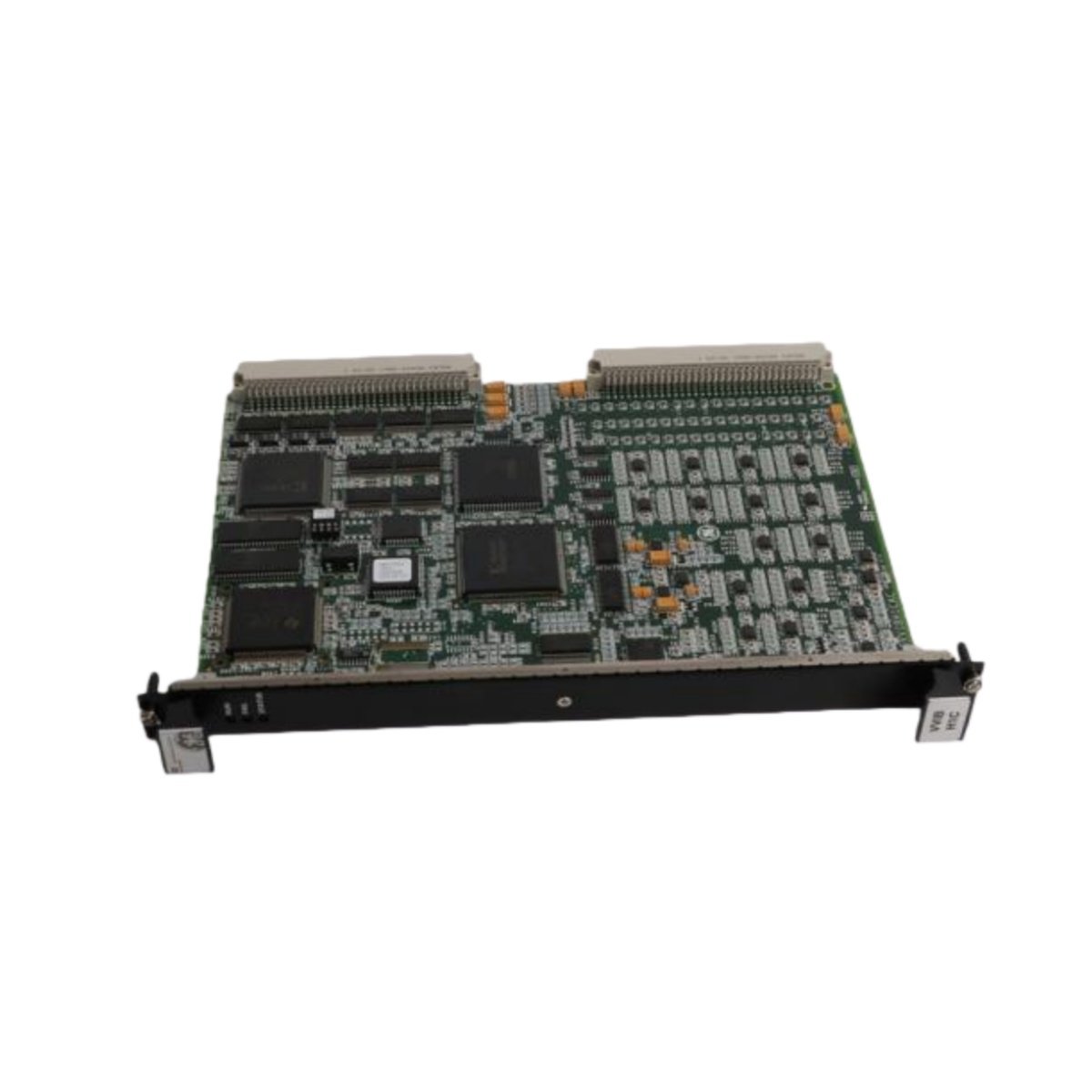

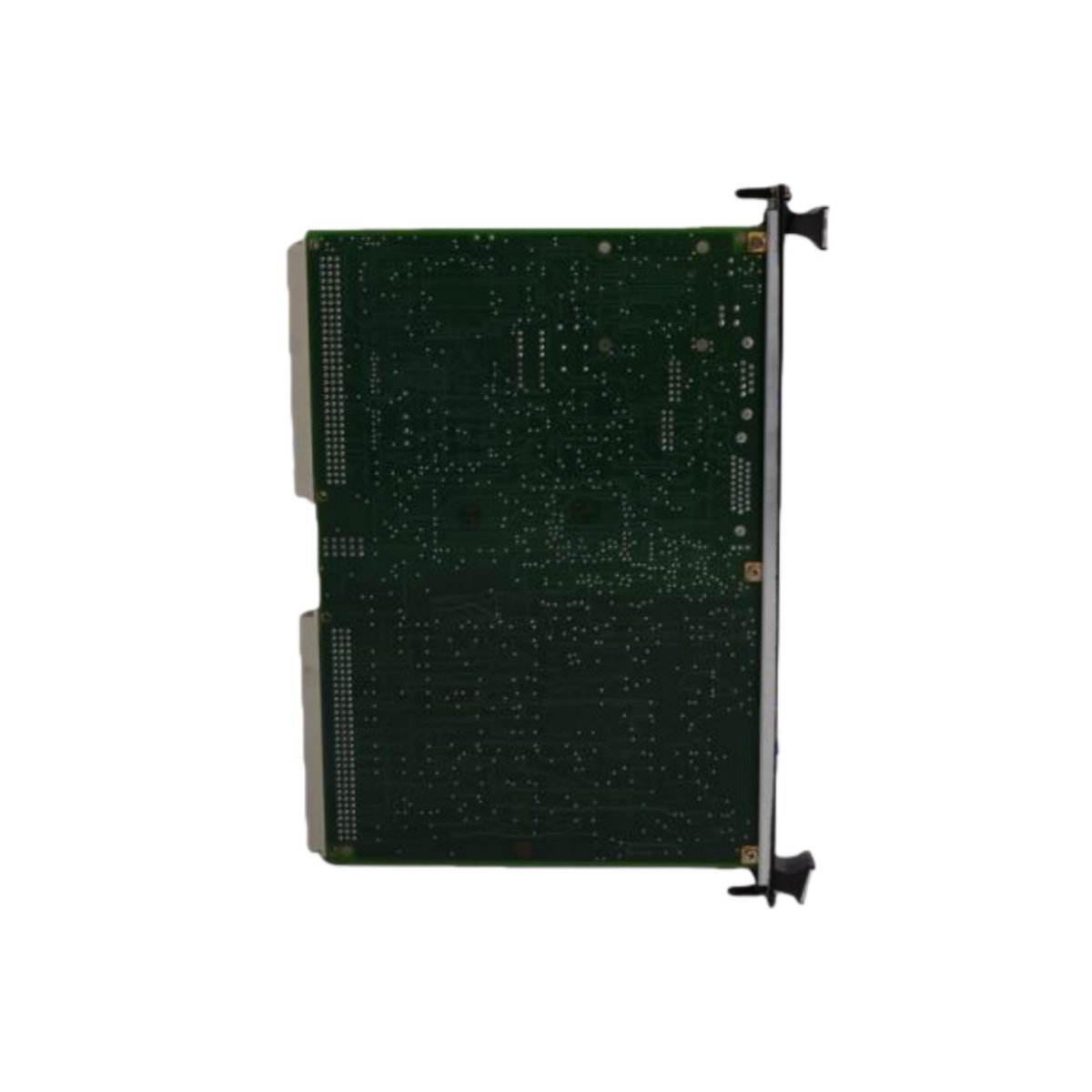

The GE IS200VVIBH1CAB (or IS200VVIBH1C) is a specialized VMEbus vibration monitoring board. This critical component acquires and processes vibration signals from machinery sensors. Moreover, it provides essential data for predictive maintenance and equipment protection in industrial systems.

Core Functionality for Machinery Health

This board interfaces directly with vibration transducers, such as the PR6423/128-110. It conditions the raw sensor signals and converts them into usable digital data. Consequently, control systems can monitor machine health and trigger alarms for excessive vibration levels.

Detailed Technical Specifications

The IS200VVIBH1CAB integrates high-precision analog and digital circuitry on a single VME card. Below are its detailed technical parameters for system design and integration.

Technical Specifications:

• Manufacturer & Model: GE IS200VVIBH1CAB / IS200VVIBH1C

• Product Series: Mark VI or similar GE Turbine/Control System

• Category: Vibration Monitoring Board, VMEbus I/O Module

• Primary Function: Multi-channel vibration signal acquisition and processing

• Form Factor: Standard single-slot 6U VMEbus card

• Bus Interface: VMEbus (VERSAbus-Eurocard) for system communication

• Number of Channels: Typically supports multiple vibration input channels

• Input Type: Accepts signals from velocity sensors or accelerometers (e.g., 4-20mA, mV)

• Signal Conditioning: Includes programmable gain amplifiers and anti-aliasing filters

• A/D Conversion: High-resolution analog-to-digital converter for precise measurement

• Processor: On-board DSP or microprocessor for real-time signal processing

• Dimensions: Standard 6U VME card: 233.35 mm x 160 mm (9.2″ x 6.3″)

• Weight: Approximately 0.5 kg (1.1 lbs), varies with components

• Electrical Interface: Front-panel or internal connectors for sensor cabling

• Internal Components: Multi-layer PCB with A/D converters, DSP, memory, and support ICs

• Power Consumption: Draws power from the VME backplane (+5V, ±12V)

• Operating Temperature: Rated for industrial control room environments (e.g., 0 to 60°C)

System Integration and Protective Applications

The IS200VVIBH1CAB is vital for gas and steam turbine control, compressor monitoring, and other critical machinery. It feeds processed vibration data to the system’s main controller, such as a IS200AEBMG1AFB module. This data is crucial for avoiding catastrophic failures and enabling condition-based maintenance. The board often operates within comprehensive protection schemes that include devices like the RMS-TSG-TZ-C Static Trip unit.
