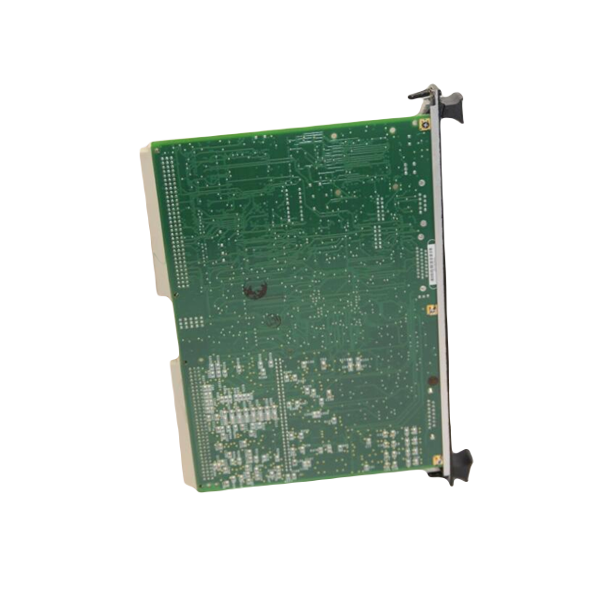

The GE IS200VTURH1BAC Mark VI board provides reliable turbine protection by controlling three primary overspeed trip relays. Moreover, it ensures system safety by generating trip signals sent to the VTUR module and TRPx terminal board. These signals can activate emergency solenoids either directly or via the VPRO board in the Mark VI system.

Key Features

• Primary Turbine Protection: Controls trip relays to safeguard turbine operation.
• Flexible System Support: Compatible with Simplex and TMR (Triple Modular Redundant) configurations.
• High Accuracy: MPU pulse rate accuracy ensures precise monitoring and trip activation.
• Industrial Reliability: Designed for continuous operation in high-demand environments.

System Configurations

• Simplex System: Utilizes 9 relays to manage trip control.
• TMR System: Uses 3 relays for trip control, enhancing reliability through redundancy.

Technical Specifications

Applications

• Turbine Overspeed Protection: Activates emergency trip solenoids when overspeed conditions occur.
• Critical Industrial Systems: Suitable for power generation, turbine monitoring, and other high-reliability applications.
• Mark VI System Integration: Works seamlessly with other IS200 series boards to provide complete turbine protection.

FAQ

Q1: Can this board work in both Simplex and TMR systems?
Yes, it supports Simplex with 9 relays and TMR with 3 relays for redundant trip control.

Q2: How accurate is the MPU pulse rate measurement?
The MPU pulse rate accuracy is ±0.05% of the reading, ensuring precise trip activation.

Q3: How many trip solenoids does this board control?
It controls three primary overspeed trip solenoids.

Q4: Which boards are compatible with the IS200VTURH1BAC?
This board works with TRPG, TRPL, TREG, and TRPS boards within the Mark VI system.
