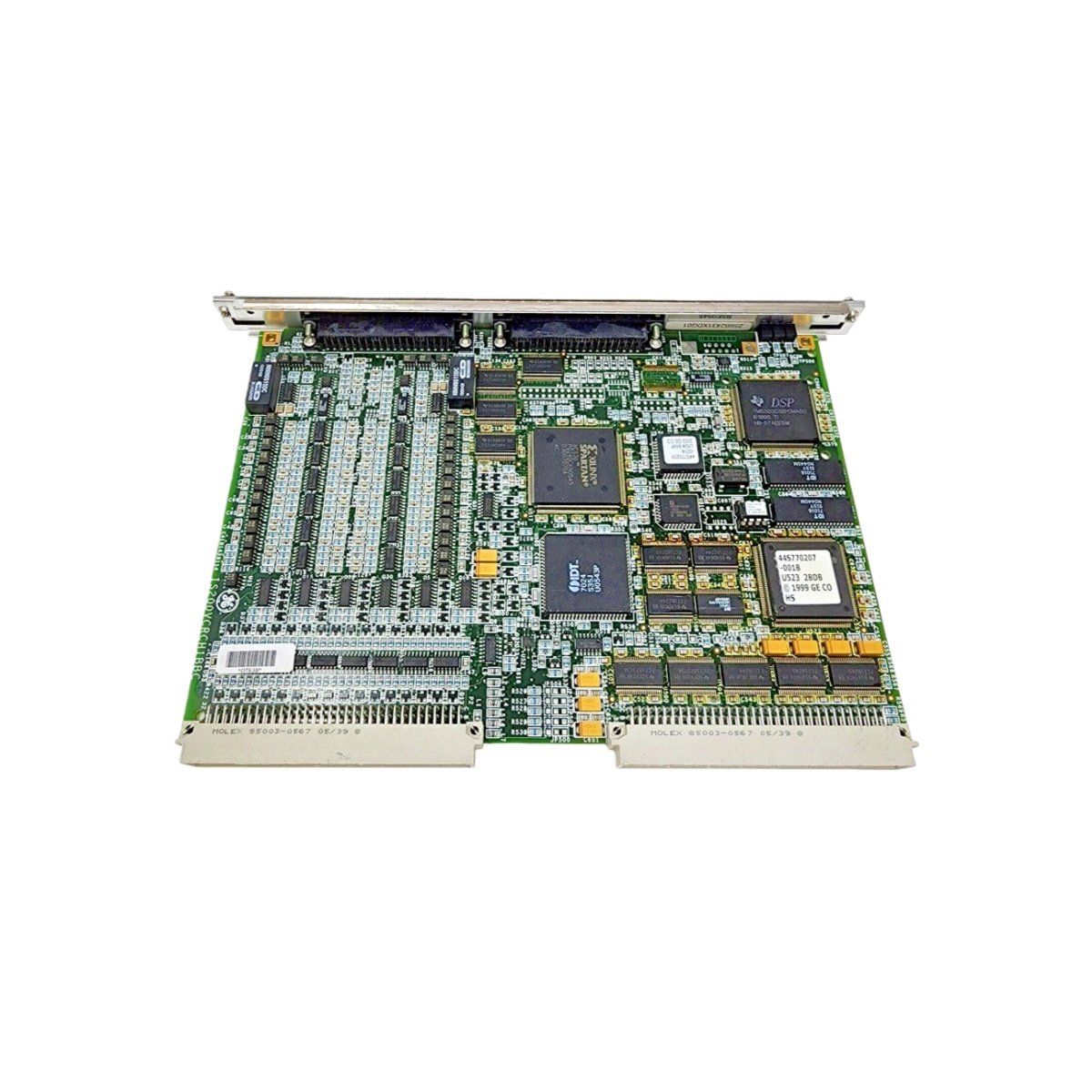

The GE IS200VCRCH1BBC Discrete I/O Board manages digital signals for industrial controllers. This unit weighs 0.52 kg and measures 18.0 cm x 12.5 cm x 3.8 cm. It provides 32 discrete input channels and 32 discrete output channels. The board contains one logic processor and 64 opto-isolators. For energy storage, it includes four 100µF electrolytic capacitors. Consequently, the GE IS200VCRCH1BBC maintains I/O states during brief power interruptions.
Technical Specifications
The table below lists all verified parameters for the GE IS200VCRCH1BBC. Use this data for your system integration planning.
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200VCRCH1BBC |
| Category | Discrete I/O Board |
| Weight | 0.52 kg |
| Dimensions (L x W x H) | 18.0 cm x 12.5 cm x 3.8 cm |
| Input Channels | 32 discrete inputs |
| Output Channels | 32 discrete outputs |
| Connector Type | 2x 50-pin D-sub connectors |
| Onboard Components | 1 processor, 64 opto-isolators |
| Input Voltage Range | 12V to 24V DC |
| Output Voltage | 24V DC |
| Output Current per Channel | 0.5 A (maximum) |
| Total Output Current | 8 A (maximum) |
| Energy Storage | 4x 100µF electrolytic capacitors |
| Total Capacitance | 400µF |
| Response Time (Input) | 1 millisecond |
| Response Time (Output) | 0.5 milliseconds |
| Isolation Voltage | 2500V RMS (field to logic) |
| Operating Temperature | -20°C to +65°C |
Input Channel Features
Each of the 32 input channels uses a dedicated opto-isolator. The GE IS200VCRCH1BBC accepts 12V to 24V DC signals from field devices. Therefore, you can connect sensors, switches, and push buttons directly. The input response time reaches just 1 millisecond. Thus, this board captures fast digital events accurately.
Output Channel Features
The 32 output channels each provide 24V DC at 0.5 A maximum. Each output also includes a separate opto-isolator for protection. Consequently, a short on one output will not damage the processor. The output response time stays under 0.5 milliseconds. The GE IS200VCRCH1BBC can drive solenoids, relays, and indicator lamps easily.
Power and Energy Storage
This discrete I/O board requires a 5V DC supply at 300 mA for logic. Additionally, it needs a separate 24V DC supply at 50 mA for field power. Hence, the total logic power equals 1.5W. The four 100µF capacitors provide 12 milliseconds of hold-up time. This short backup protects I/O states during minor voltage sags.
Installation and Connectivity
You can mount the GE IS200VCRCH1BBC on a standard DIN rail. Alternatively, secure it with M4 screws through its four corners. The two 50-pin D-sub connectors handle all input and output wiring. For reliable operation, use shielded cables for long signal runs. The GE IS200VCRCH1BBC works seamlessly with the RMS-TSG-TZ-C static trip unit.
Environmental Durability
This discrete I/O board operates reliably from -20°C to +65°C. It also withstands 95% relative humidity without condensation. The board survives vibration up to 2g from 10 to 500 Hz. Therefore, the GE IS200VCRCH1BBC suits most industrial automation systems perfectly.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
