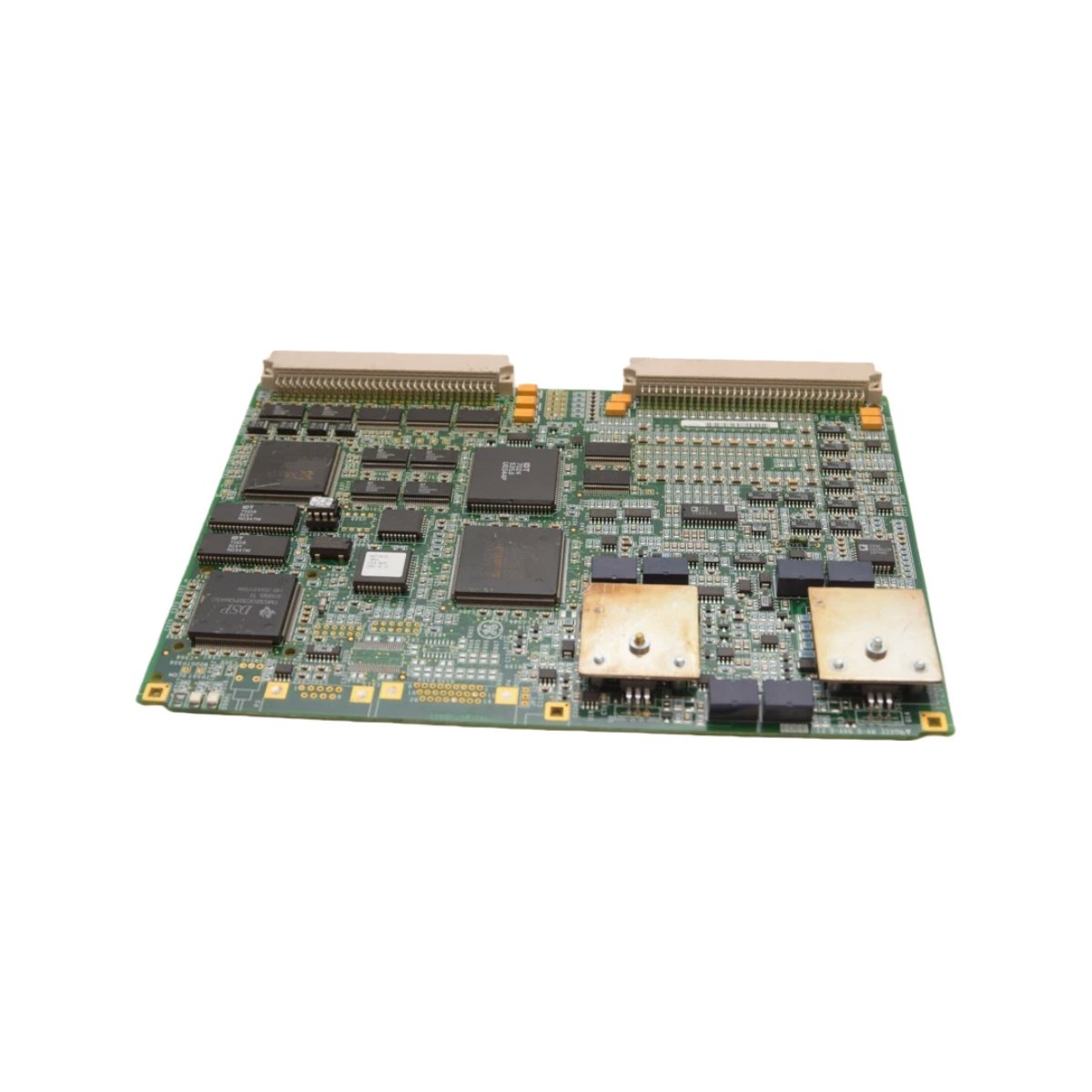

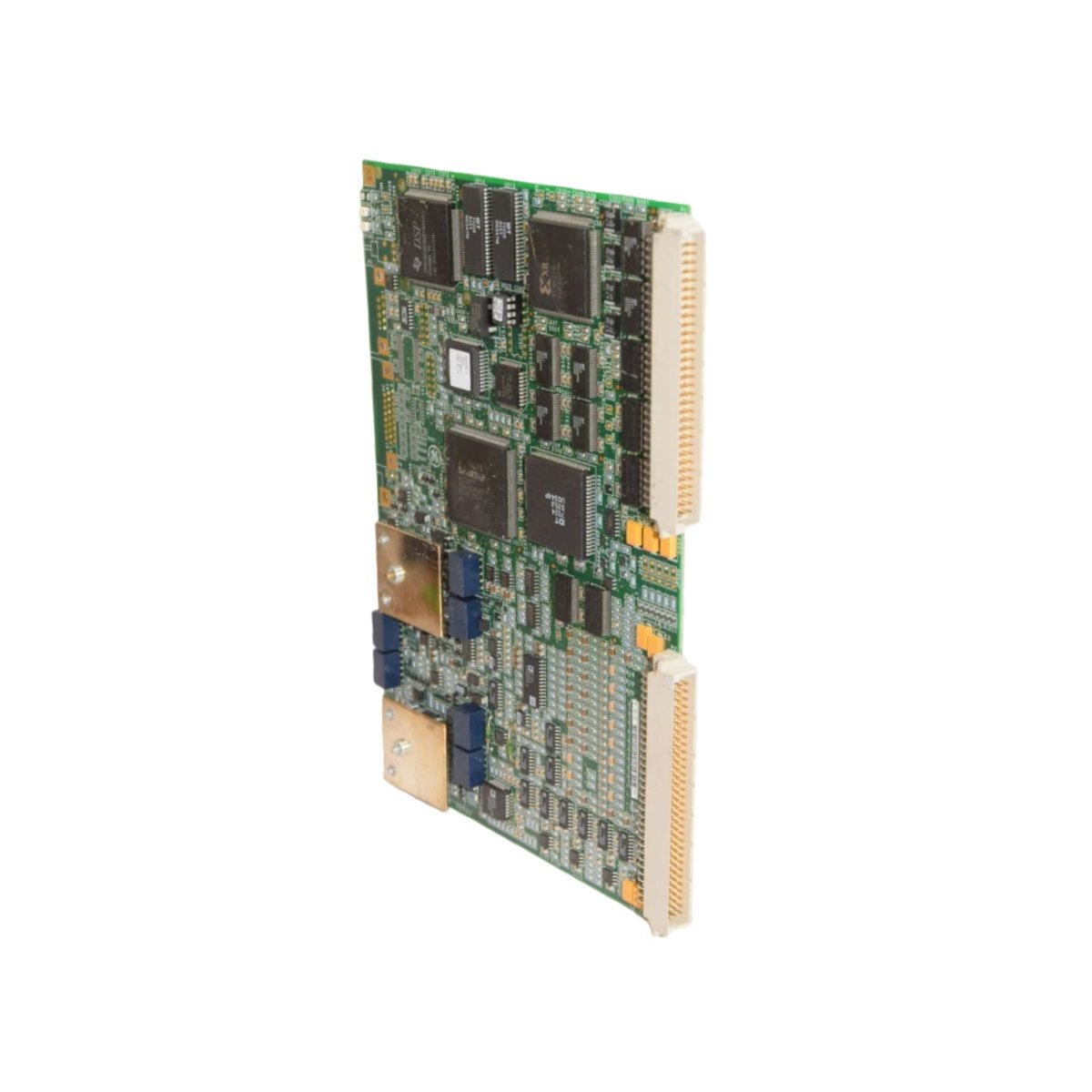

The IS200VAICH1DAA IS200VAICH1D functions as a high-performance analog input card for the Mark VI Speedtronic turbine control system. General Electric designed this module to convert field sensor signals into digital data for the main controller. Engineers rely on this card to monitor critical parameters like temperature, pressure, and vibration accurately. Consequently, the IS200VAICH1DAA ensures the turbine operates within safe parameters at all times.

Core Signal Conversion Architecture

The IS200VAICH1DAA IS200VAICH1D variant shares the same robust architecture as the IS200VAICH1DAA, providing consistent performance across applications. This analog input card incorporates multiple channels with individual signal conditioning circuits for each input. High-resolution analog-to-digital converters transform incoming sensor signals into precise digital representations. Additionally, the module includes filtering circuits to remove electrical noise from field wiring. Such careful design ensures the control system receives clean, accurate data for processing.

Technical Specifications and Physical Attributes

Understanding the exact specifications of the IS200VAICH1DAA ensures proper integration into existing Mark VI systems. The card’s rugged construction withstands the harsh conditions typical of turbine control environments. Below you will find a detailed breakdown of its physical and electrical characteristics:

Input Characteristics and Channel Configuration

The IS200VAICH1DAA IS200VAICH1D accepts various analog signal types from field sensors and transmitters throughout the turbine system. Each input channel includes programmable gain amplifiers to accommodate different signal levels. The card automatically scales these signals for consistent representation in engineering units. Users can configure each channel individually for specific sensor types and ranges. This flexibility allows the IS200VAICH1D to support multiple applications with a single hardware platform.

Integration with Mark VI Turbine Control Systems

Within the GE Mark VI architecture, the IS200VAICH1DAA connects directly to the control network for seamless data exchange. It communicates with the main processor through the VME backplane at high speeds. The card’s firmware handles all signal conversion tasks without burdening the main controller. This distributed intelligence approach improves overall system response times significantly. Therefore, the IS200VAICH1DAA enhances the Mark VI system’s ability to execute critical control algorithms.

Reliability in Power Generation Applications

The IS200VAICH1DAA IS200VAICH1D undergoes extensive testing to meet GE’s stringent standards for industrial durability. It suits various applications including gas turbine control and steam turbine monitoring in utility plants. The card’s design incorporates isolation barriers to protect sensitive electronics from field transients. For facilities operating legacy Speedtronic Mark VI systems, this module provides a reliable replacement option. Its availability helps extend the operational life of critical turbine assets without requiring a full system migration.
