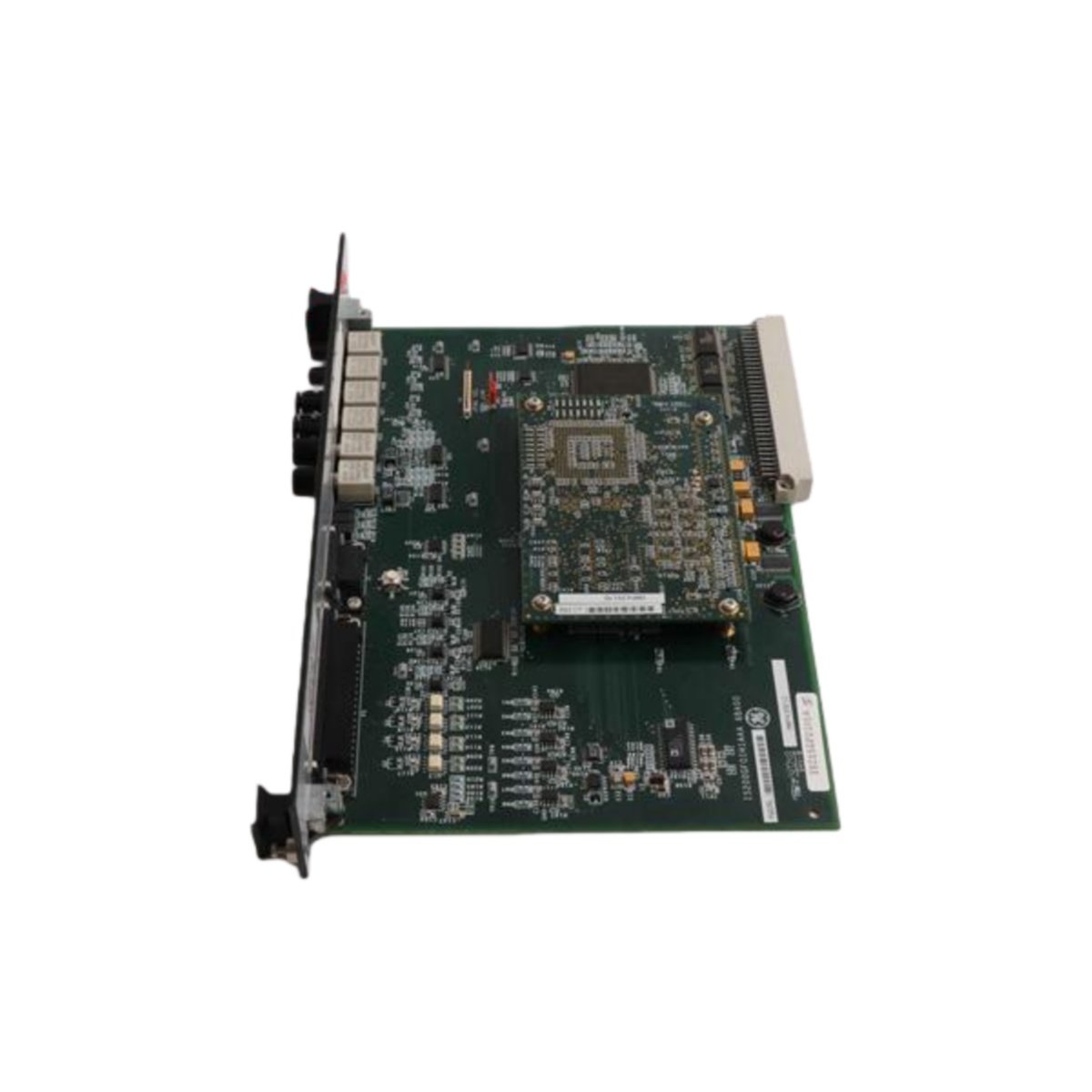

The GE IS200TRPGH2B functions as a critical Primary Trip Terminal Board within the Mark VIe turbine control system. This module provides secure termination points for emergency shutdown and protection circuits. It therefore ensures reliable execution of trip functions for turbomachinery applications.
Key Technical Specifications
We engineered the GE IS200TRPGH2B to deliver fail-safe operation for critical turbine protection systems. Its robust design prioritizes signal integrity and electrical isolation for maximum reliability.
| Parameter | Specification |
|---|---|
| Product Type | Primary Trip Terminal Board |
| Series | Mark VIe Control System |
| Function | Trip circuit termination and conditioning |
| Trip Channels | Multiple redundant trip circuits |
| Termination Points | Screw terminal blocks for field wiring |
| Interface Type | Backplane connector to main control |
| Isolation Rating | Channel-to-channel and system isolation |
| Mounting Style | Panel mount within control cabinet |
| Dimensions (Height) | Standard Mark VIe board height |
| Dimensions (Width) | Full-size termination board width |
| Dimensions (Depth) | Standard board depth with terminal access |
| Weight | Lightweight PCB construction |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP20 (requires enclosure installation) |
| Vibration Resistance | Designed for turbine environment |
| RoHS Compliance | Compliant with applicable directives |
Trip Circuit Functionality
The GE IS200TRPGH2B interfaces directly with turbine emergency shutdown sensors and actuators. It conditions all trip signals before routing them to the safety control system. This board consequently enables rapid response to overspeed, over-temperature, or vibration events.
Termination and Wiring Features
The GE IS200TRPGH2B provides clearly marked termination points for straightforward field wiring connections. Each terminal accommodates standard industrial wire gauges for secure installations. The board’s layout simplifies troubleshooting during routine maintenance activities.
Installation and Integration Details
The GE IS200TRPGH2B features standardized dimensions for direct replacement in existing Mark VIe cabinets. Its high-density backplane connector ensures reliable communication with the main control module. The board mounts securely within vibration-prone turbine environments.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
