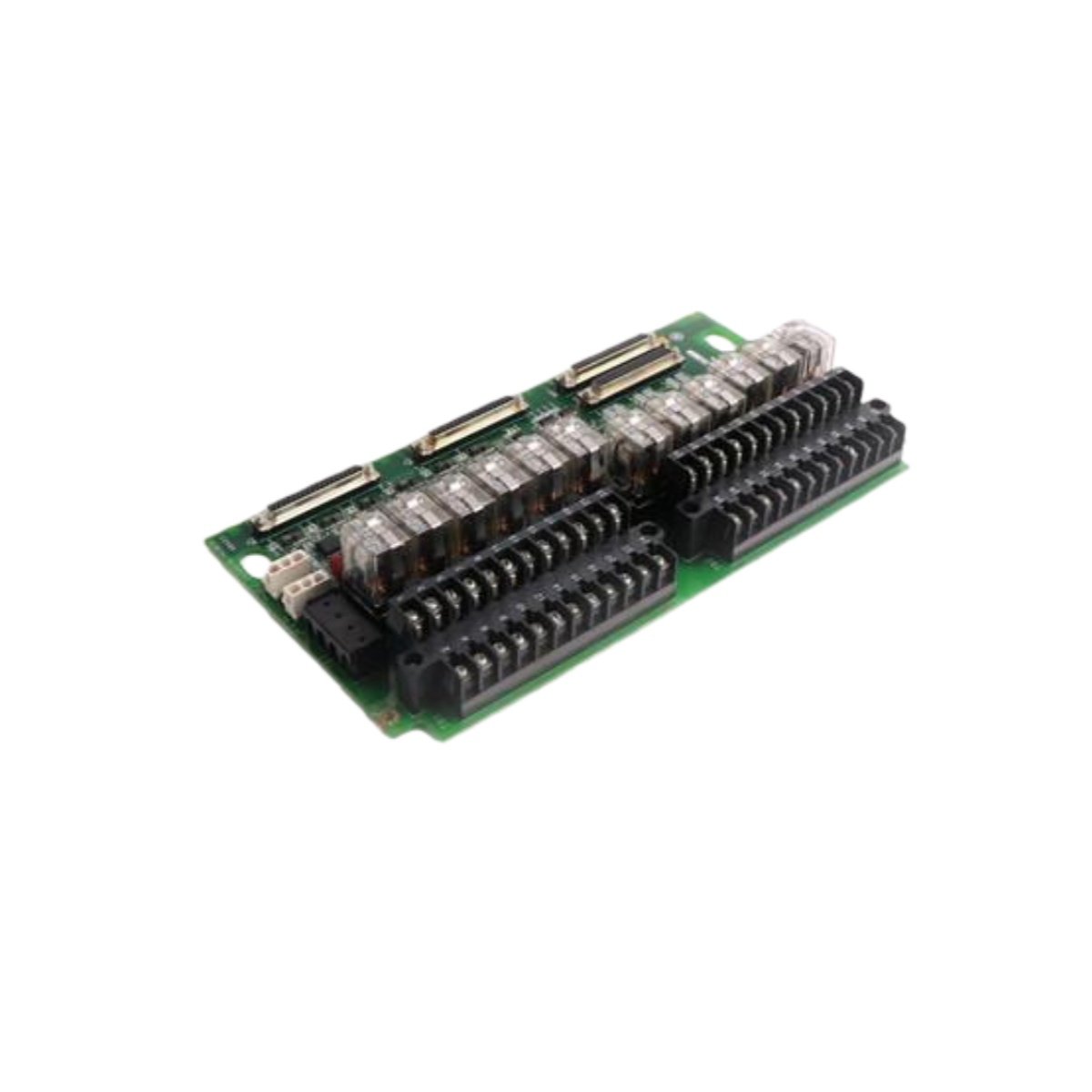

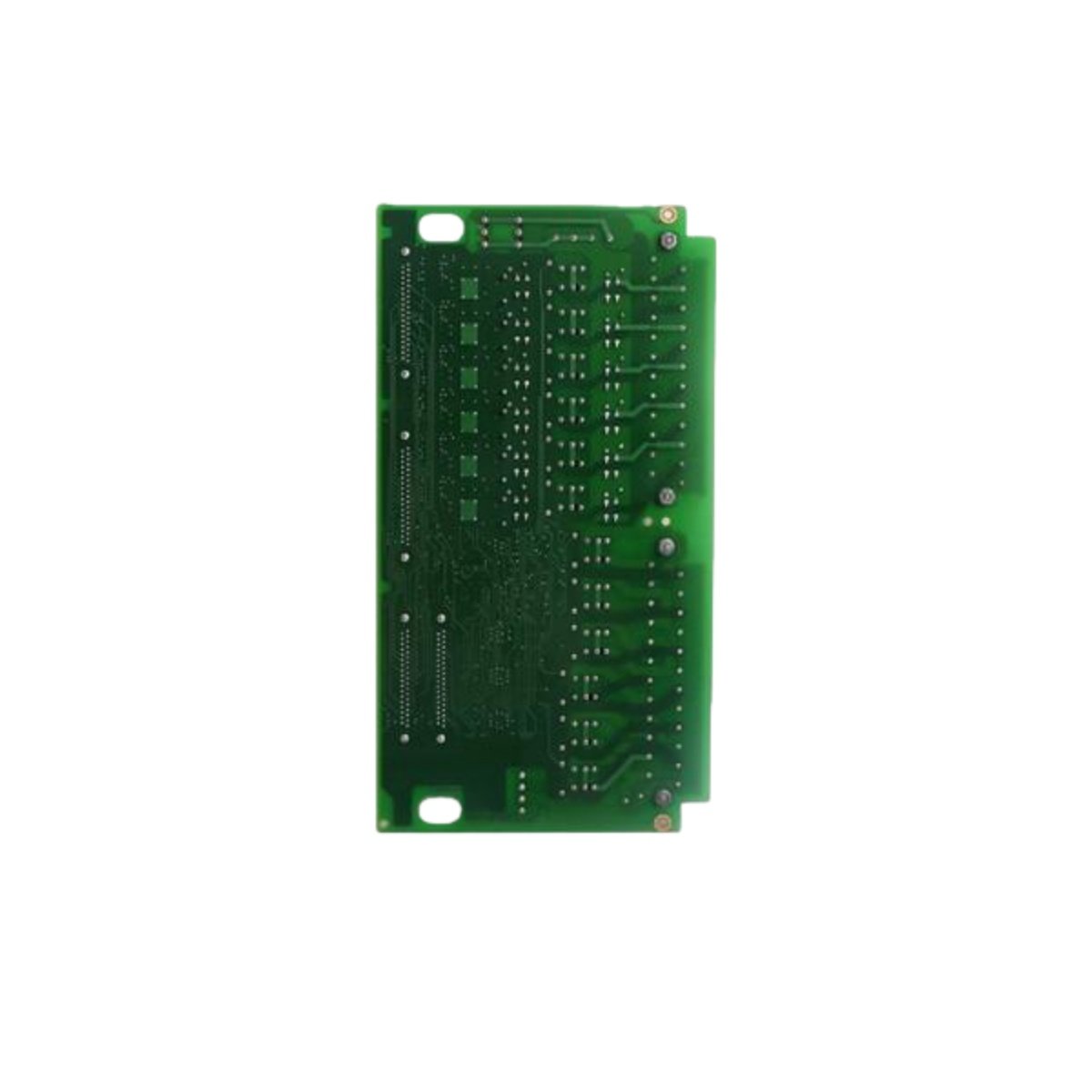

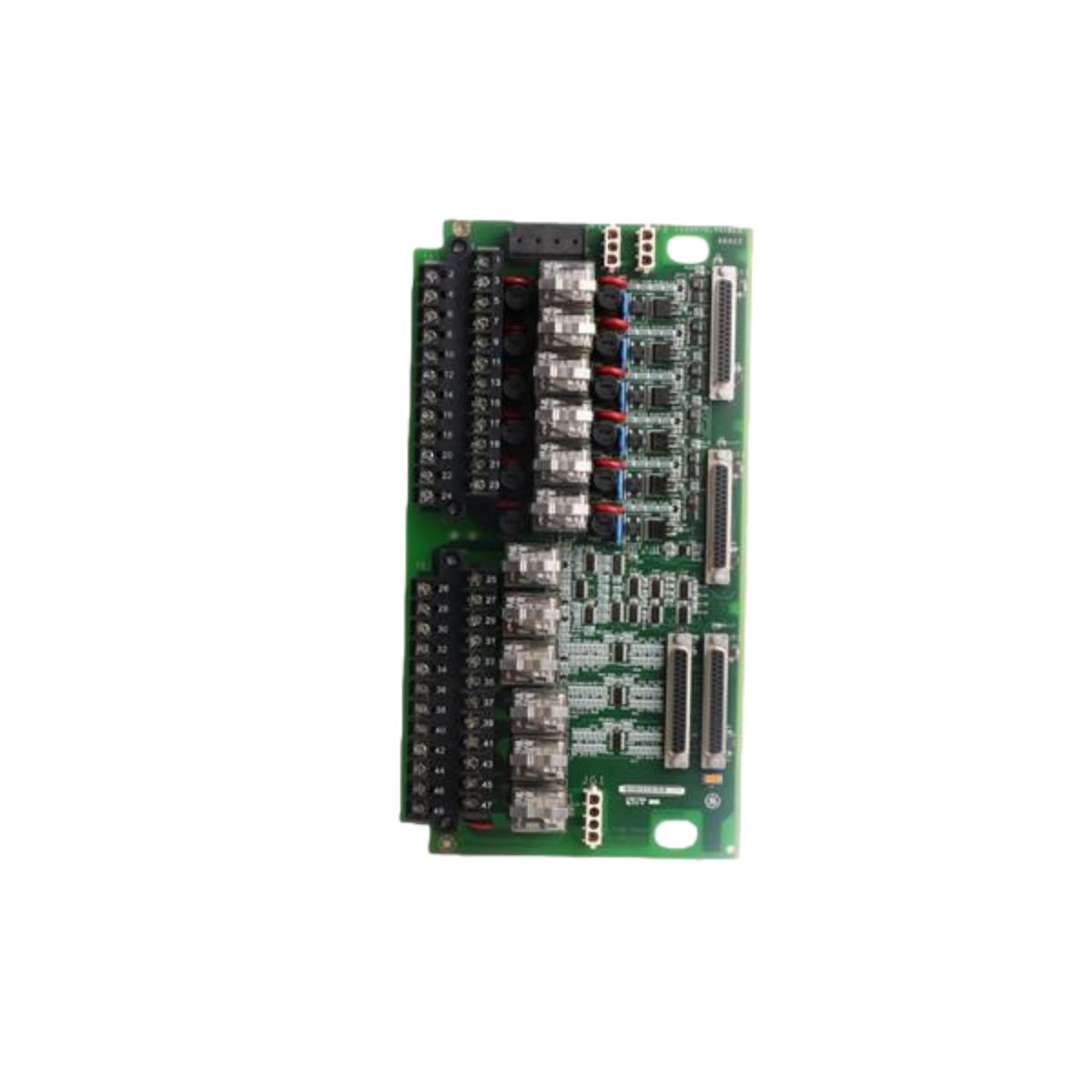

The IS200TRLYH1B from GE Fanuc Emerson functions as a dedicated relay output terminal board for the Mark VI control system. Engineers use this module to interface turbine control signals with external field devices reliably. It provides dry contact outputs for driving auxiliary equipment and indicators. This board forms an essential component of the Speedtronic Mark VI turbine control platform.

Core Hardware Architecture and Physical Design

This terminal board features a rugged construction designed specifically for turbine control environments. The unit mounts securely within Mark VI panels using standard DIN rail or direct mounting methods. Its compact form factor measures approximately 200 mm x 150 mm x 50 mm. Additionally, the board includes clearly labeled terminal blocks for simplified field wiring.

Relay Output Configuration and Electrical Ratings

The IS200TRLYH1B provides multiple relay output channels using industrial-grade electromechanical relays. Each relay features Form C (SPDT) contacts for maximum wiring flexibility. The contacts support switching voltages up to 250 VAC or 30 VDC safely. Furthermore, each channel handles continuous currents up to 5 Amps for direct load control.

Isolation and Protection Features

Each output channel includes optical isolation to protect the Mark VI backplane from transients. This isolation prevents ground loops and protects sensitive control electronics effectively. The IS200TRLYH1B also incorporates snubber circuits for inductive load switching. Consequently, it extends relay contact life significantly in demanding applications.

Technical Specifications

Installation and Integration Benefits

The IS200TRLYH1B connects directly to Mark VI I/O modules through pre-wired cables. Its screw terminal blocks simplify field wiring and maintenance access significantly. Users can mount this board locally near field devices for reduced wiring runs. Therefore, it offers reliable interface between the turbine controller and auxiliary equipment.
