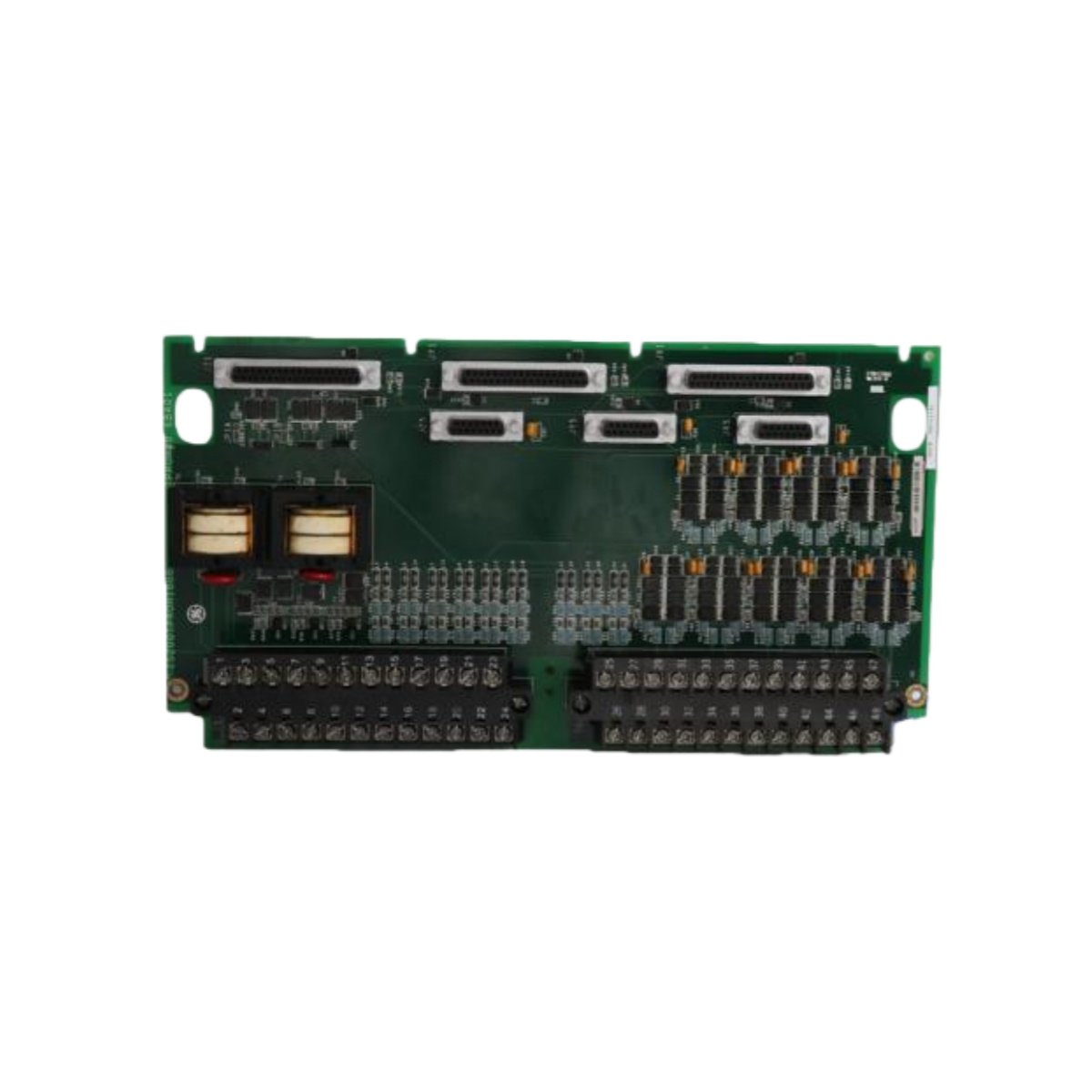

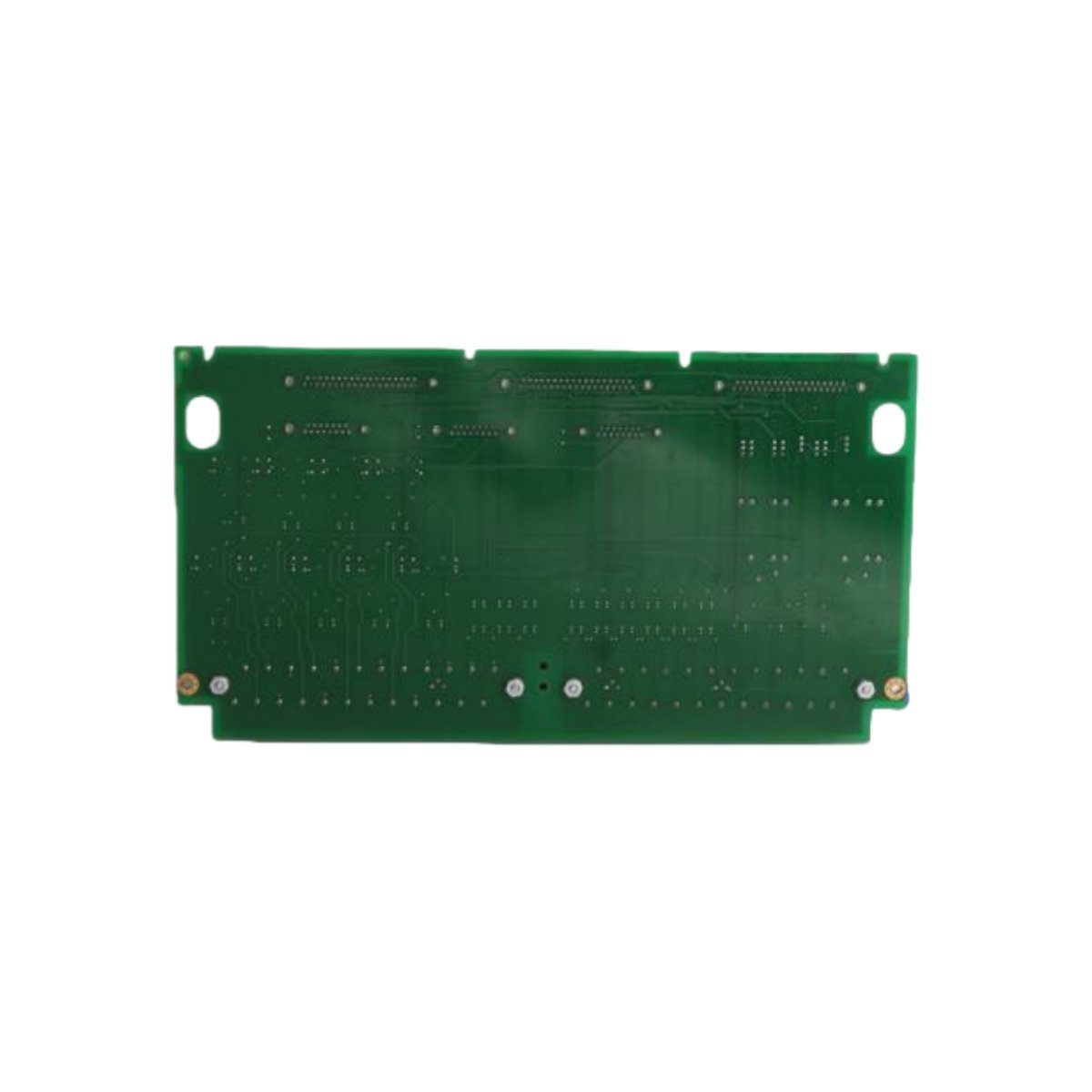

The GE IS200TPROH1B serves as a critical Protective Termination Board within the Mark VIe control system platform. This module provides essential signal conditioning and termination points for field wiring connections. It therefore ensures reliable interfacing between turbine sensors and the main control hardware.
Key Technical Specifications
We engineered the GE IS200TPROH1B to deliver robust signal termination for demanding turbomachinery applications. Its design prioritizes electrical isolation and noise immunity for accurate data transmission.
| Parameter | Specification |
|---|---|
| Product Type | Protective Termination Board |
| Series | Mark VIe Control System |
| Function | Signal termination and conditioning |
| Input Channels | Multiple dedicated protective circuits |
| Termination Points | Screw terminal blocks for field wiring |
| Interface Type | Backplane connector to main control module |
| Isolation Rating | Channel-to-channel and channel-to-ground isolation |
| Mounting Style | Panel mount within control cabinet |
| Dimensions (Height) | Standard Mark VIe board height |
| Dimensions (Width) | Full-size termination board width |
| Dimensions (Depth) | Standard board depth with terminal access |
| Weight | Lightweight PCB construction |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP20 (requires enclosure installation) |
| RoHS Compliance | Compliant with applicable directives |
Functional Characteristics
The GE IS200TPROH1B interfaces directly with turbine protection sensors for critical machinery monitoring. It conditions raw sensor signals before transmission to the main control processor. This board consequently enables accurate detection of overspeed, vibration, and temperature anomalies.
Installation and Integration
The GE IS200TPROH1B features clearly labeled termination points for straightforward field wiring connections. Its standardized dimensions allow direct replacement in existing Mark VIe cabinets. The board connects via a high-density backplane connector for reliable data transfer.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
